Hydraulic Cylinder 5.0" inch Bore 25 Tons Force at 3,000 psi Aussie Made
Product Details
Brand: QMN
Weight: 27.50 kg

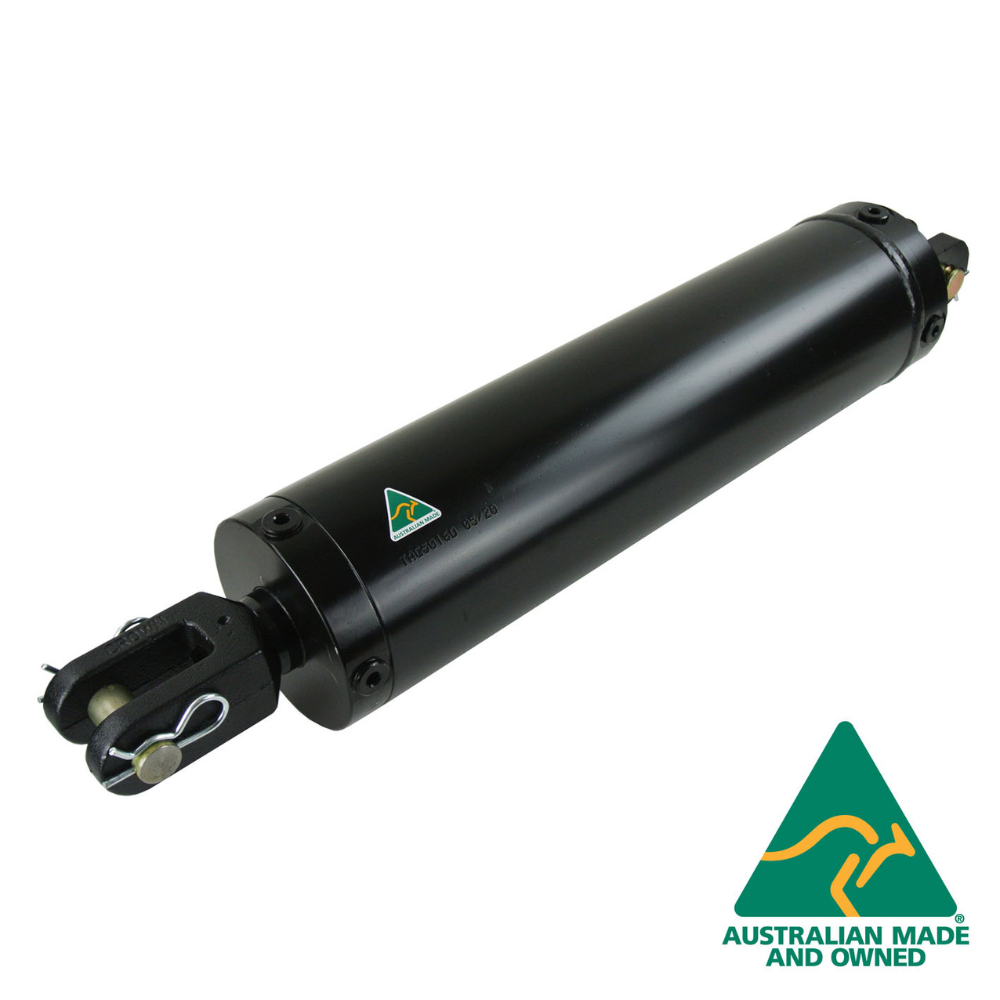

Hydraulic Cylinder with 5 inch Bore and 2" diameter Rod produces 25 Tons Force at 3,000 psi (200 bar)
Double acting Hydraulic Cylinder or Ram Made in AUSTRALIA. Designed for high force hydraulic applications e.g. Cranes. Hook Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and super duty Log Splitters.
26 tonnes @ 3000 Psi (200 bar)
Robust Construction with Precise Tolerances designed for use day in and day out in Australia's harshest conditions.
Each Cylinder is individually Oil Tested at the Factory and comes complete with a Female Clevis at each end.
2 year warranty
WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

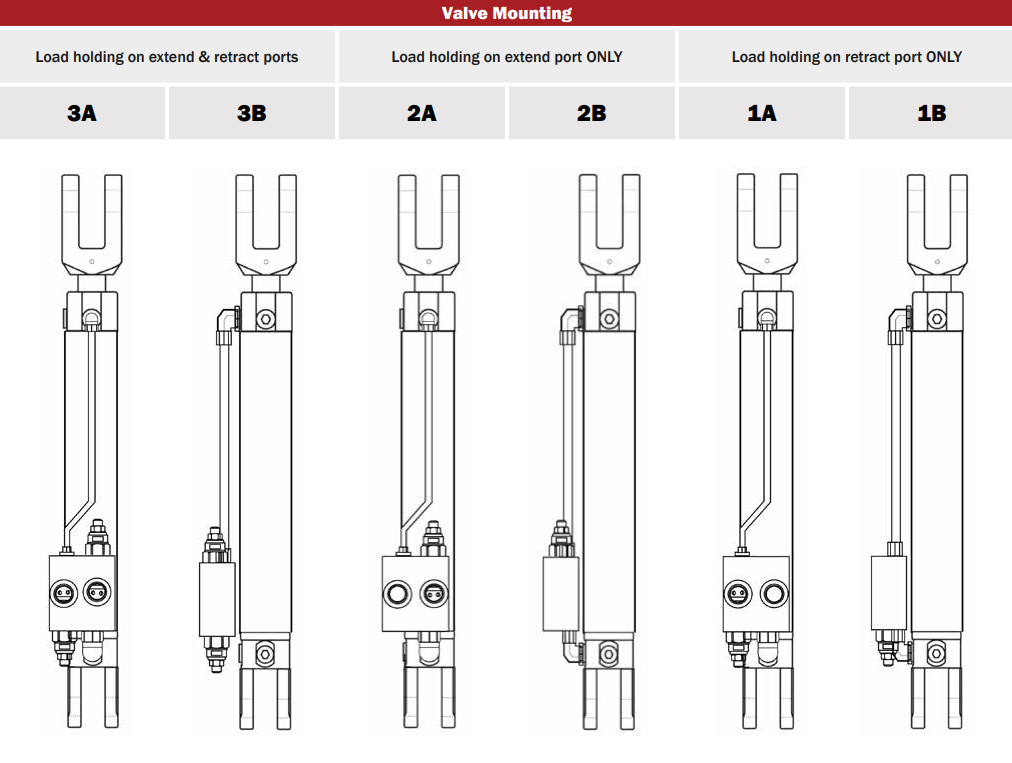

Click Here for added Safety and Control to your Hydraulic Cylinder with a Counterbalance Valve and Pipe (Factory installed when ordered with a cylinder) Or... Order Directly from this Listing (please see options list)
Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.
The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.
- The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
- For horizontal or operating in an arc these values may have to be reduced.
1 kN = 102 kg force = 225 lb force
1 bar = 14.5 psi
Maximum Extension Force in Metric Tons
| Cylinder Stroke in Inches |
8 | 10 | 12 | 16 | 18 | 20 | 24 | 30 | 36 | 42 | 48 | Maximum Retraction Force |
|
| Bore Ø | Rod Ø | Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
| 1.5" | 0.875" | 2.3 207 |
2.2 193 |
1.7 149 |
1.1 96 |
0.9 79 |
0.8 70 |
0.6 53 |
0.4 35 |
0.3 26 |
0.2 17 |
0.1 9 |
1.5 207 |
| 2.0" | 1.25" | 4.2 207 |
4.2 207 |
3.8 187 |
2.5 123 |
2.1 104 |
1.7 84 |
1.3 64 |
0.9 44 |
0.7 34 |
0.5 25 |
0.4 20 |
2.5 207 |
| 2.5" | 1.50" | 6.5 207 |
6.5 207 |
6.5 207 |
6.5 207 |
6.5 207 |
6.1 193 |
4.6 145 |
3.2 101 |
2.3 73 |
1.8 57 |
1.4 44 |
4.2 207 |
| 3.0" | 1.50" | 9.4 207 |
9.4 207 |
9.4 207 |
8.5 186 |
7.1 156 |
6.1 134 |
4.6 101 |
3.2 70 |
2.3 50 |
1.8 39 |
1.4 31 |
7.1 207 |
| 3.5" | 1.75" | 12.8 207 |
12.8 207 |
12.8 207 |
12.8 207 |
12.8 207 |
11.3 182 |
8.5 137 |
5.9 95 |
4.3 69 |
3.3 53 |
2.6 42 |
9.6 207 |
| 4,0" | 1.75" | 16.8 207 |
16.8 207 |
16.8 207 |
15.7 194 |
13.2 163 |
11.3 139 |
8.5 105 |
5.9 73 |
4.3 53 |
3.3 41 |
2.6 32 |
13.5 207 |
| 5.0" | 2.00" | 26.2 207 |
26.2 207 |
26.2 207 |
26.2 207 |
22.5 178 |
19.2 152 |
14.4 114 |
10.0 79 |
7.4 58 |
5.7 45 |
4.5 35 |
22.0 207 |
Buy with Confidence from a long established Hydraulic Service Center
get a 12 month warranty and an Australian Tax Invoice.
MADE IN AUSTRALIA to imperial sizes (the MM dimensions are approximate) Unlike the imported Chinese cylinders, Seal kits are a stock item.
#Please note price for freight may be extra if to a remote location. We will discuss with you if this applies. Pick up from brisbane or melbourne is free
If you require another size please call us at 0755 631 982
# Please message with post code for freight confirmation.

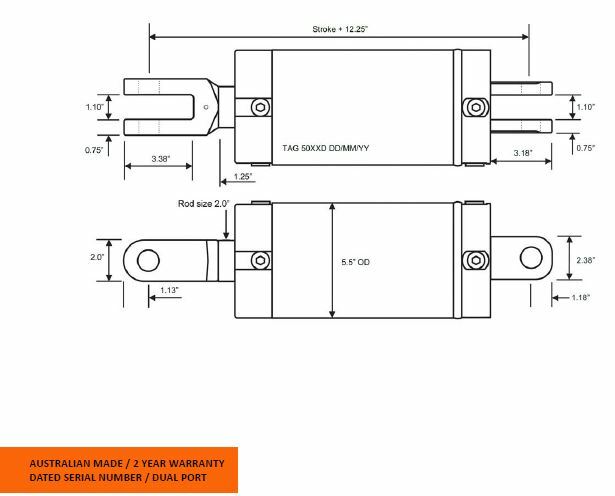

Specifications
- Materials of Construction
- Steel Barrel, Gland Nut and Clevis,
- Chromed High tensile Steel Rod
- High tensile steel pins
- Spring steel R Clips
- Max Working Pressure = 200Bar (3000 PSI) 26 Tonne Force at @3000 PSI on extension
- 3/4 UNO Ports
- 1" Pins
Many types of adapters threads, hydraulic hose and field fit hose fittings available please see our other listings.
Please feel free to call at 0755 631 982
or email us at sales@mhfgc.com.au
