BELL Housing 5-18 HP Honda Engines 3/4 - 1" Shaft for Gear / Log Split Pumps DIN Mount + SAE
Product Details
Brand: Hydraulic.Online
Weight: 3.00 kg
|

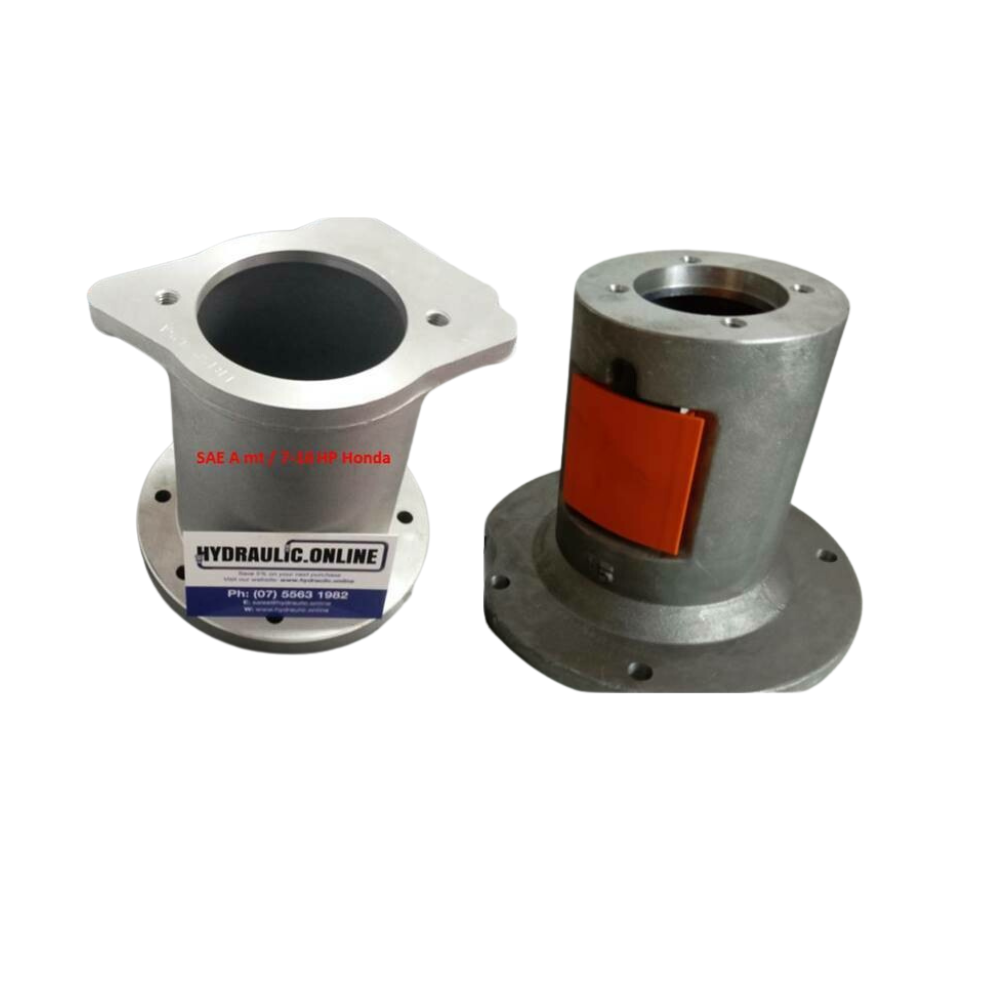

Aluminium Bell Housings for Honda or similar designed (copy) engines.
These bell housings are designed to fit Honda petrol engines as well as copies of the Honda motor.
There are two sizes.
One size will fit the Honda GX120, GX160 and GX200 Rear Bolting details with 3 .2 to 5.7 HP engines with 3/4" inch output shaft,
and a larger size that will fit Honda GX240 to GX390 single cylinder and GX630 to GX690 Twin Cylinder Engines with between 7.5 to 22 HP Honda type engines with a 1" inch Output Shaft.
The pump end of these bell housings is designed to fit the following style hydraulic pumps,
Gear pump Group 1 & 2 DIN mount
4 bolt Hi Lo (2 Stage) log splitter pumps 50 mm square
Two bolt SAE flange with 5/8" Inch diameter straight keyed shafts on pumps.
Please note; the 3/4" Shaft bell housings x 4 bolt Hi Lo log splitter housing, has only a 45mm diameter Hole to allow half couplers through. Length is 105mm for this one The photos are in order. But please ignore the first Image, 'Spiggot' sizes (= diameter of the circular opening of the bell housing shoulder meets engine) 3/4" inch shaft housing = 41.3mm diameter , 1" inch shaft housing = 110mm/146mm diameter HEIGHT OF the LARGE SIZE Bell Housing is 142mm
Please note: This listing does NOT include half couplers.
Please follow links below to see our other listings for complete bell housings WITH half couplers. Wood Log Splitter Pump Kit 15 Hp 20 Gpm / 73 Lt/min with Bellhousing and half Couplers Wood Log Splitter Pump Kit 20 Hp 26 GPM / 100 Lt/min with Bellhousing and half Couplers Hours: 8 am to 5 pm Monday - Friday, (QLD Time) excluding public holidays
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
