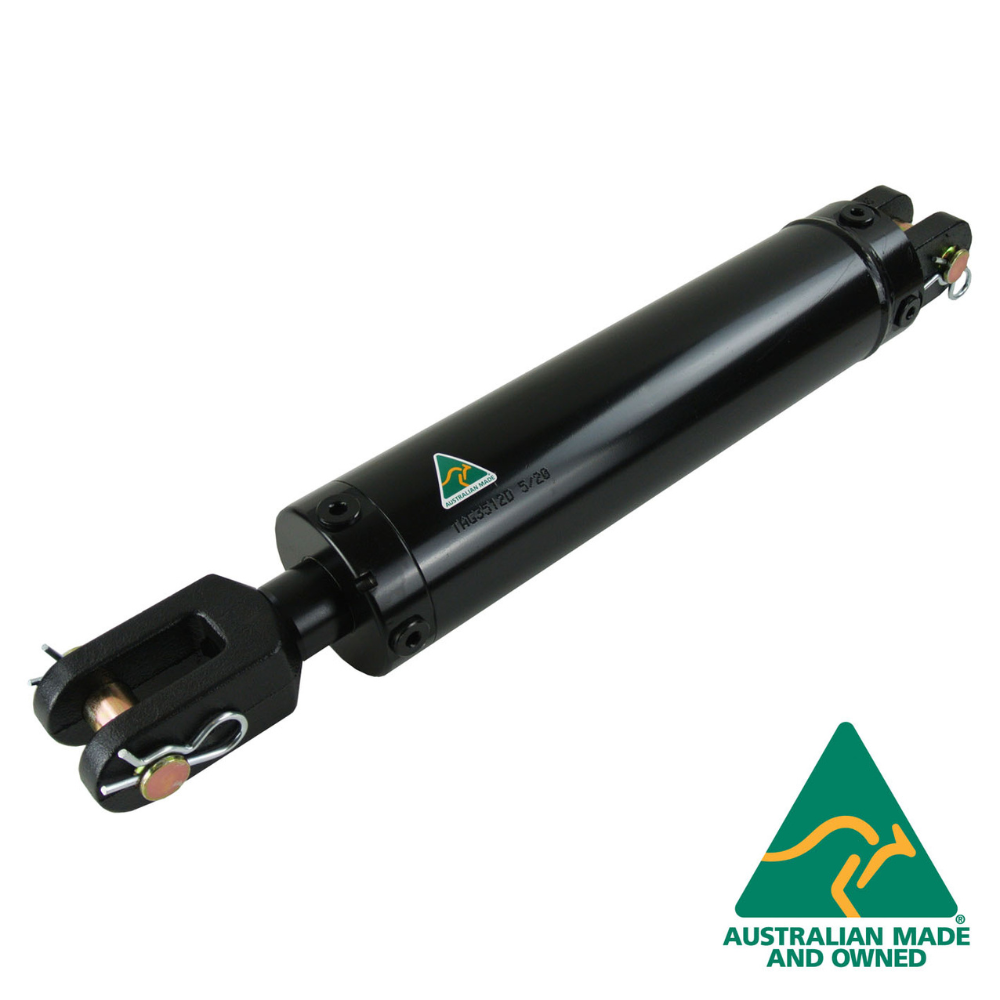

Hydraulic Cylinder / Ram 3.5 inch bore Various strokes Australian Made

Product Details

Weight: 23.00 kg

Quality hydraulic Cylinders with 3.5 inch bore and available in Various Stroke Lengths with up 12 tons force at 3000 psi
Made in AUSTRALIA.

Designed for many hydraulic applications eg.Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Spliters.

Each Cylinder is individually Oil Tested at the Factory and comes complete with a Female Clevis at each end,

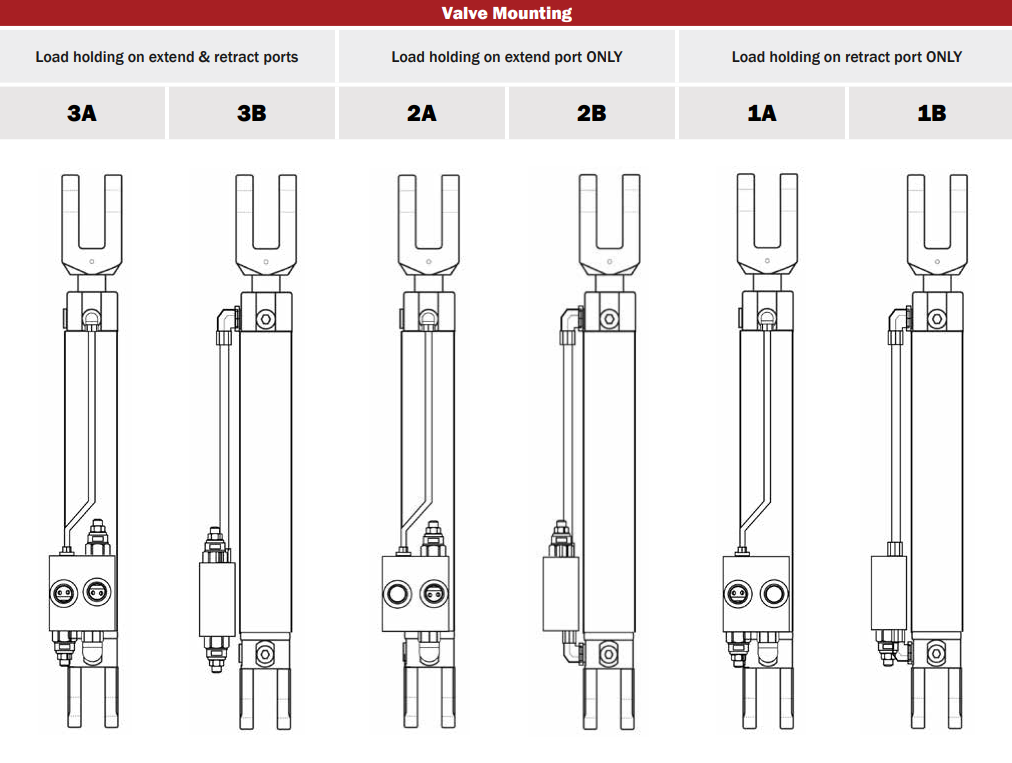

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.

The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.

The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
For horizontal or operating in an arc these values may have to be reduced.

1 kN = 102 kg force = 225 lb force

1 bar = 14.5 psi

Maximum Extension Force in Metric Tons

	Cylinder Stroke in Inches	8	10	12	16	18	20	24	30	36	42	48	Maximum Retraction Force
Bore Ø	Rod Ø	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar
1.5"	0.875"	2.3 207	2.2 193	1.7 149	1.1 96	0.9 79	0.8 70	0.6 53	0.4 35	0.3 26	0.2 17	0.1 9	1.5 207
2.0"	1.25"	4.2 207	4.2 207	3.8 187	2.5 123	2.1 104	1.7 84	1.3 64	0.9 44	0.7 34	0.5 25	0.4 20	2.5 207
2.5"	1.50"	6.5 207	6.5 207	6.5 207	6.5 207	6.5 207	6.1 193	4.6 145	3.2 101	2.3 73	1.8 57	1.4 44	4.2 207
3.0"	1.50"	9.4 207	9.4 207	9.4 207	8.5 186	7.1 156	6.1 134	4.6 101	3.2 70	2.3 50	1.8 39	1.4 31	7.1 207
3.5"	1.75"	12.8 207	12.8 207	12.8 207	12.8 207	12.8 207	11.3 182	8.5 137	5.9 95	4.3 69	3.3 53	2.6 42	9.6 207
4,0"	1.75"	16.8 207	16.8 207	16.8 207	15.7 194	13.2 163	11.3 139	8.5 105	5.9 73	4.3 53	3.3 41	2.6 32	13.5 207
5.0"	2.00"	26.2 207	26.2 207	26.2 207	26.2 207	22.5 178	19.2 152	14.4 114	10.0 79	7.4 58	5.7 45	4.5 35	22.0 207

Postage

Please message with post code for freight confirmation.

We send TNT overnight to most major cities ex Brisbane or Melbourne, however some states eg WA, outlying areas & properties may be freighted by other carriers & will cost extra. As a rule of thumb, it costs $25 ea or $40 for two, price will increase for larger strokes as they get very heavy

#Please note ,price for freight may be extra if remote location. We will discuss with you if this applies

Specifications

3.5" 76mm Bore
1.75" Rod (44mm)
Port Sizes 3/4" UNO ( Dual ports; 2 on face , 2 x 90° )
1" Female clevis with 1" Pin each end
Weigh
Materials of Construction
Steel Barrel, Gland Nut and Clevis,
Chromed High tensile Steel Rod
High tensile steel pins
Spring steel R Clips
Max Working Pressure = 240Bar (3500 PSI) 12Tonne Force at @3000 psi

We can supply cylinders in many bore, stroke and Port Orientations.

We carry most types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings or call us 0755631982
