Hydraulic Cylinder Various Strokes 2" bore 4.2 tons Force Aussie Made

Name: Hydraulic Ram 2.0 inch Bore Various Strokes 4.2 Tons Force
Brand: TUFF
SKU: TAG 20
Price: 365.0 AUD
Availability: InStock

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

SKU TAG 20

AU$365.00

On Sale

was ~~AU$492.00~~ Save 26%

2.0" Cylinder Bore Price Includes GST

Please choose

Add Single or Double Counterbalance Valve & Pipes for Safety and Control, NOTE! 10" - 48" STROKE ONLY ! (Price includes Installation)

Please choose

Brass Mesh Breather For Single Acting Application

Please choose

In stock: 20 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Hydraulic Cylinder Various Strokes 2" bore 4.2 tons Force Aussie Made

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

Product Details

Brand: TUFF

Weight: 7.00 kg

Hydraulic Cylinder 2 inch Bore, available in Various Strokes from 2" to 54" produces 4.2 tons of Force at 3,000 psi.

Certified Australian-made with a 2 year warranty

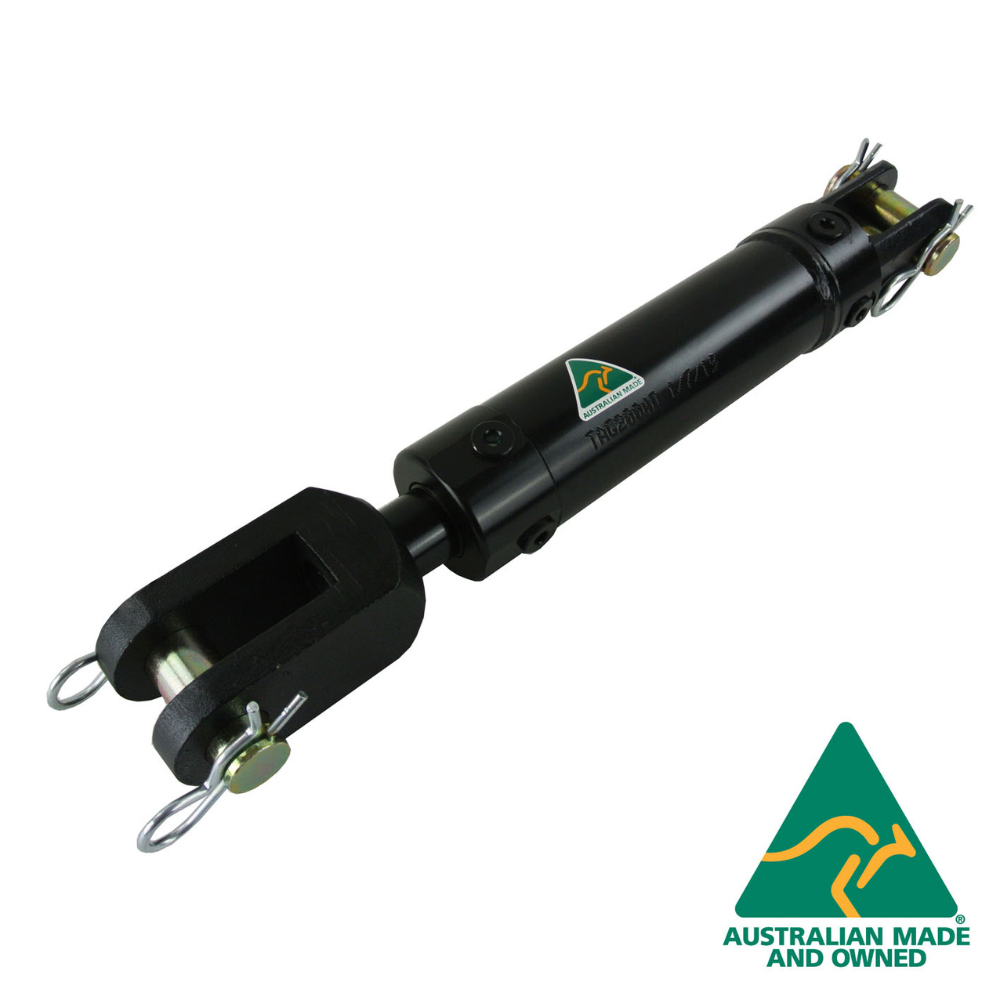

This is an All Steel Double Acting Hydraulic Cylinder with 2.0-inch diameter Bore and Piston.
1.25-inch diameter Hard Chrome Rod and Female Clevis with a 1-inch pin on both ends.

Producing 4.2 tons push force at 3.000 PSI Extending.
3.0 tons at 3.000 PSI Pull force retracting.

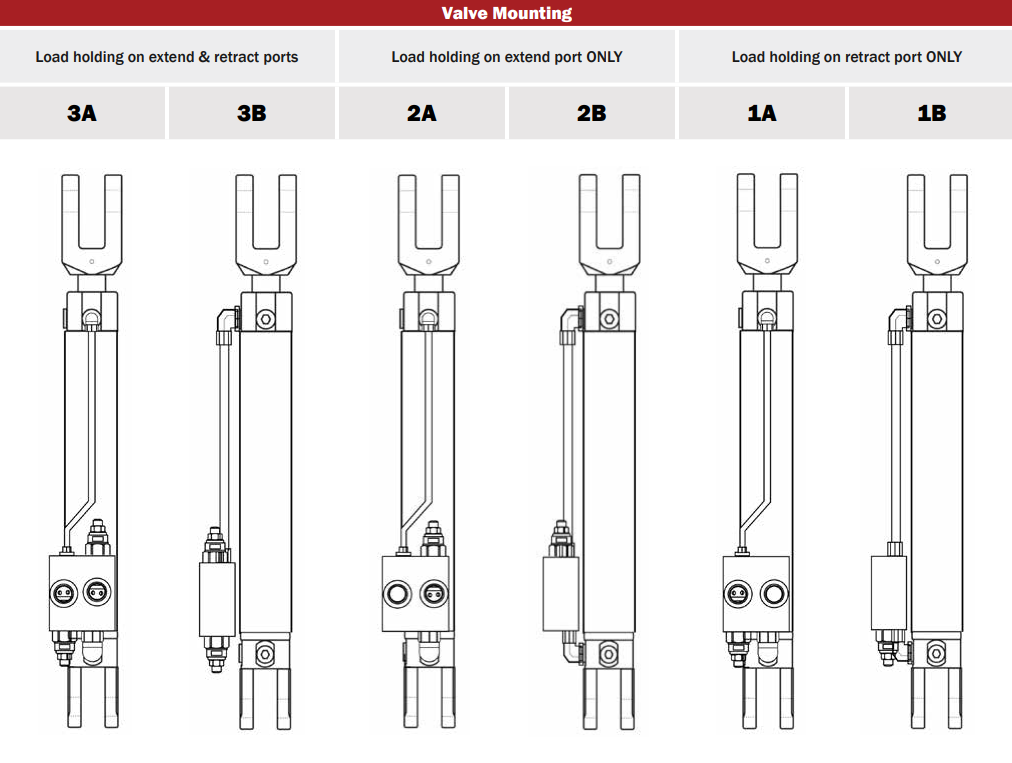

Click Here for added Safety and Control to your Hydraulic Cylinder with a Counterbalance Valve and Pipe (Factory installed when ordered with a cylinder) Or... Order Directly from this Listing

This Cylinder can be also be used as single-acting ram (ie. gravity pull or push down).

Made with DUAL 9/16" UNO ports at each end to allow more options to connect up in tight spots.

Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.

The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.

The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
For horizontal or operating in an arc these values may have to be reduced.

1 kN = 102 kg force = 225 lb force

1 bar = 14.5 psi

Maximum Extension Force in Metric Tons

	Cylinder Stroke in Inches	8	10	12	16	18	20	24	30	36	42	48	Maximum Retraction Force
Bore Ø	Rod Ø	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar
1.5"	0.875"	2.3 207	2.2 193	1.7 149	1.1 96	0.9 79	0.8 70	0.6 53	0.4 35	0.3 26	0.2 17	0.1 9	1.5 207
2.0"	1.25"	4.2 207	4.2 207	3.8 187	2.5 123	2.1 104	1.7 84	1.3 64	0.9 44	0.7 34	0.5 25	0.4 20	2.5 207
2.5"	1.50"	6.5 207	6.5 207	6.5 207	6.5 207	6.5 207	6.1 193	4.6 145	3.2 101	2.3 73	1.8 57	1.4 44	4.2 207

Buy with Confidence from a long established Hydraulic Service Center get an Australian Tax Invoice and 2 Year Warranty

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

Specifications

• 2.0" 50.8mm Bore

• 1.25" Rod (31.75 mm)

• stroke from 4 to 54 inches (102 mm to 1371 mm) Longer and custom lengths available on request

Cylinders Specifications 2.0" Bore x 1.25" Rod (Double 9/16" UNO ports & 1" Pins)
Order Code	Stroke	Stroke (mm)	Closed Pin Centres	Closed (mm)	Open Pin Centres	Open (mm)	Kg
TAG-2002-125	2"	50 mm	14.25	362 mm	16.25	413	7.3
TAG-2004-125	4"	102 mm	16.25”	413 mm	20.25”	514 mm	8.1
TAG-2006-125	6"	152 mm	18.25”	464 mm	24.25”	616 mm	8.9
TAG-2008-125	8"	203 mm	20.25”	514 mm	28.25”	718 mm	9.7
TAG-2010-125	10"	254 mm	22.25”	565 mm	32.25”	819 mm	10.8
TAG-2012-125	12"	305 mm	24.25”	616 mm	36.25”	921 mm	11.5
TAG-2014-125	14"	356 mm	26.25”	667 mm	40.25”	1022 mm	12.3
TAG-2016-125	16"	406 mm	28.25”	718 mm	44.25”	1124 mm	13.0
TAG-2018-125	18"	457 mm	30.25”	768 mm	48.25”	1226 mm	13.7
TAG-2020-125	20"	508 mm	32.25”	819 mm	52.25”	1327 mm	14.5
TAG-2022-125	22"	559 mm	34.25”	870 mm	56.25”	1429 mm	15.1
TAG-2024-125	24"	610 mm	36.25”	921 mm	60.25”	1530 mm	15.8
TAG-2026-125	26"	660 mm	38.25”	972 mm	64.25”	1632 mm	16.4
TAG-2028-125	28"	711 mm	40.25”	1022 mm	68.25”	1734 mm	17.2
TAG-2030-125	30"	762 mm	42.25”	1073 mm	72.25”	1835 mm	19.2
TAG-2036-125	36"	914 mm	48.25”	1226 mm	84.25”	2140 mm	21.4
TAG-2042-125	42"	1067 mm	54.25”	1378 mm	96.25”	2445 mm	23.5
TAG-2048-125	48"	1219 mm	60.25”	1530 mm	108.25"	2750 mm	25.5

PLEASE SEE ATTACHED PICTURES FOR

STANDARD STROKE LENGTHS WEIGHTS

• Port Sizes 9/16" UNO

• 1" Female clevis with 1" High Tensile steel Pin with R Clips on each end

• Weight 8 kg for 4" stroke to 27 KG for 48" stroke

• Force on Extend @3000 PSI is 4.2 Metric Tonne or 1.4 Tonne Per 1000 PSI

• Force on Retract @3000 PSI is 2.4 Metric Tonne or 0.83 Tonne Per 1000 PSI

Each Cylinder is individually Oil Tested at the Factory and comes with a

TWO YEAR (2) WARRANTY

Materials of Construction

• Steel Barrel, Gland Nut and Clevis
• Hard Chromed High tensile Steel Rod
• High tensile steel pins
• Spring Steel R Clip pin retainers
• Max Working Pressure = 240 Bar (3500 PSI) 4.95 Tonne Force.

We can supply cylinders in many bore, stroke and Port Orientations.

Please send us a question via eBay for different size cylinders and costings.

Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

Unlike imported cylinders, these are a robust construction with precise tolerances meant for use day in and day out in Australia's harshest conditions.

Also Available are Re-Seal kits.

Designed for many hydraulic applications in industry, manufacturing and transport and farming and can be used in Tilt Tray and Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Spliters.

Comes complete with a Female Clevis at each end.

Please email or call us on (07) 5571 6155 with your post code for freight confirmation.

Our postcode is 4211 NERANG,

This item weighs between 7 and 27 KG
