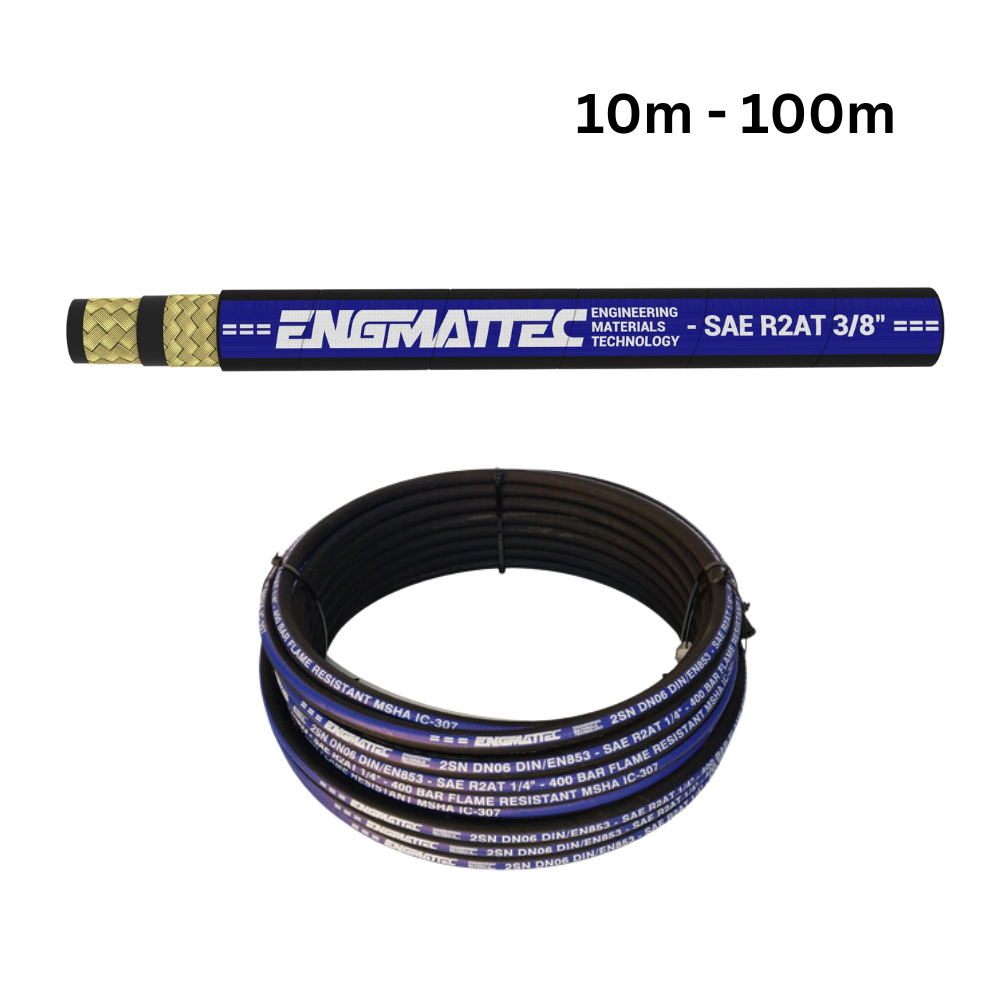

3/8" ENGMATTEC Two Wire Hydraulic Hose 10 - 100m Coils 4,800 psi
SKU H-R2-06-EN
AU$112.00
🔥 EOFY SALE!
was AU$134.40 Save 17%
Length
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
3/8" ENGMATTEC Two Wire Hydraulic Hose 10 - 100m Coils 4,800 psi
Product Details
Brand: ENGMATTEC
Weight: 5.10 kg
ENGMATTEC 3/8" ID Two Wire HYDRAULIC HOSE with Working Pressure 4800 PSI (330 bar)
High Temp Resistance to +120°C
This is a quality imported hose made to meet or exceed US Spec SAE100R2AT
as well as German EN 853 Standards.
as well as German EN 853 Standards.
100R2AT 3/8" DN10 Hose is also fully compatible, interchangeable and or as a direct replacement for the follow brands of hose.
- RYCO AVENGER T26A and RYCO DIEHARD T26D Non-Skive Hoses.
- GATES 6G2 and 6G2H
- EATON GH195 AQP HI-IMPULSE hoses
- PARKER 301SN-6 NON SKIVE HOSE
- MANULI FLUICONNECTO 2SN FL2T06
- PIRTEK SAE 100R2AT, SIZES R2AT-06.
- TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN, SIZE HYD-R2T-06-SF-S
- 100R2AT 3/8" Hose can also be used with the following hose fittings
- RYCO BITELOK ONE-PIECE CRIMP NON SKIVE T200 AND T700 hose tails
- EATON TTC / Z Series braided hose one-piece bite the wire style hose fittings.
- Southcott Super Crimp S series stems with FNP-06 ferrules as well as Ezi-Crimp Non Skive One Piece Series E fittings.
- CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-06 non skive Bodies.
- RYCO FIELD ATTACHABLE L SERIES L00-06 FERRULES and 600 SERIES INSERTS.
- TAIPAN 100R2GP-06AHF and 100R2-06AHF hose and K06 series one piece non skive hose tails and or Field Attachable D06 Tails and D2-06 Bodies
This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles (equivalent to almost 1000 excavator earth moving hours) at 133% of maximum pressure (6450 psi) and at 100% of maximum temperature 120 °C.
We have used this same hose extensively in our hydraulic service trucks , & on new builds.
It has a great tough outer case, yet is very flexible for ease of fitting.
This hose is a quality product it suits either crimped ends,
or Use our D.I.Y field fit reusables also available from this store.
Burst Pressure: 20000 PSI (Minimum)
It has a great tough outer case, yet is very flexible for ease of fitting.
This hose is a quality product it suits either crimped ends,
or Use our D.I.Y field fit reusables also available from this store.
SAE 100R2AT– 06 NON SKIVE HOSE (Two Wire)
*** Please note for lengths greater than 20m one of more cuts may be used to make up the full length, please let us know if you require a continuous length and we will do our best to accomodate ***
Construction
Application
Specifications
Pressure Range
Burst Pressure: 20000 PSI (Minimum)
Range of Temperature
-40⁰C to + 120⁰C
Minimum Bend Radius
135mm
Weight
