Hydraulic Cylinder / Ram Various Strokes Australian Made! - 3.0" Bore

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

Product Details

Weight: 23.00 kg

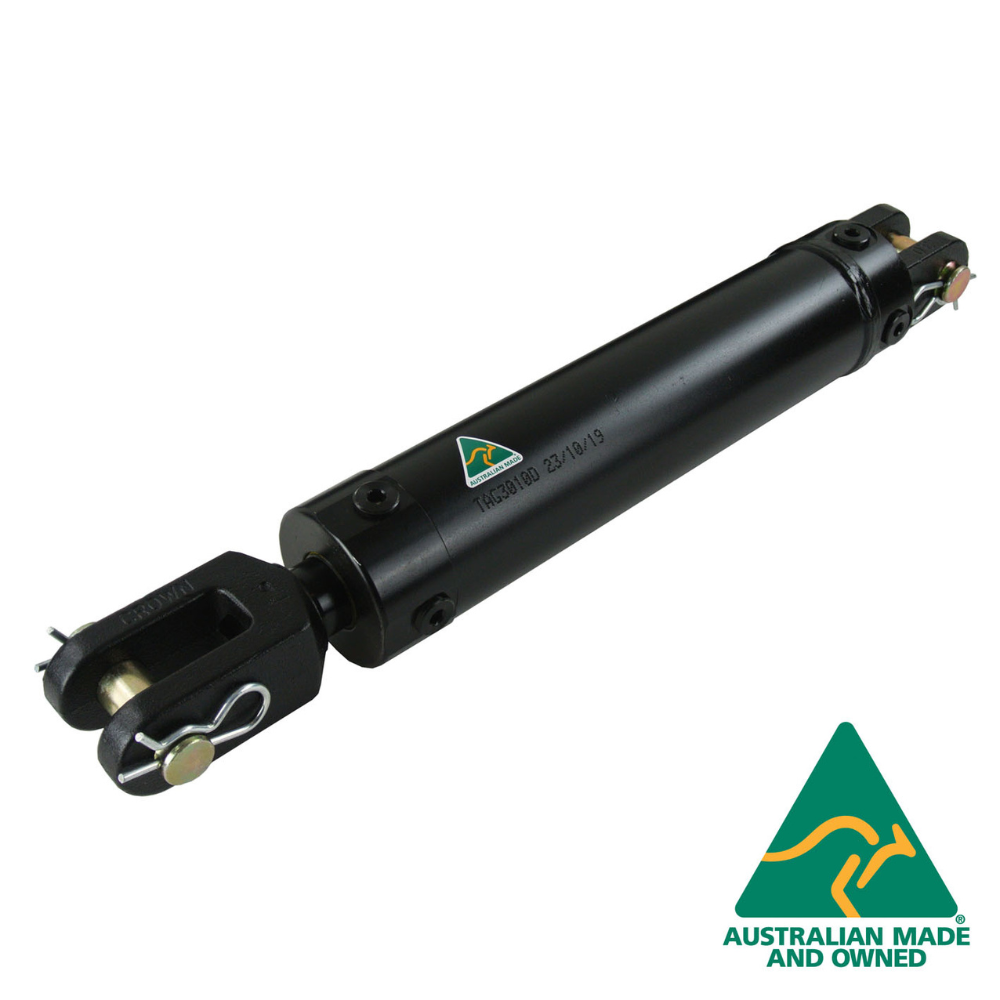

Hydraulic Cylinder / Ram with 3 inch bore and 1.5" Rod, available in various Stroke lengths from 4 inches to 48 inches.

Produces 9.5 tonnes of Push Force and 3,000 psi Australian Made!

These hydraulic Cylinders / Rams are Australian Made to imperial sizes (the MM dimensions are approximate)

These come with 'Dual' ports. There is an alternate port at 90° to main port. This makes fitment more flexible. Thi sale is for a brand new quality hydraulic cylinder Made in AUSTRALIA. It is designed for many hydraulic applications eg.Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Splitters.

Each Cylinder is individually Oil Tested at the Factory and comes complete with a Female Clevis at each end,

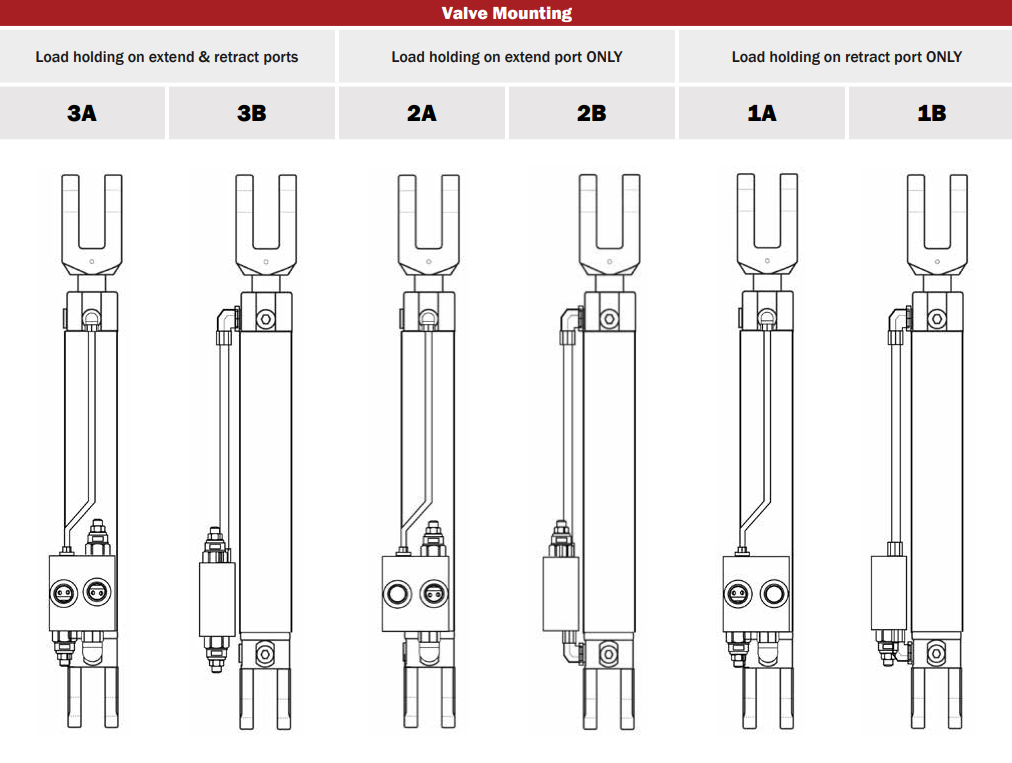

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.

The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.

The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
For horizontal or operating in an arc these values may have to be reduced.

1 kN = 102 kg force = 225 lb force

1 bar = 14.5 psi

Maximum Extension Force in Metric Tons

	Cylinder Stroke in Inches	8	10	12	16	18	20	24	30	36	42	48	Maximum Retraction Force
Bore Ø	Rod Ø	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar
1.5"	0.875"	2.3 207	2.2 193	1.7 149	1.1 96	0.9 79	0.8 70	0.6 53	0.4 35	0.3 26	0.2 17	0.1 9	1.5 207
2.0"	1.25"	4.2 207	4.2 207	3.8 187	2.5 123	2.1 104	1.7 84	1.3 64	0.9 44	0.7 34	0.5 25	0.4 20	2.5 207
2.5"	1.50"	6.5 207	6.5 207	6.5 207	6.5 207	6.5 207	6.1 193	4.6 145	3.2 101	2.3 73	1.8 57	1.4 44	4.2 207
3.0"	1.50"	9.4 207	9.4 207	9.4 207	8.5 186	7.1 156	6.1 134	4.6 101	3.2 70	2.3 50	1.8 39	1.4 31	7.1 207
3.5"	1.75"	12.8 207	12.8 207	12.8 207	12.8 207	12.8 207	11.3 182	8.5 137	5.9 95	4.3 69	3.3 53	2.6 42	9.6 207
4,0"	1.75"	16.8 207	16.8 207	16.8 207	15.7 194	13.2 163	11.3 139	8.5 105	5.9 73	4.3 53	3.3 41	2.6 32	13.5 207
5.0"	2.00"	26.2 207	26.2 207	26.2 207	26.2 207	22.5 178	19.2 152	14.4 114	10.0 79	7.4 58	5.7 45	4.5 35	22.0 207

Freight

Please message with post code for freight confirmation.

We send TNT overnight to most major cities , however some outlying areas & properties may be freighted by other carriers.

Specifications

3" inch (76mm) Bore
1.5" inch Rod (38mm)
Port Sizes 3/4" UNO (x 4)
1" Female clevis with 1" Pin at each end
Materials of Construction
Steel Barrel, Gland Nut and Clevis,
Chromed High tensile Steel Rod
High tensile steel pins
Spring steel R Clips
Max Working Pressure = 240Bar (3500 PSI) 9.5Tonne Force at @3000 psi

We can supply cylinders in many bore, stroke and Port Orientations.

Being a Hydraulic service centre, we stock most types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

Please message with post code for freight confirmation.

$RL 19.12.19
