Australia Made Cylinders 2.5 inch bore Various Strokes 6.6 Tons push at 3,000 PSI

Australia Made Cylinders 2.5 " bore Various Strokes 6.6 Tons push @ 3,000 PSI

Name: Australian Cylinder 2.5 Inch Bore Various Strokes 6.6 Tonne
Brand: TUFF
SKU: TAG-25
Price: 369.0 AUD
Availability: InStock

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

SKU TAG-2504-D

AU$369.00

Easter Sale !

Stroke Length

Please choose

Add Single or Double Counterbalance Valve & Pipes for Safety and Control, NOTE! 10" - 48" STROKE ONLY ! (Price includes Installation)

Please choose

Brass Mesh Breather For Single Acting Application

Please choose

In stock: 20 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Australia Made Cylinders 2.5 " bore Various Strokes 6.6 Tons push @ 3,000 PSI

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

Product Details

Brand: TUFF

Weight: 10.00 kg

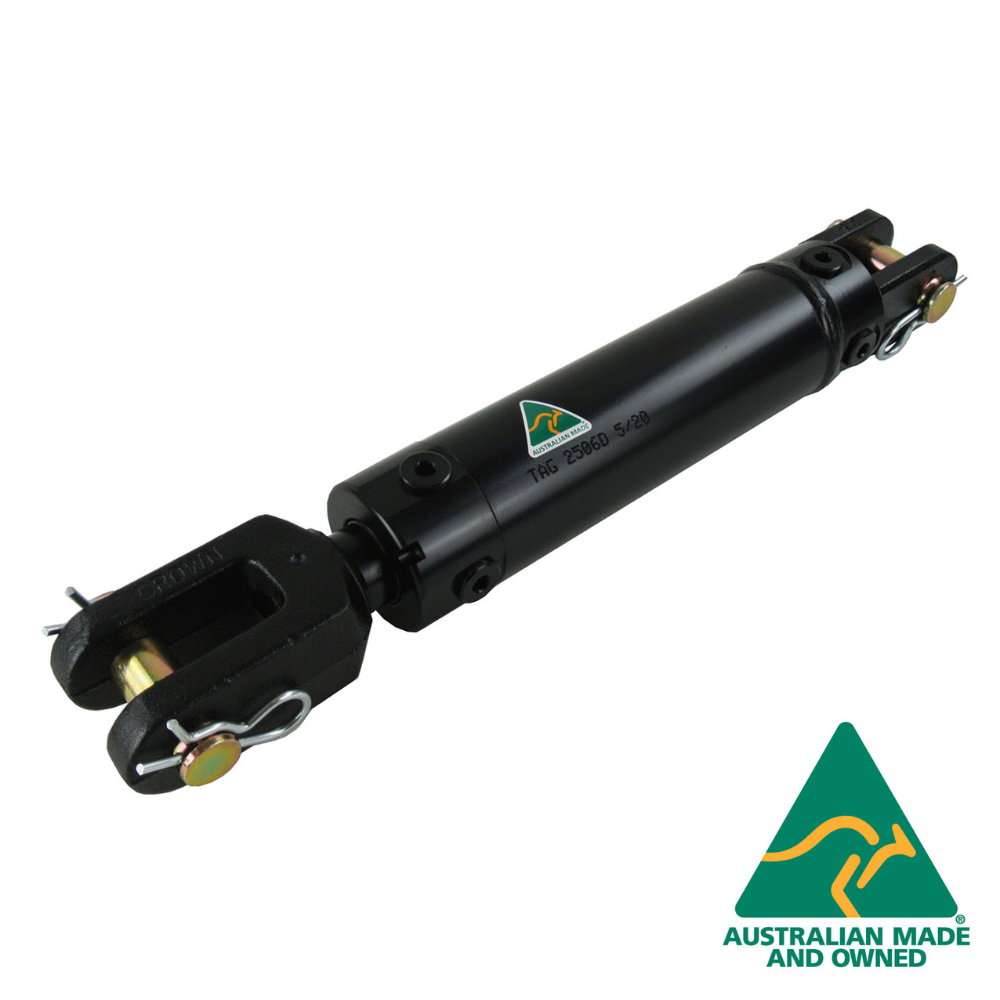

Australian made all Steel Double Acting Hydraulic Cylinder with 2.5 inch Bore 1.5 inch diameter Hard Chrome Rod and Female Clevis with 1 inch pin at both ends.

Each Cylinder is individually Oil Tested at the Factory and comes with a

TWO YEAR (2) WARRANTY

These 2.5 " bore cylinders will Produce up to 6.6 tons push force at 3,000 psi Extending.

and 4.2 tons at 3,000 psi Pull force retracting.

These cylinders can be also be used as single acting rams (ie. gravity pull or push down).

DUAL 3/4" UNO ports at each end to allow more options to connect up in tight spots.

Specifications

• 2.5" 63mm Bore

• 1.5" Rod (38mm)

• Strokes from 4 to 118 inches (100 to 3,000 mm) Longer and custom lengths available on request

Click Here for added Safety and Control to your Hydraulic Cylinder with a Counterbalance Valve and Pipe Kit (Factory Installed when ordered with a cylinder) Or... Order Directly from this Listing.

Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.

The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.

The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
For horizontal or operating in an arc these values may have to be reduced.

1 kN = 102 kg force = 225 lb force

1 bar = 14.5 psi

Maximum Extension Force in Metric Tons

	Cylinder Stroke in Inches	8	10	12	16	18	20	24	30	36	42	48	Maximum Retraction Force
Bore Ø	Rod Ø	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar	Ton bar
2.0"	1.25"	4.2 207	4.2 207	3.8 187	2.5 123	2.1 104	1.7 84	1.3 64	0.9 44	0.7 34	0.5 25	0.4 20	2.5 207
2.5"	1.50"	6.5 207	6.5 207	6.5 207	6.5 207	6.5 207	6.1 193	4.6 145	3.2 101	2.3 73	1.8 57	1.4 44	4.2 207
3.0"	1.50"	9.4 207	9.4 207	9.4 207	8.5 186	7.1 156	6.1 134	4.6 101	3.2 70	2.3 50	1.8 39	1.4 31	7.1 207

• Port Sizes 3/4" UNO

• 1" Female clevis with 1" High Tensile steel Pin with R Clips each end

• Weight 9 kg for 4" stroke to 29 KG for 48" stroke

• Maximum generated Force on Extend @3,000 PSI is 6.6 Metric Tonne or 2.2 Tonne Per 1000 PSI

• Maximum generated Force on Retract @3,000 PSI is 4.0 Metric Tonne or 1.33 Tonne Per 1000 PSI

Cylinders Specifications 2.5" Bore x 1.5" Rod (with double 3/4" UNO Ports)
Order Code	Stroke	Stroke (mm)	Closed Pin Centres	Closed (mm)	Open Pin Centres	Open (mm)	Kg
TAG-2504-150	4"	102 mm	16.25”	413 mm	20.25”	514 mm	10.4
TAG-2506-150	6"	152 mm	18.25”	464 mm	24.25”	616 mm	11.2
TAG-2508-150	8"	203 mm	20.25”	514 mm	28.25”	718 mm	12.4
TAG-2510-150	10"	254 mm	22.25”	565 mm	32.25”	819 mm	13.5
TAG-2512-150	12"	305 mm	24.25”	616 mm	36.25”	921 mm	14.5
TAG-2514-150	14"	356 mm	26.25”	667 mm	40.25”	1022 mm	15.5
TAG-2516-150	16"	406 mm	28.25”	718 mm	44.25”	1124 mm	16.5
TAG-2518-150	18"	457 mm	30.25”	768 mm	48.25”	1226 mm	17.5
TAG-2520-150	20"	508 mm	32.25”	819 mm	52.25”	1327 mm	18.5
TAG-2522-150	22"	559 mm	34.25”	870 mm	56.25”	1429 mm	19.5
TAG-2524-150	24"	610 mm	36.25”	921 mm	60.25”	1530 mm	20.5
TAG-2526-150	26"	660 mm	38.25”	972 mm	64.25”	1632 mm	21.5
TAG-2528-150	28"	711 mm	40.25”	1022 mm	68.25”	1734 mm	22.5
TAG-2530-150	30"	762 mm	42.25”	1073 mm	72.25”	1835 mm	23.5
TAG-2536-150	36"	914 mm	48.25”	1226 mm	84.25”	2140 mm	26.5
TAG-2542-150	42"	1067 mm	54.25”	1378 mm	96.25”	2445 mm	29.5
TAG-2548-150	48"	1219 mm	60.25”	1530 mm	108.25"	2750 mm	32.5

Materials of Construction

• Steel Barrel, Gland Nut and Clevis

• Hard Chromed High tensile Steel Rod

• High tensile 1" Diameter steel pins

• Spring Steel R Clip pin retainers

• Max Working Pressure = 240 Bar (3500 PSI) 7.7 Tonne Force at 3500 psi

Watch as this robot opens the doors to a Mazak CNC Quick Turning center and rotates a pair of Rod End Clevises in the machine before closing doors and placing a completed drilled and tapped Rod end Clevis into the storage tray.

Buy with Confidence from a long established Hydraulic Service Center get an Australian Tax Invoice 2 Year Warranty and .

Extra long stroke cylinders available here.

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

We can supply cylinders in many bore, stroke and Port Orientations.

Please send us a question via eBay for different size cylinders and costings.

Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

Unlike imported cylinders, these are a robust construction with precise tolerances meant for use day in and day out in Australia's harshest conditions.

Each Cylinder is individually Oil Tested at the Factory and comes with a

TWO YEAR (2) WARRANTY

Also Available are Re-Seal kits.

Designed for many hydraulic applications in industry, manufacturing and transport and farming and can be used in Tilt Tray and Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Spliters.

Comes complete with a Female Clevis at each end.

# Please message with post code for freight confirmation.

Please email or call us on (07) 5571 6155 with your post code for freight confirmation.

This item weighs between 9 and 29 KG
