Hydraulic Cylinder / Ram Various Sizes Australia Made! - 1.5" Bore
SKU TAG 15
AU$461.00
🔥 EOFY SALE!
1.5" STROKE OPTIONS
Please choose
Add Single or Double Counterbalance Valve & Pipes for Safety and Control, 10" - 48" stroke only (Price includes Installation)
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hydraulic Cylinder / Ram Various Sizes Australia Made! - 1.5" Bore
Product Details
Weight: 11.00 kg

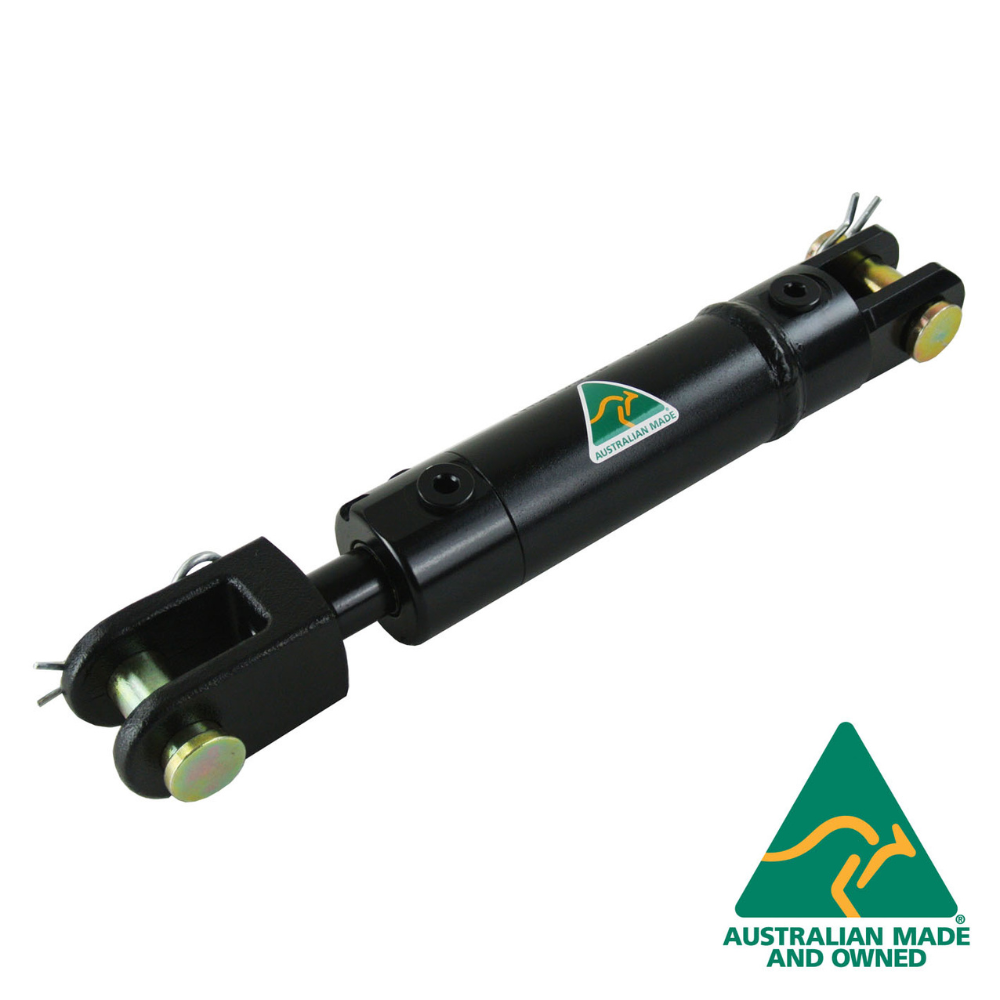

Hydraulic Cylinder / Ram Various Sizes Australia Made! - 1.5" Bore Certified Australian-made with a 2 year warranty
7/8-inch diameter Hard Chrome Rod and Female Clevis with a 3/4-inch pin on both ends.
Producing 2.3 tons push force at 3,000 PSI Extending. (depending On stroke Length)
1.5 tons at 3000 PSI Pull force retracting.
Or... Order Directly from this Listing
This Cylinder can be also be used as single-acting ram (ie. gravity pull or push down).
Made with DUAL 9/16" UNO ports at each end to allow more options to connect up in tight spots.
WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.
Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.
The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.
- The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
- For horizontal or operating in an arc these values may have to be reduced.
1 kN = 102 kg force = 225 lb force
1 bar = 14.5 psi
Maximum Extension Force in Metric Tons
| Cylinder Stroke in Inches |
8 | 10 | 12 | 16 | 18 | 20 | 24 | 30 | 36 | 42 | 48 | Maximum Retraction Force |
|
| Bore Ø | Rod Ø | Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
Ton bar |
| 1.5" | 0.875" | 2.3 207 |
2.2 193 |
1.7 149 |
1.1 96 |
0.9 79 |
0.8 70 |
0.6 53 |
0.4 35 |
0.3 26 |
0.2 17 |
0.1 9 |
1.5 207 |
| 2.0" | 1.25" | 4.2 207 |
4.2 207 |
3.8 187 |
2.5 123 |
2.1 104 |
1.7 84 |
1.3 64 |
0.9 44 |
0.7 34 |
0.5 25 |
0.4 20 |
2.5 207 |
| 2.5" | 1.50" | 6.5 207 |
6.5 207 |
6.5 207 |
6.5 207 |
6.5 207 |
6.1 193 |
4.6 145 |
3.2 101 |
2.3 73 |
1.8 57 |
1.4 44 |
4.2 207 |
| 3.0" | 1.50" | 9.4 207 |
9.4 207 |
9.4 207 |
8.5 186 |
7.1 156 |
6.1 134 |
4.6 101 |
3.2 70 |
2.3 50 |
1.8 39 |
1.4 31 |
7.1 207 |
| 3.5" | 1.75" | 12.8 207 |
12.8 207 |
12.8 207 |
12.8 207 |
12.8 207 |
11.3 182 |
8.5 137 |
5.9 95 |
4.3 69 |
3.3 53 |
2.6 42 |
9.6 207 |
| 4,0" | 1.75" | 16.8 207 |
16.8 207 |
16.8 207 |
15.7 194 |
13.2 163 |
11.3 139 |
8.5 105 |
5.9 73 |
4.3 53 |
3.3 41 |
2.6 32 |
13.5 207 |
| 5.0" | 2.00" | 26.2 207 |
26.2 207 |
26.2 207 |
26.2 207 |
22.5 178 |
19.2 152 |
14.4 114 |
10.0 79 |
7.4 58 |
5.7 45 |
4.5 35 |
22.0 207 |
Specifications
• 1.5" 38.1mm Bore
• 7/8" Rod (22.23 mm)
• stroke from 4 to 48 inches (102 mm to 1219 mm) Longer and custom lengths available on request
PLEASE SEE ATTACHED PICTURES FOR
STANDARD STROKE LENGTHS WEIGHTS AND $ PRICES.
• Port Sizes 9/16" UNO
• 3/4" Female clevis with 3/4" High Tensile steel Pin with R Clips on each end
• Weight 3.5 kg for 4" stroke to 11 KG for 48" stroke
• Force on Extend @3000 PSI is 2.3 Metric Tonne or .76 Tonne Per 1000 PSI
• Force on Retract @ 3000 PSI is 1.5 Metric Tonne or 0.5 Tonne Per 1000 PSI
Materials of Construction
• Steel Barrel, Gland Nut and Clevis
• Hard Chromed High tensile Steel Rod
• High tensile steel pins
• Spring Steel R Clip pin retainers
• Max Working Pressure = 207 BarWe can supply cylinders in many bore, stroke and Port Orientations.
Please send us a question via eBay for different size cylinders and costings.
Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.
Unlike imported cylinders, these are a robust construction with precise tolerances meant for use day in and day out in Australia's harshest conditions.
Each Cylinder is individually Oil Tested at the Factory and comes with a
TWO YEAR (2) WARRANTY
Also Available are Re-Seal kits.
Designed for many hydraulic applications in industry, manufacturing and transport and farming and can be used in Tilt Tray and Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Spliters.
Comes complete with a Female Clevis at each end.
Please email or call us on (07) 5571 6155 with your post code for freight confirmation.
Our postcode is 4211 NERANG,
This item weighs between 7 and 27 KG
Freight; Available for pick up from Brisbane or Melbourne. We will do best freight price we can, however some of these a over 25 kg, requiring pallets etc. If you are in a remote area, freight can be costly. If this applies to you, we will call & discuss options with you
Please call 07 5563 1982 or 07 5571 6155 or send us a question via email to sales@mhfgc.com.au for different size cylinders and costings.
Many types of adaptors threads, hydraulic hose and field fit hose fittings are available please see our other listings.
