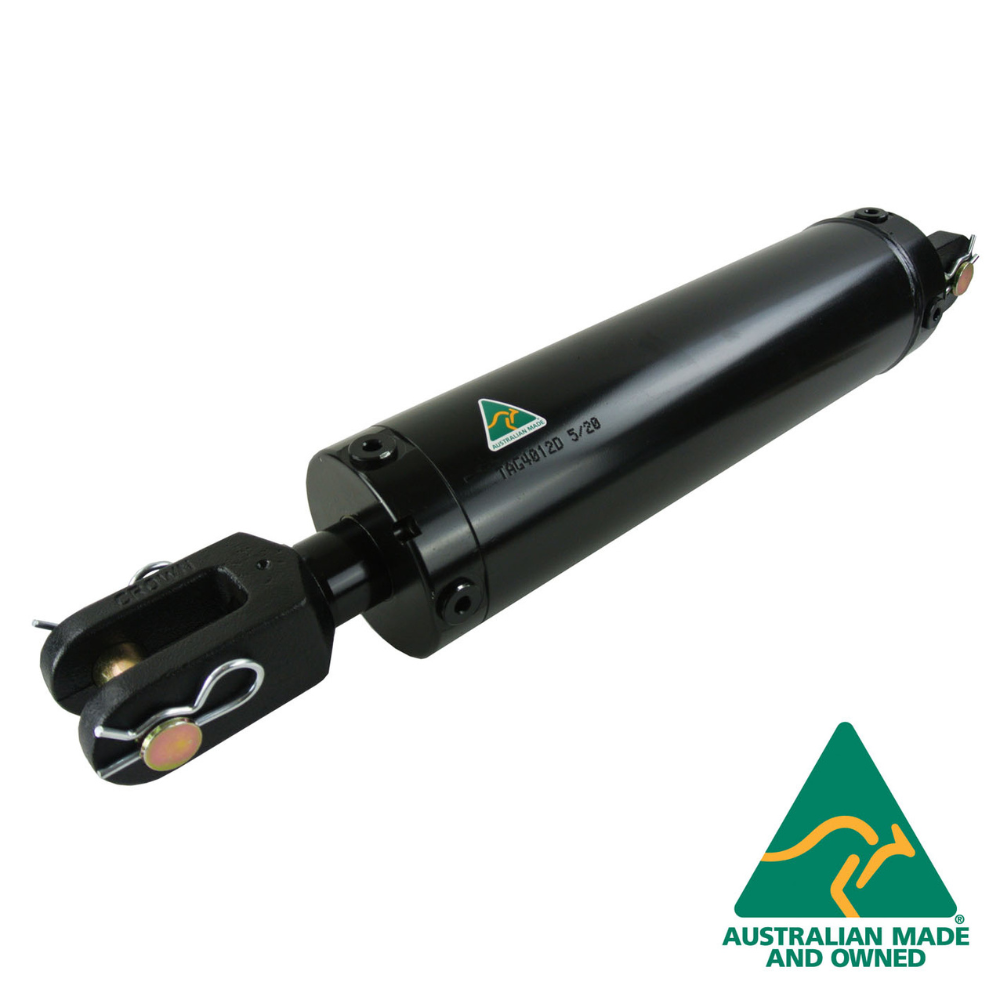

Double acting Hydraulic Cylinder/Ram with 4 inch Bore and 1.75" Rod., Available various strokes from 4" inch to 24 inches

Produces 16 tons force at 3,000 psi (200 bar).

Please Note 12, 16, 18, and 24" stoke cylinders are also available with a 2" diameter Rod at an additional nominal cost

These 4" Bore hydraulic cylinders / ram are MADE IN AUSTRALIA to imperial sizes (the MM dimensions are approximate) Unlike some of the imported cylinders, these are a robust construction with precise tolerances meant for use day in and day out in Australia's harshest conditions.

These Aussie made hydraulic Cylinders also come with a 2 Year warranty.

Seal kits are a stock item.Force 16.5 tonnes @ 3,000 psi (200 bar)

WARNING: Hydraulic cylinders without a hose burst valve, pilot operated check valve or counter balance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

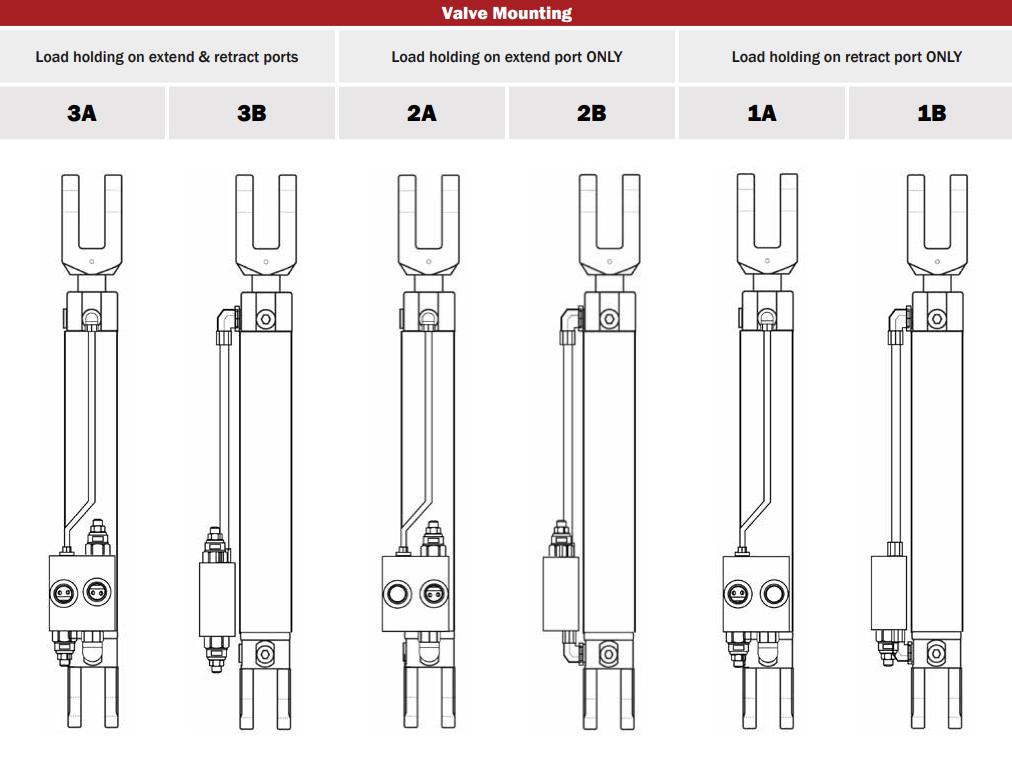

Click Here for added Safety and Control to your Hydraulic Cylinder with a Counterbalance Valve and Pipe (Factory installed when ordered with a cylinder) Or... Order Directly from this Listing (please see options list)

Please Note : Maximum Force on Extension Reduces with Stroke Length and Pressure.

The chart below gives the maximum extension force at full stroke and exceeding these limits may result in rod buckling.

• The values are based on a safety factor of 2 with the cylinder operating vertical and fully guided.
• For horizontal or operating in an arc these values may have to be reduced.

1 kN = 102 kg force = 225 lb force

1 bar = 14.5 psi

Maximum Extension Force in Metric Tons

This sale is for a brand new quality hydraulic cylinder Made in AUSTRALIA.

It is designed for many hydraulic applications eg. Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, Tractors, Farm Implements and Log Splitters.

Dual ports, ie. 2 on 'face' & also 2 at 90°. Comes with plugs to plug 2 unused ports

Each Cylinder is individually Oil Tested at the Factory and comes complete with a Female Clevis at each end.

• Materials of Construction
• Steel Barrel, Gland Nut and Clevis,
• Chromed High tensile Steel Rod
• High tensile 1" steel pins
• Spring steel R Clips
• Max Working Pressure = 200Bar (3000 PSI) 16.5 Tonne Force at @3000 psi
• 3/4 UNO Ports ; Dual ports, ie. 2 on 'face' & also 2 at 90°. Comes with plugs to plug 2 unused ports
• Female clevis at each end

Many types of adapters threads, hydraulic hose and field fit hose fittings available please see our other listings.

Please feel free to call at 07 5563 1982
or email us at Sales@mhfgc.com.au

Emails will be answered within normal business hours (ie: 8.am - 5.00pm M-F)

MM 12/03/2026 weights and dimentions
