Hydraulic Cylinder Extra Long Strokes- 2.5, 3.0 inch Bores

Name: Hydraulic Cylinder Extra Long Stroke 2.5 - 3" | Shop Hydraulics
Brand: Tuff
SKU: TAG EX
Price: 1169.0 AUD
Availability: InStock

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

SKU TAG EX

AU$1 169.00

🔥 EOFY SALE!

was ~~AU$1 620.00~~ Save 28%

Bore, Stroke & Rod Dimensions

2.5" Bore 1500mm Stroke 1.5" Rod

2.5" Bore 2000mm Stroke 1.5" Rod

2.5" Bore 2500mm Stroke 1.5" Rod

2.5" Bore 3000mm Stroke 1.5" Rod

3" Bore, 1800mm Stroke, 2" Rod,

3" Bore, 1900mm Stroke, 2" Rod,

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

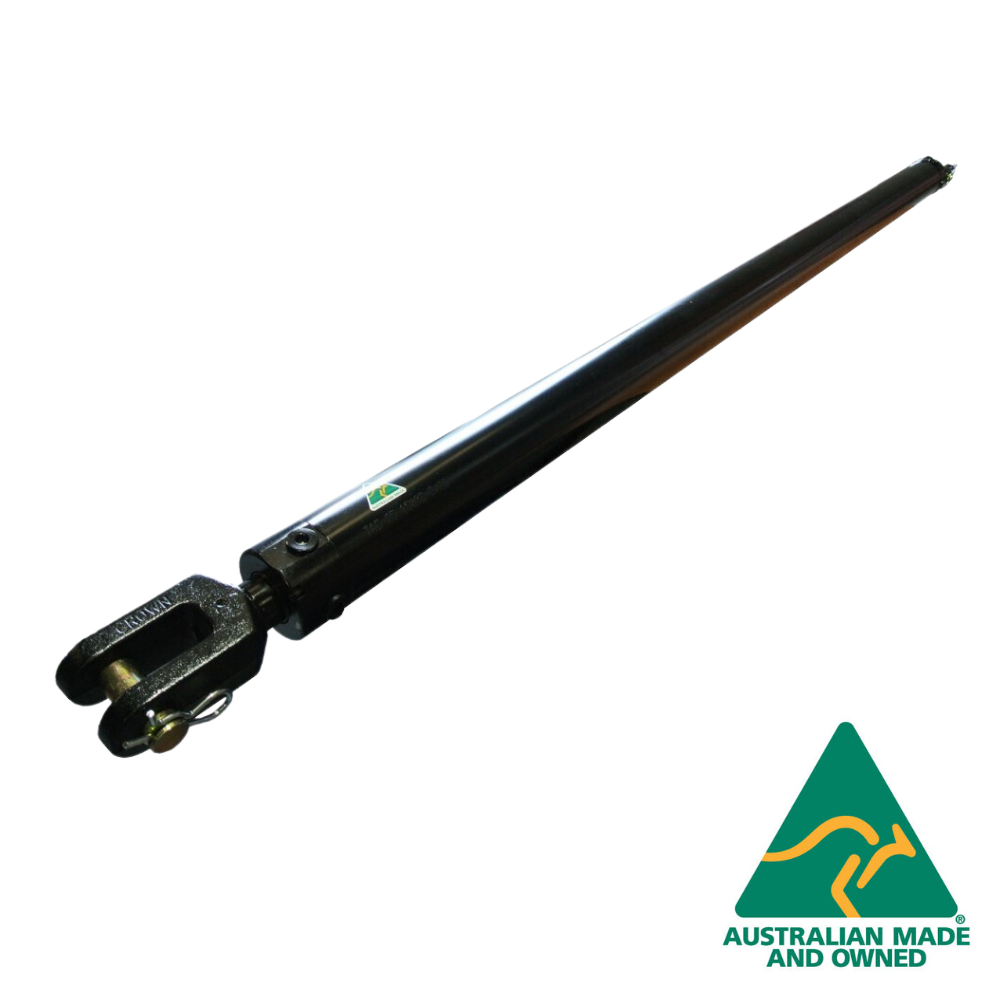

Hydraulic Cylinder Extra Long Strokes- 2.5, 3.0 inch Bores

Store/Cylinders and Rams for Hydraulics/Cylinders and Rams Australian Made

Product Details

Brand: Tuff

Weight: 45.00 kg

2.5, and 3.0" Inch Bore Hydraulic Cylinders with Extra Long Strokes from 1,500 to 3,000 mm with optional Larger Rod Diameters.

These Australian-made hydraulic cylinders are custom-made to order to your specific stroke requirements and come with a generous 2-year warranty.

They come with 'Dual' 3/4 UNO ports at each end. (Dual means that there is an additional alternate port at 90° to main port)

This makes fitment more flexible. It is designed for many hydraulic applications and especially for tilt tray trucks and some cranes.

Please see open/closed dimensions below for some available of the shelf lengths.

Each Cylinder is individually Oil Tested at the Factory and comes complete with a Female Clevis at each end,

Click Here for added Safety and Control to your Hydraulic Cylinder with a Counterbalance Valve and Pipe (Factory installed when ordered with a cylinder)

Please be aware that these 3" bore cylinders can weigh up to 60 kgs.

Please message us with your required delivery postcode for an accurate freight cost confirmation.

WARNING: Hydraulic cylinders without a hose burst valve, pilot-operated check valves or counterbalance valve directly mounted to the cylinder will not meet Australian Standard AS1418.8, nor occupational health & safety rules.

TAG 25-1500D	Bore Ø 2.5”/63.5mm	Stroke 1,500mm	Pin Centers Retracted 1,811.15mm	Pin Centers Extended 3,311.15mm
	Rod Ø 1.5”/38.1mm
TAG 25-2000D	Bore Ø 2.5”/63.5mm	Stroke 2,000mm	Pin Centers Retracted 2,311.15mm	Pin Centers Extended 4,311.15mm
	Rod Ø 1.5”/38.1mm
TAG 25-2500D	Bore Ø 2.5”/63.5mm	Stroke 2,500mm	Pin Centers Retracted 2,811.15mm	Pin Centers Extended 5,311.15mm
	Rod Ø 1.5”/38.1mm
TAG 25-3000D	Bore Ø 2.5”/63.5mm	Stroke 3,000mm	Pin Centers Retracted 3,311.15mm	Pin Centers Extended 6,311.15mm
	Rod Ø 1.5”/38.1mm
TAG 30-1800D-200	Bore Ø 3.0”/76.2mm	Stroke 1,800mm	Pin Centers Retracted 2,111.15mm	Pin Centers Extended 3,911.15mm
	Rod Ø 2.0”/50.8 mm
TAG 30-1900D-200	Bore Ø 3.0”/76.2mm	Stroke 1,900mm	Pin Centers Retracted 2,211.15mm	Pin Centers Extended 4,111.15mm
	Rod Ø 2.0”/50.8 mm

We can supply cylinders in many bore, stroke and Port Orientations.

Being a Hydraulic service centre, we stock most types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.
