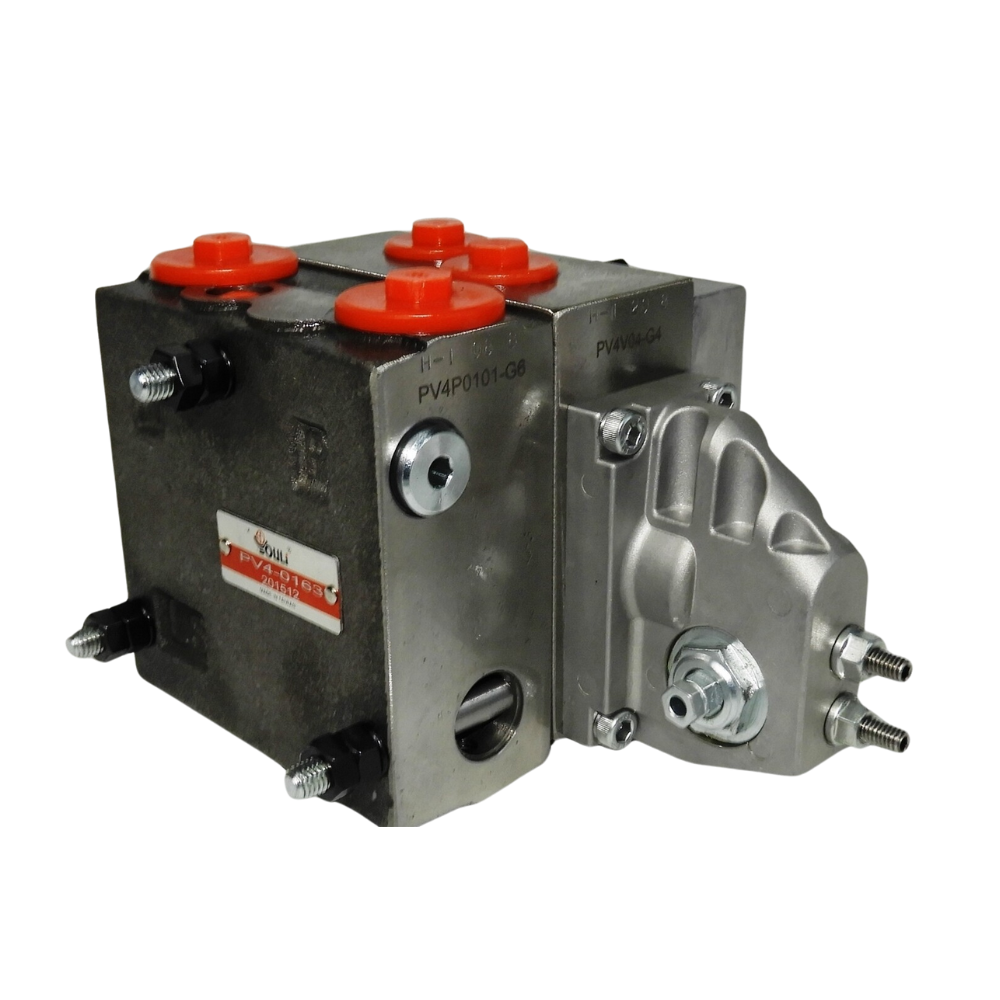

Proportional Sectional Valve flows to 130 Lt/min per spool at 5,000 psi, max Oil supply feed 240 Lt/min.

Please Note
This Listing is still under development
Please Call QLD (07) 5563 1982 during Buisness Hours
8 AM to 5 PM AEST for detailed pricing and information.

This can be a Single to Multiple bank (or Sections) valve,

• It can be manual Lever controlled with a or without friction detent
• and with 11 to 30 Volt DC Electrical proportional
• or with Hydraulic Pilot Actuators.

This valve is listed here as a basic example of what can be offered.
Far more sophisticated options are available please read below or
Call us on QLD time 07 5563 1982 or 1300 1 HOSES

Click Here if you are Looking for Something Cheaper simpler but still with sectional design?

This valve was supplied oil from a fixed displacement gear pump.

This price is for a valve just as described above.

Many more options are available including

• Electronic control with PWM (Pulse Width Modulation)
• Electrical Controllers
• Lever boxes with spring center as well as A and B Stroke adjustment.
• Pilot Oil Supply
• Load sense,
• Pilot Controllers
• Port Relief Shock and Suction Valves

To tailor a package & price, we require the following information. Please call or email it through for a quote

• Fixed displacement (gear pump) or a variable flow pump?
• If variable flow is it load sense, pressure compensated?
• What type of spool is required, Cylinder or Motor spool? How many spools?
• What flow rate per spool ( spools starting from 5 lpm up to 130 lpm )
• Does the valve require manual levers or 12/24 volt electrically proportional coils
• Do spools require Oil Pilot provision (ie Excavator Joy sticks)
• Do spools require pressure compensation valves?
