Radio Remote Control Unit 4 To 12 Functions, IP66 Ingres Protection, Operating Frequency 433.050MHz ~ 434.575MHz

The Flex ECO wireless control system provides a cost-effective solution to the restrictive use
of hardwired pendants. These durable and rugged radio Remote Control Units
are ideal for use in lifting applications including chain hoists and small cranes.

The ergonomic and lightweight transmitter is available in 4, 6, 8, and 12-button options.
This unit is an On/Off type, we have proportional remotes in other listings.

Replacement Transmitter handpiece are always in stock in case of loss.

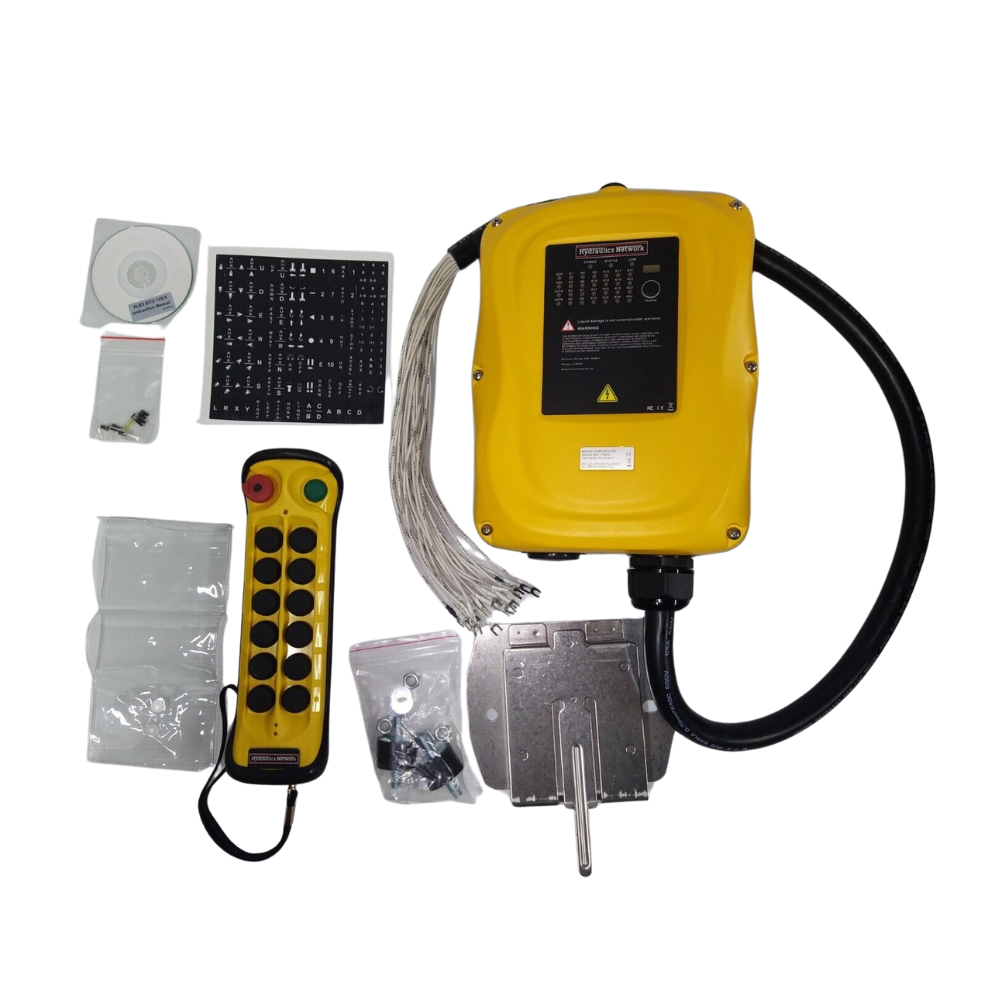

Contents included in this remote control Kit :

• 1 transmitter,
• 1 receiver with pre-mounted
• 1.3 m output cable,
• receiver mounting bracket,
• spare fuses,
• pushbuttons label,
• 2 AA alkaline batteries,
• owner's manual and diagram of settings.

Ideal for use with tilt tray trucks & many other hydraulic valves

Transmitter & Receiver enclosures are IP66 Rated,

Transmit Frequency

You receive both the receiver & the transmitter.
Field programmable via dip switches.

All units are supplied with a rubber guard.
It comes with wiring leads.

• Sensitivity: -116 dBm
• Antenna: internal (standard), optionally external (50 Ω, TNC connector)
• Relays: 3 A / 250 VAC
• Supply voltage (± 10%): 12-24 VDC, 24/42/48 VAC, 110/230/380/450 VAC
• Consumption: 8 resp. 22 W
• Optical indication: LEDs
• Connection: mounted and connected 1.3 m output cable
• Cable entry: cable clamp
• Fuses and fuses: 2 fuses for receiver supply (value according to the supply voltage),
• 5 A fuse for the MAIN relay, common 5 A fuse for each 4 switching relays
• Working temperature: -25°C/+75°C
• Protection: IP66 (NEMA 4)
• Mounting: metal bracket
• Receiver Flex ECO 4, 6: 196×149×85 mm, 1,5 kg (with cable)
• Receiver Flex ECO 8, 12: 260×204×83 mm, 2,5 kg (with cable)

quality electronics such as Silicone chips & computer processors.These controllers can be programmed at Hydraulic. Online to achieve different requirements

Please send us a message for more information.
