Standard configuration is a double acting cylinder spool with 3 position, spring return to centre lever. Also available with Motor spool, Single acting, detent kits, plus full electric option.

Series Q75.

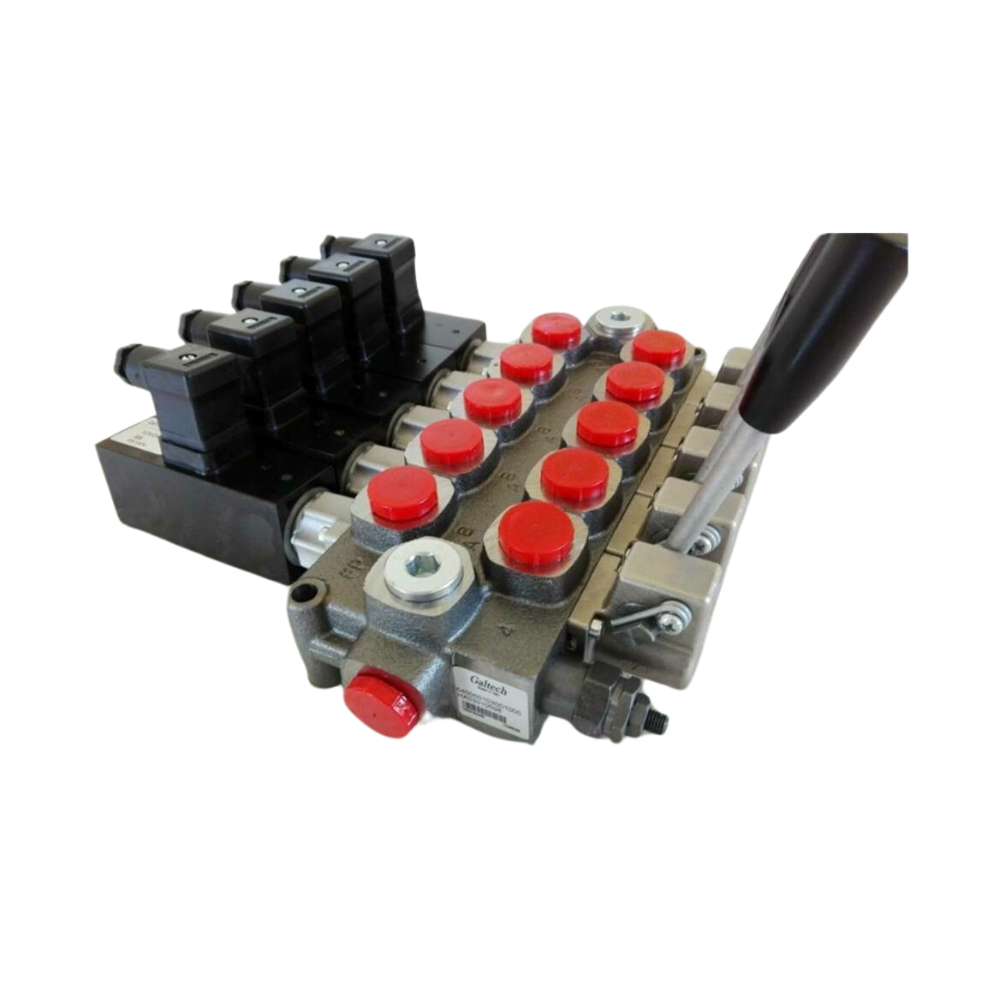

All sections on these Q-75 monoblock valves are double acting with a three position spring return kit c/w levers and adjustable main relief (81-200 Bar as standard) set at 150 Bar / 2100Psi standard.

Options also include full 12v/24v electrically operated. This valve with electric add ons, will be ready to hook up to a remote control unit. We have put in the option to have just 3 functions to hook up to the remote or an option for all 5 functions. Many tilt trays use lever controls for the car cradle, & remote for tilt, slide & winch.

Powerbeyond sleeve, gives the option to run a secondary (smaller flow) valve downstream, by turning the 'T' port into a pressure port for additional valve to feed off. With the power beyond sleeve, they are assembled onto the “tank” port of the valve – this allows it to carry through the high pressure. When you assemble this sleeve, you would also have to remove the plug on top of the valve block for use as a tank line.

Technical Data

- 1/2" BSP service ports

- 1/2" BSP P Ports

- 3/4" Bspp T Port

- Max Flow:90l/min

- Max Pressure:300 Bar

- Max Tank Pressure: 25 Bar

- Operating Temperature: -10°C + 80°C

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
