10 M coil Hydraulic Hose 2 Wire Size 1/4, 3/8, 1/2, or 3/4 inch bore 3,000-5,800 psi

SKU SAER2AT-04_10
AU$91.00$57.74
Best Seller
SAE100R2AT
In stock
1

Spend AU$300.00 to enter our Holiday Parts Bonanza Competition

Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
10 M coil Hydraulic Hose 2 Wire Size 1/4, 3/8, 1/2, or 3/4 inch bore 3,000-5,800 psi
Product Details
Brand: ENGMATTEC
Weight: 4.00 kg

WE ONLY HAVE TAIPAN & GATES 1/4" IN STOCK UNTIL MARCH, YOU WILL RECIEVE TAIPAN 1/4" WRAPPED COVER WHEN PURCHASING THIS LISTING.

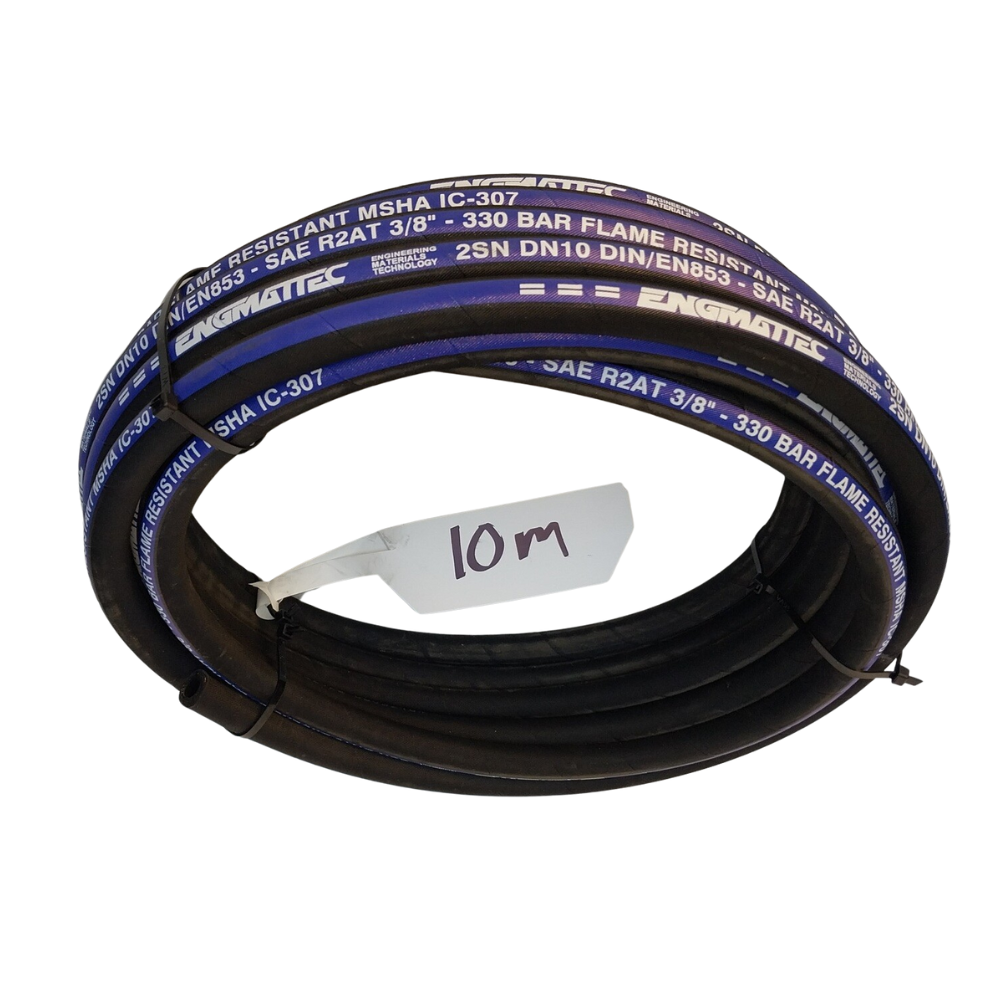

10 m coils of SAE 100R2 two wire Hydraulic hose in either 1/4" 3/8" 1/2" or 3/4 " inch Inside Diameter.

Flexible with High working Pressures from 3,000 to 5,800 psi (215 to 400 bar) depending on hose bore diameter.
High Temperature resistance up to 120°C intermittent use and 100°C continuous duty.

Made from Synthetic rubber inner tube, followed by Two layers of braided high tensile steel wire reinforcement
& then wrapped in an Oil, Ozone, Weather, and abrasion-resistant synthetic rubber outer cover.
ENGMATTEC Hydraulic Hose is good for Oil, Lubricants, Water, and Compressed Air.

EngMatTec hydraulic hose offers far better abrasion resistance than most brands because we specify and insist on
a tough Wrapped Outer Cover and not the Softer Extruded (smooth cover) that most manufacturers and distributors now use.
We have found that the soft and smooth outer covers are just not up to the job on most applications where there is a combination of vibration, articulation, dust, dirt, and sand.

(Smooth cover hydraulic hose does however have a small advantage in saltwater marine environments as it seems to have
a longer work life if carefully installed and protected. We do usually specify the use of a premium and expensive smooth cover hose for
specifically for saltwater marine installations and applications)

Size ID (inches) ID (mm) OD (mm) Max. Working Pressure Min Burst Pressure Min Bend Radius
100R2AT-04 1/4" 6.4mm 14.8 mm 5,800 PSI 400 BAR 23,200 PSI 1,600 BAR 100mm
100R2AT-06 3/8" 9.5mm 18.7 mm 4,800 PSI 330 BAR 19,200 PSI 1,320 BAR 130mm
100R2AT-08 1/2" 12.7mm 22.2 mm 4,000 PSI 276 BAR 16,000 PSI 1,103 BAR 200mm
100R2AT-12 3/4" 19mm 29.3 mm 3,100 PSI 215 BAR 12,400 PSI 860 BAR 240mm

Two Wire Hydraulic Hose Means that the Hose is reinforced with two Layers of Braided High Tensile Steel Wire.

The High Tensile Steel braided wire reinforcing is designed to withstand High Pressures.
Depending on the hose bore size, working pressures will range from
3,000 to 5,800 psi (215 to 400 bar) yet the braided wire will still allow the Hydraulic Hose
to move and be flexible when operating under these high pressures.

The AT after the SAE100R2 means that the hose has a higher resistance to
elevated temperatures up to 120 °C intermittent Use.

These 10-meter coils of Hi Temp Hydraulic Hose are manufactured to Meet or Exceed
American SAE 100R2AT / and Euro Standard DIN EN 853 2SN
Temperature Rated from -40 to +120 °C
Available in the following Hose Bore Sizes 1/4", 3/8", 1/2" & 3/4"

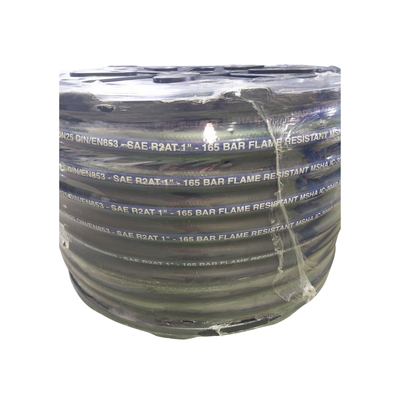

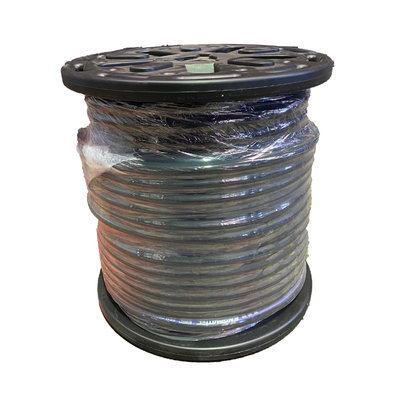

Also available are coils of 20-meter, 50-meter, and reels of 100-meter.

EngMatTec is Compatible with both reusable & Crimp on hosetails.

EngMatTec is the Abbreviation for Engineering Materials and Technology
We Insist our hose is manufactured with the Best Engineering Practices,
Is made from Materials designed for Longevity and Strength,
and the Equipment used to manufacture our hose is Technologically advanced.

All sizes of ENGMATTEC 100R2AT Hydraulic hoses (including 1/2" DN12) Hose are also fully compatible,
interchangeable and or as a direct replacement for the following brands of hose.

  • RYCO AVENGER T24A, T26A T28A and T212A RYCO DIEHARD T24D T26D T28D and T212D Non-Skive Hoses.
    • GATES 4CR2, 6CR2, 8CR2, 12CR2, AND, 4G2, 6G2, 8G2, 12G2, and, 4G2H, 6G2H, 8G2H, 12G2H.
  • EATON GH195 AQP HI-IMPULSE hoses
  • MANULI FLUICONNECTO 2SN FL2T04, FL2T06, FL2T08, FL2T12.
  • PARKER 301SN - 4, -6, -8, -12 NON SKIVE HOSE.

  • PIRTEK SAE 100R2AT, SIZES R2AT-04, R2AT-06, R2AT-08, R2AT-12.
  • TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN, SIZES HYD-R2T-04SF, HYD-R2-06SF, HYD-R2-08SF. HYD-R2-12SF
  • ENGMATTEC HYDRAULIC HOSES 100R2AT 1/4"DN06, 3/8"DN10, 1/2" DN12 and 3/4" DN20 Hose can also be used with the following hose fittings
  • RYCO BITELOK ONE-PIECE CRIMP NON SKIVE T200 AND T700 hose tails
  • EATON TTC / Z Series braided hose one-piece bite the wire style hose fittings.
  • Southcott Super Crimp S series stems with FNP-04,06,08,12 ferrules as well as Ezi-Crimp Non Skive One Piece Series E fittings.
  • CHILD FIELD FIT COUPLINGS Series RMB, RFB, RMJ, RFJ, with BN2-04, 06, 08,12 non skive Bodies.
  • RYCO FIELD ATTACHABLE L SERIES L00-04, -06,-08, -12 FERRULES and 600 SERIES INSERTS.
  • TAIPAN 100R2GP-04, -06, -08, -12 AHF and 100R2-08AHF hose and K04, K06, K08, AND K12 series one piece non skive hose tails and or Field Attachable D04,06,08,12 Tails and D2-04,-06, -08, -12 Bodies.

This hose is Certified to work without failure a minimum of 200,000 Impulse Cycles (equivalent to almost 1000 excavator earth moving hours) at 133% of maximum pressure (4820 psi) and at 100% of maximum temperature 120 °C.

Use this hose when you want a flexible connection between two moving components e.g. Rams and motors on Earth Moving Manufacturing Transport and Marine equipment.

ENGMATTEC Hose is Fully Imported and made to our strict specifications that meet or exceed (Society Of Automotive Engineers) Specifications SAE 100R2AT MSHA (Mine Safety Health Administration) certification.
We have used this excellent hose extensively to make effective repairs and new installs to all sorts of equipment from our mobile hydraulic service trucks. It has a great tough outer cover, yet is very flexible for ease of fitting. This hose is a quality product, beware of inferior hydraulic hose products.

SAE 100R2 AT – 08 NON SKIVE HOSE (1/2" Two Wire)

Application

High pressure service with petroleum base hydraulic fluids, water, Air, Water-glycol, water-oil, fire resistant hydraulic fluids, hot oil grease, lubricants, crude and fuel oils. For air applications above 100 PSI the cover should be pin pricked.

Need another hose size, field fit reusable fittings couplers and or adaptors for your application?

Just send us a message with any questions you may have.

Specifications

Pressure Range (1/4 inch 100R2AT-04)

Working Pressure: 5,800 PSI (400 bar)

Burst Pressure: 22,000 PSI (Minimum)

Range of Temperature

-40⁰C to + 120⁰C

Minimum Bend Radius

100mm

Weight

0.3 KG/Mtr


Please send or call us on 07 5563 1982 or email us at sales@mhfgc.com.au

Additional information about us...

Tax invoices are supplied with every purchase

Messages will be answered within normal business hours (ie: 7.30am - 4.00pm M-F Australian Eastern Standard Time)


Please send us a message for any questions you may have.

Best regards,
From the team at
Hydraulic.Online
