Ideal for Trucks, Small Cranes, Beavertails and Motor Homes, and Recreational Vehicles these solidly built Hydraulic Landing or Stabiliser legs are Australian-made units.
Features include double-acting cylinders that will allow for controlled Raising, Lowering, and leveling of heavy loads.

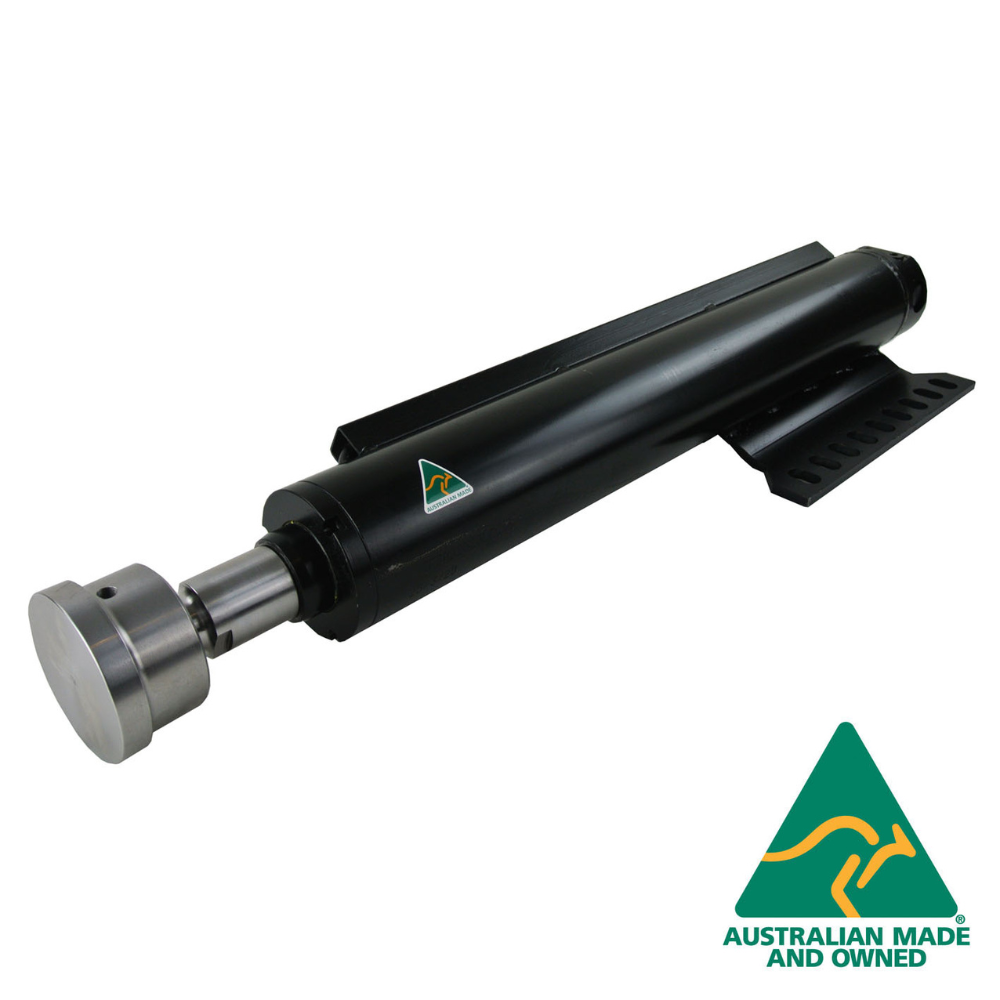

These stabilizers, Landing Levelling Legs come standard with a built-in dual pilot check valve (zero creep load hold valves) and a thick fully welded, and predrilled mounting plate as shown in the photos below.
The Standard 3" bore cylinders have a robust 2" center rod to absorb side loads. They also come complete with the swivel foot as per photos.

Lifting Range or Strokes Available in 16"(406 mm) , 20"(508 mm) & 24" (609 mm) Strokes

The oil Inlet is 9/16" UNO ports.

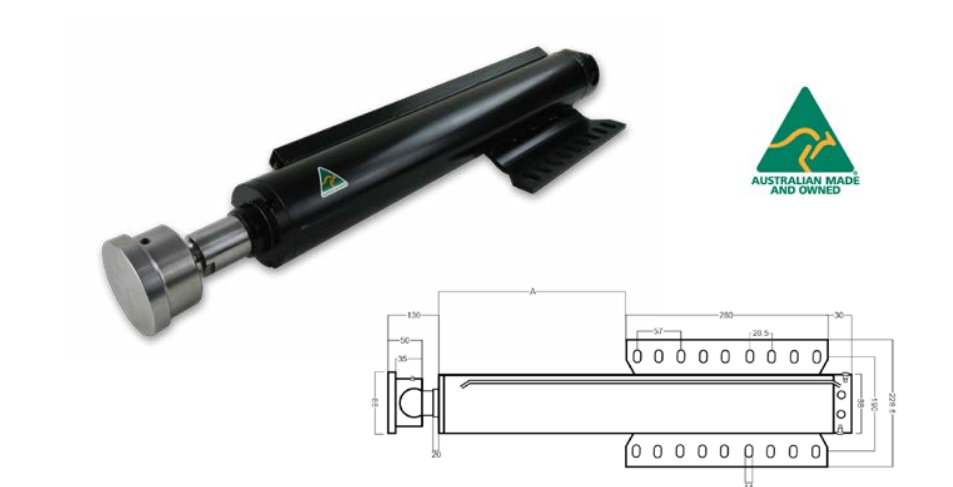

The mounting plate is pre-drilled with multiple holes and is 8mm thick
The maximum load is 9 tonnes each & maximum working pressure is 200 bar / 3000psi.
Postage as an indication cost will be $40. However some outlying properties etc may need to be sent by alternative transport, & very remote areas may incur an additional fee. We will contact you if this applies
