Straight ORFS Female Field Fit Reusable Two Piece Hydraulic Hose Fitting

O'ring face seal is a US thread, common on smaller Bobcat, Caterpillar & other brands of earthmoving Equipment.

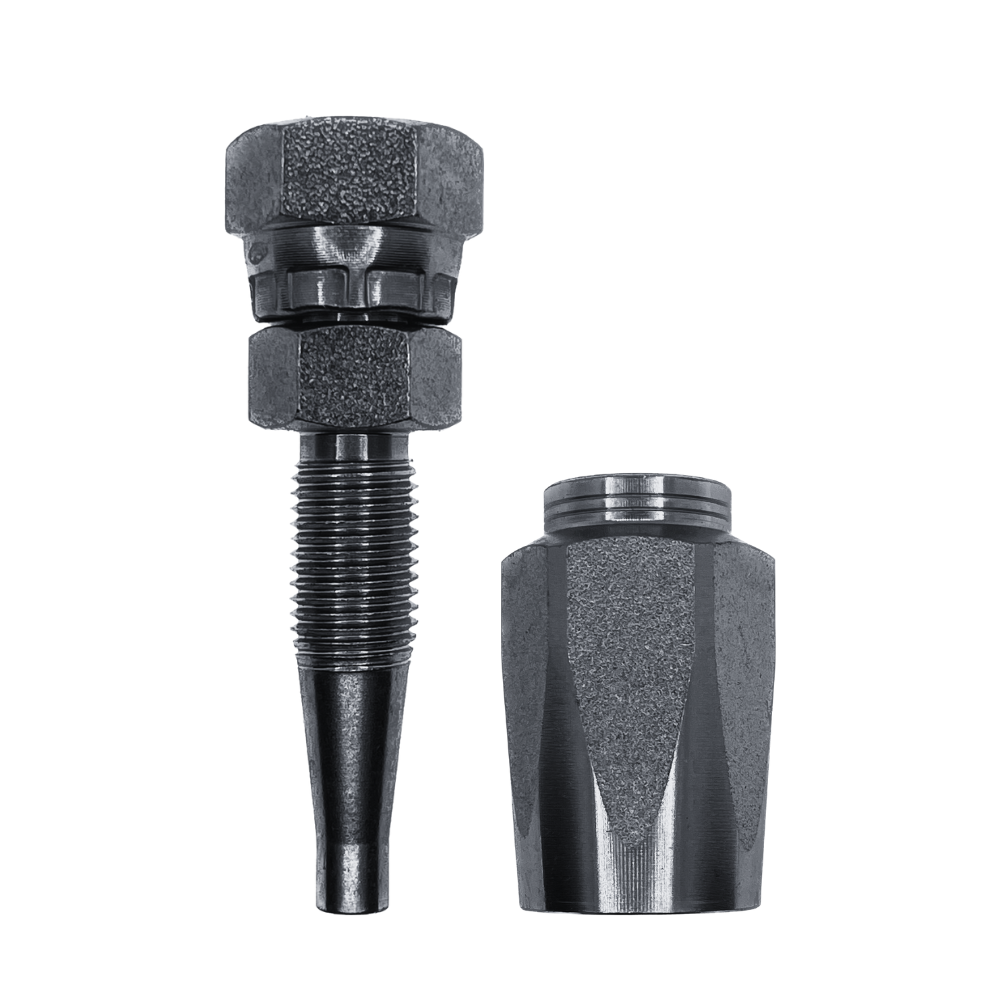

Field Fit Hydraulic Hose fittings are a two (2) piece assembly made from Steel. You will receive one ferrule with every hose tail you order.

Using basic hand tools and following a simple assembly procedure the 2 pieces are screwed Onto and Into a Hydraulic Hose.

When fully assembled, the connection is rated to work safely up to the full pressure rating of the hose.

Field fit reusable hydraulic hose fittings were designed to repair damaged Hydraulic Hoses or to be used in new Hydraulic Hose assemblies, without the need to use expensive equipment.

Made from zinc-plated steel, this is a DIY and cost-effective solution because they can be assembled with simple hand tools onto two wire hydraulic hoses manufactured to SAE 100R1 and SAE 100R2 Specifications.

Option at no extra cost field fit body to suit SAE 100R1, one wire hose. Please check the ferrule option on the purchase if One (1) Wire body is required, otherwise, Two (2) wire body will be shipped.
Each order comes with easy-to-follow assembly instructions.

To buy multiple quantities of different sizes:

1. Select the button on the item you want to purchase then enter the quantity at the bottom of the list (you can also use the up and down arrows to add or subtract quantities.
2. Then click 'add to bag’, you can then select another item and repeat the procedure.
3. When finished click Go to Checkout box where you can review your items, and edit quantities or remove them altogether.
4. If you are happy with your selection you can move to checkout or click the link at the bottom of the page that states “Looking for more? Continue shopping.
5. Continue Shopping will take you back to the Category of Products you were looking for.

Please send us a message for more information.
