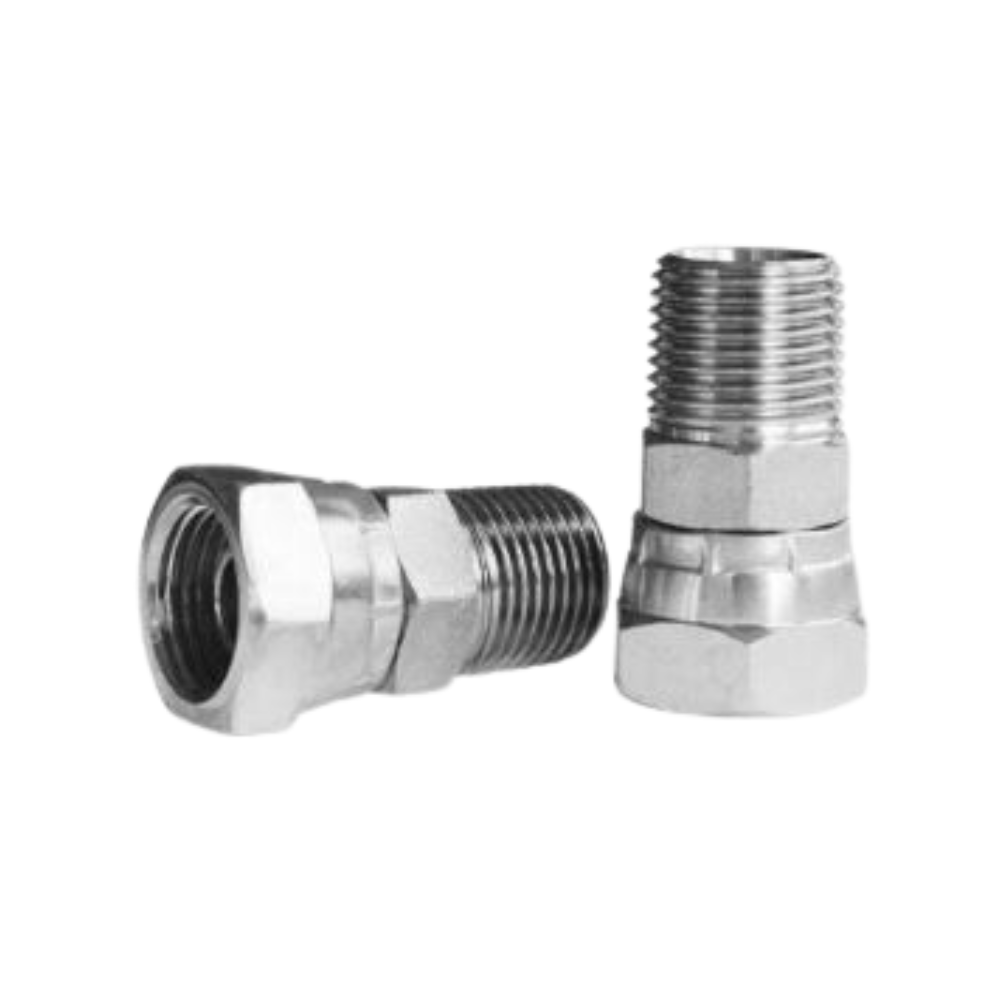

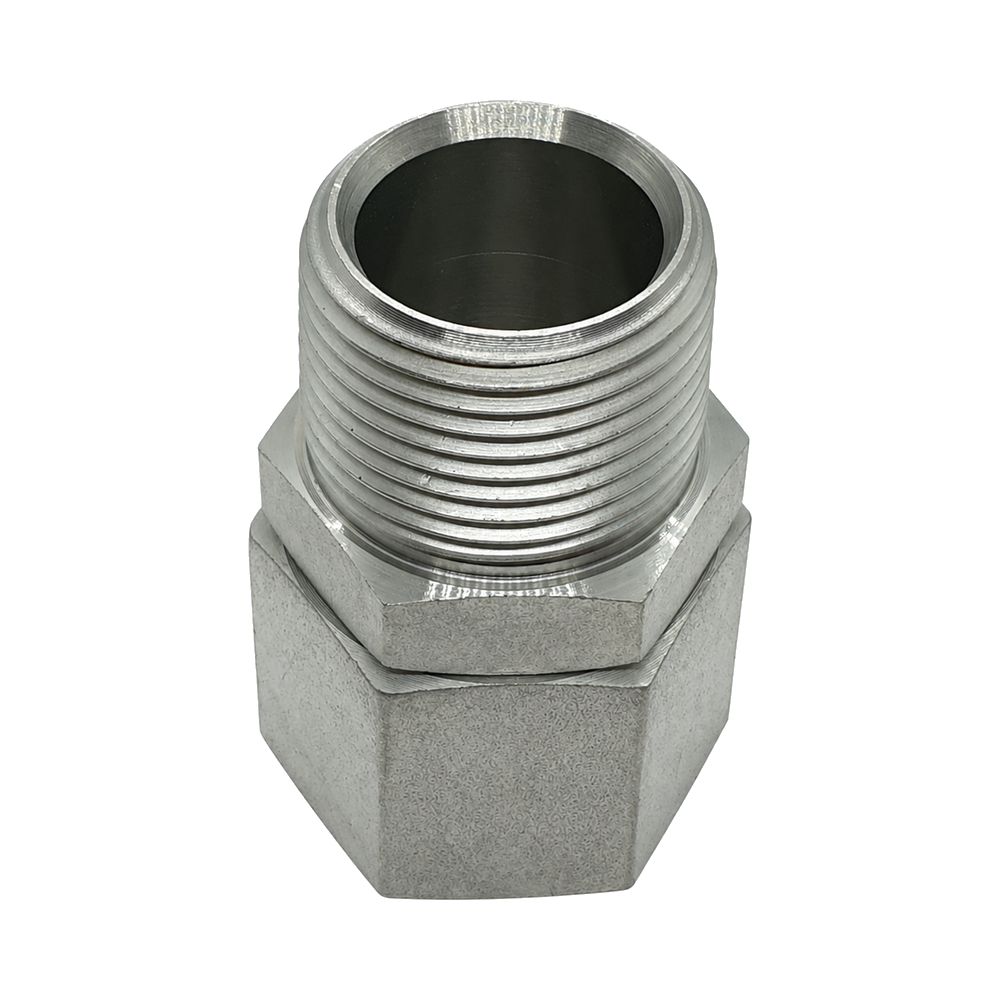

BSP Tapered Male x JIC 37° Swivel Female Straight Adaptor

BSP tapered male one end, JIC 37° swivel female the other. One of the highest-turnover adaptors we stock, because it puts a JIC hose straight into a BSPT port.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• The JIC swivel female seals on its 37° cone and turns, so the hose is never wound up during assembly.
• The BSPT male seals on the thread and needs sealant. Keep it off the cone.
• Unequal sizes are stocked, so match the port and the hose end separately.

Technicians Advice

Do the tapered male end first and wipe your hands before you touch the cone. Sealant on a 37° seat holds under test and seeps in service, and that is the leak that costs you a second trip.

Where You’ll Find It

• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

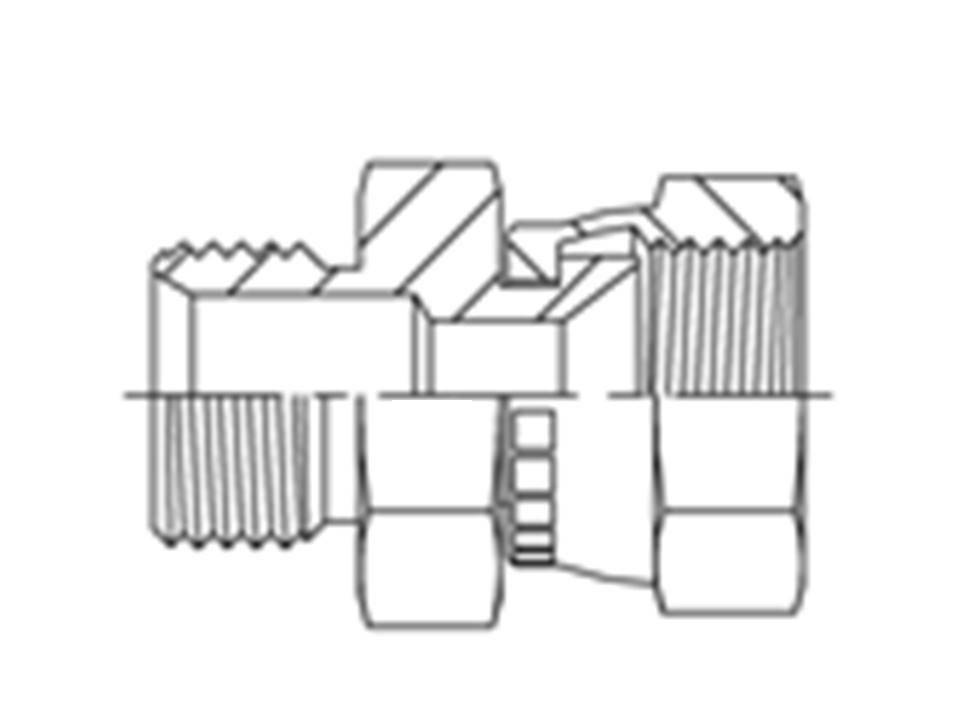

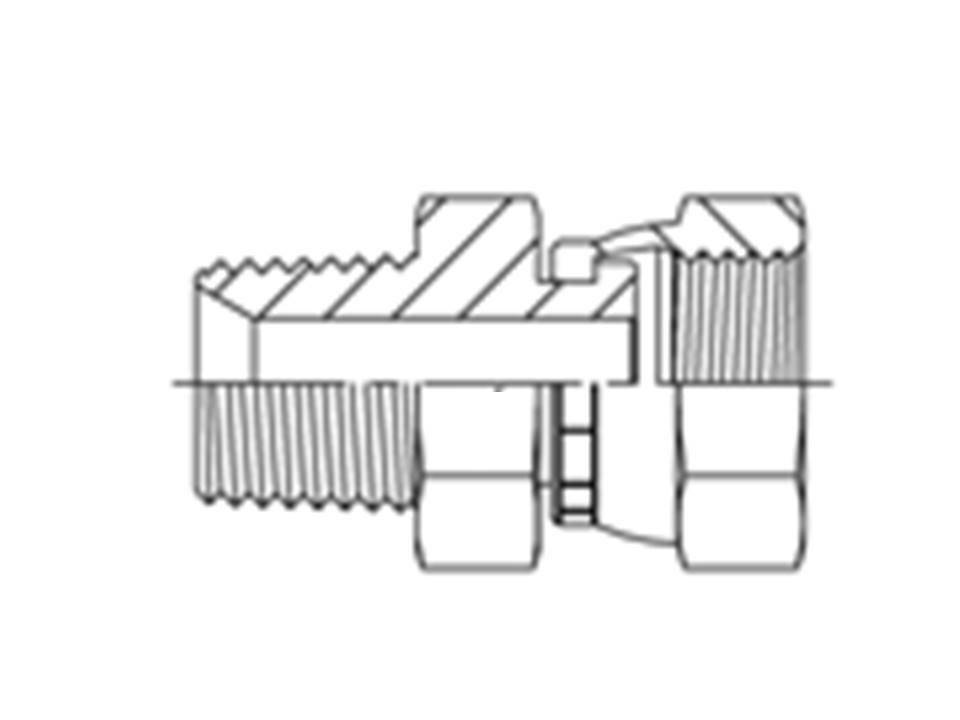

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BTM-JIF-0207	1/8" BSPT	7/16" JIC	24mm	14.3mm	12mm	Mild steel	Plated finish
BTM-JIF-0407	1/4" BSPT	7/16" JIC	28mm	14.3mm	14mm	Mild steel	Plated finish
BTM-JIF-0409	1/4" BSPT	9/16" JIC	29mm	17.5mm	14mm	Mild steel	Plated finish
BTM-JIF-0609	3/8" BSPT	9/16" JIC	30mm	17.5mm	17mm	Mild steel	Plated finish
BTM-JIF-0612	3/8" BSPT	3/4" JIC	31mm	19.1mm	19mm	Mild steel	Plated finish
BTM-JIF-0614	3/8" BSPT	7/8" JIC	34mm	22.2mm	24mm	Mild steel	Plated finish
BTM-JIF-0809	1/2" BSPT	9/16" JIC	36mm	17.5mm	22mm	Mild steel	Plated finish
BTM-JIF-0812	1/2" BSPT	3/4" JIC	38mm	22.2mm	22mm	Mild steel	Plated finish
BTM-JIF-0814	1/2" BSPT	7/8" JIC	38mm	25.4mm	24mm	Mild steel	Plated finish
BTM-JIF-0817	1/2" BSPT	1.1/16" JIC	42mm	32mm	30mm	Mild steel	Plated finish
BTM-JIF-1217	3/4" BSPT	1.1/16" JIC	42mm	32mm	30mm	Mild steel	Plated finish
BTM-JIF-1221	3/4" BSPT	1.5/16" JIC	45mm	38mm	36mm	Mild steel	Plated finish
BTM-JIF-1617	1" BSPT	1.1/16" JIC	47mm	32mm	36mm	Mild steel	Plated finish
BTM-JIF-1621	1" BSPT	1.5/16" JIC	50mm	38mm	36mm	Mild steel	Plated finish
BTM-JIF-2026	1.1/4" BSPT	1.5/8" JIC	57mm	50mm	46mm	Mild steel	Plated finish

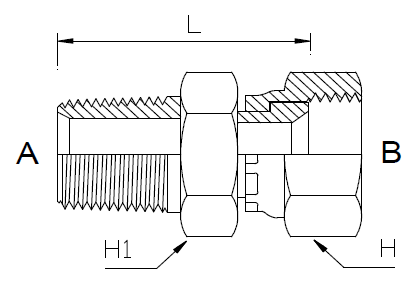

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

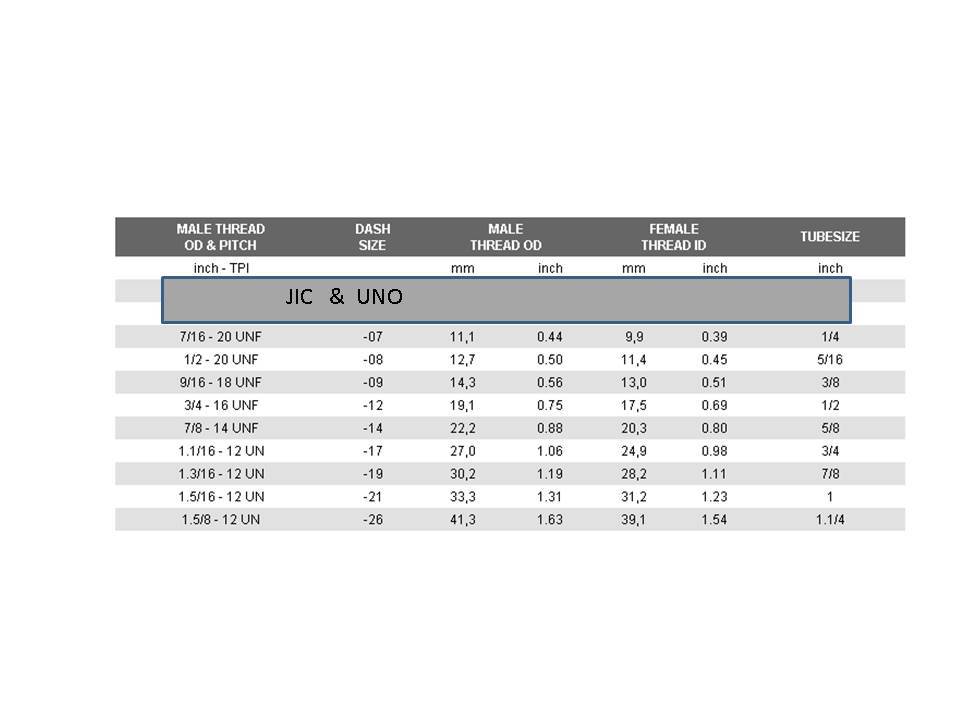

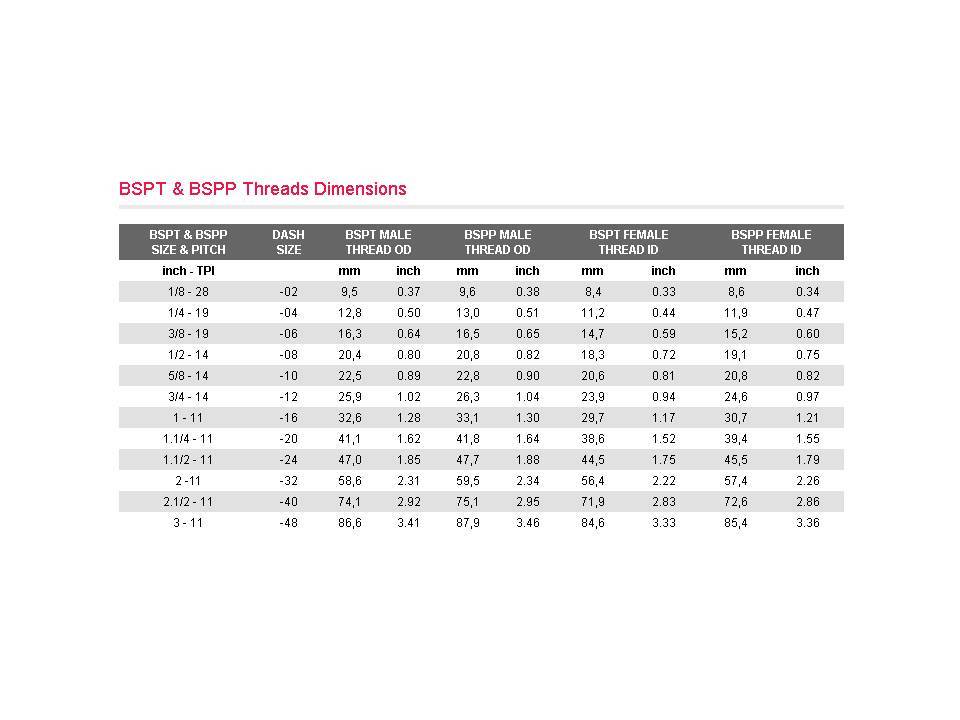

📄 Thread Identification Chart (PDF)
