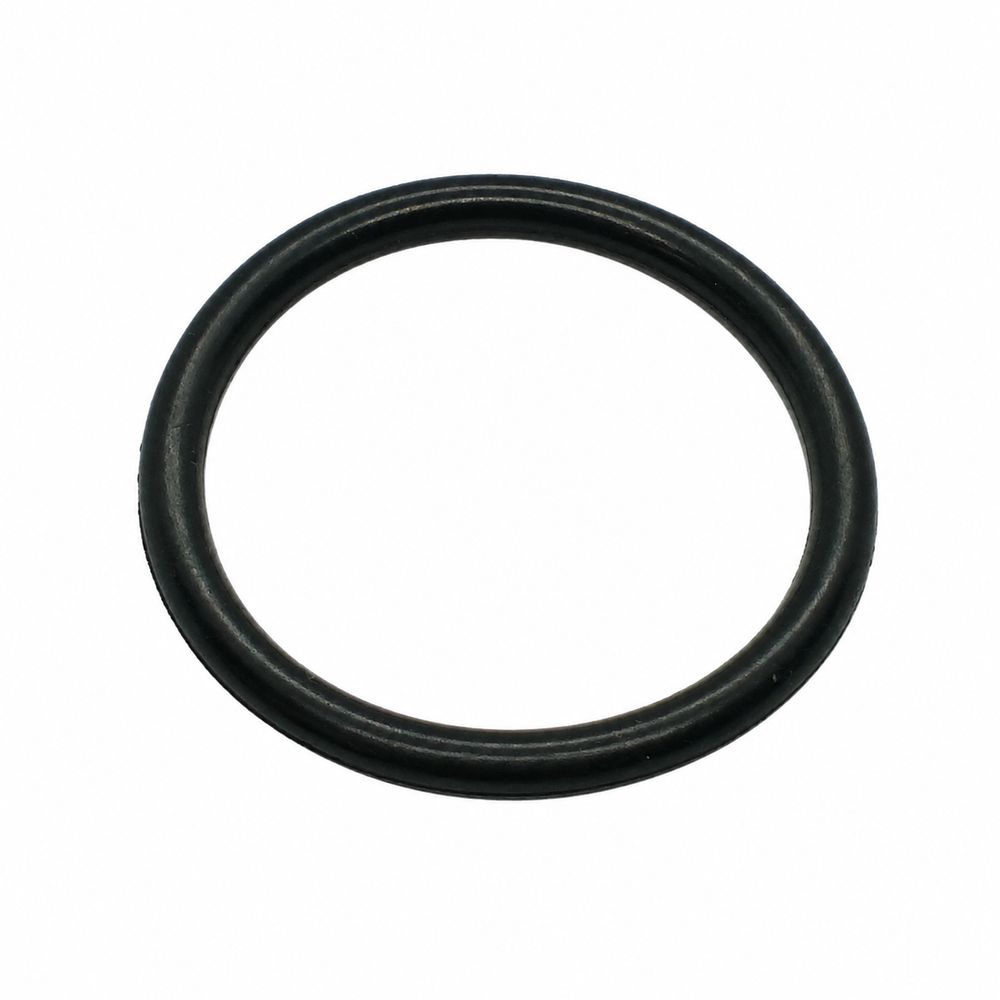

O-Rings ORFS 9/16" to 2"

Face seal O-rings for ORFS (O-Ring Face Seal) fittings – the ring sits in the groove machined into the fitting face and seals flat against the mating sleeve. 8 sizes from 9/16" to 2". Pick your size below and it is on its way.

Ways to buy:

• Off the shelf – 8 ORFS sizes from 9/16" to 2" in the picker below.
• Need the fittings themselves? See our ORFS adaptor listings.

Pick your size

What is in the box

One O-ring per unit price. Quantity pricing applies automatically at 5, 10, 25 and 50 units.

Specifications

How to choose

• Size is the ORFS thread size of the fitting (9/16", 11/16", 13/16" and up) – check the dash size stamped on the nut if unsure.
• Replace the ring at every rebuild – they are cents against an oil-soaked engine bay.
• Ring keeps blowing out of the groove? The joint was made up loose – see the advice below.
• Mixed fleet? Grab a spread of sizes; ORFS rings are the first thing you run out of.

Technicians Advice

ORFS only seals when the faces meet flat and square – hold the fitting body with a second spanner so the hose does not twist as you torque the nut. If a ring keeps escaping the groove, the groove edge is burred or the joint was run up with the ring dry: a smear of clean oil holds the ring seated while you make up the joint. Never re-use a ring that has been flattened; the face witness line tells you it has done its job once already.

Complete your setup

BSPP O-RingsSAE Flange O-RingsUNO Boss O-Rings

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
