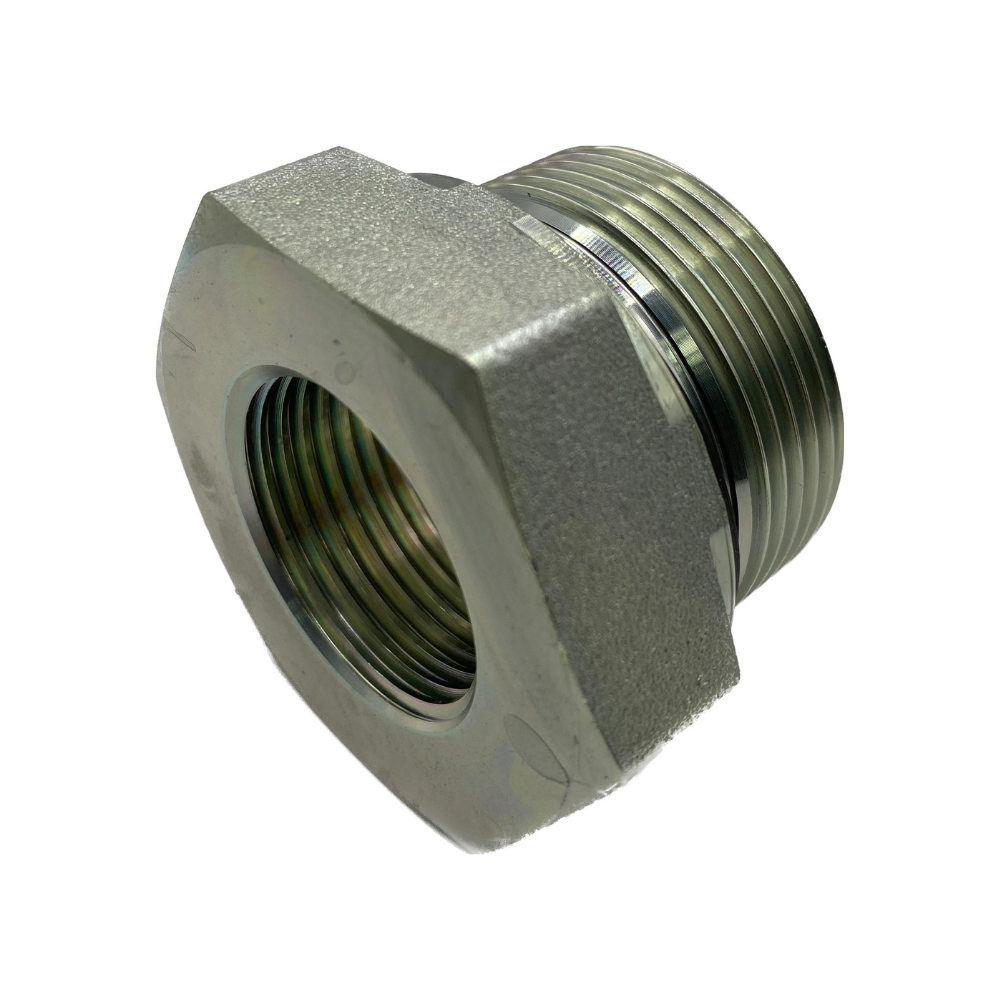

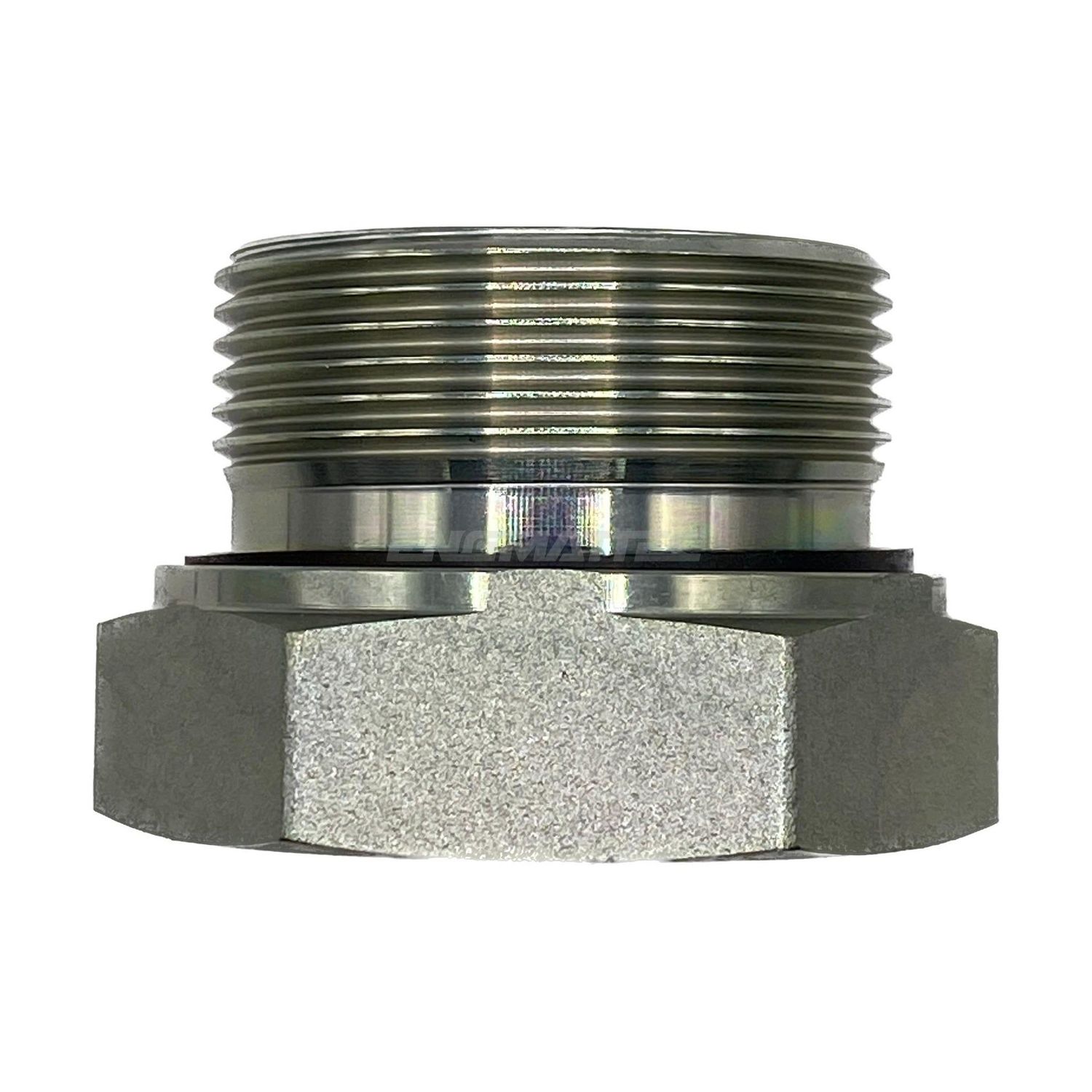

BSP Parallel Reducing Bush Female x Male

Parallel BSP female one end, parallel BSP male the other, in different sizes. The reducing bush for stepping a BSPP port up or down without remaking the line.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.
• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• Both ends are parallel and neither seals on the thread. Washer or cone seat at each end.
• Check which way you need to go. The female is the port side you are creating, the male is the port you are screwing into.
• Stacking a bush on a nipple works but adds two more joints. A single reducing bush is fewer places to leak.

Technicians Advice

Every bush you add is another pair of sealing faces. Where the size step can be done in the fitting itself rather than through a bush, do it that way. Fewer joints is always the more reliable job.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.
• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.
• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPF-BPM-0204	1/4" BSPP Male	1/8" BSPP Female	20mm	19mm	Mild steel	Plated finish
BPF-BPM-0206	3/8" BSPP Male	1/8" BSPP Female	21mm	22mm	Mild steel	Plated finish
BPF-BPM-0402	1/8" BSPP Male	1/4" BSPP Female	28mm	19mm	Mild steel	Plated finish
BPF-BPM-0404	1/4" BSPP Male	1/4" BSPP Female	32mm	19mm	Mild steel	Plated finish
BPF-BPM-0406	3/8" BSPP Male	1/4" BSPP Female	21mm	22mm	Mild steel	Plated finish
BPF-BPM-0408	1/2" BSPP Male	1/4" BSPP Female	24mm	27mm	Mild steel	Plated finish
BPF-BPM-0412	3/4" BSPP Male	1/4" BSPP Female	26mm	32mm	Mild steel	Plated finish
BPF-BPM-0604	1/4" BSPP Male	3/8" BSPP Female	34mm	22mm	Mild steel	Plated finish
BPF-BPM-0606	3/8" BSPP Male	3/8" BSPP Female	33mm	22mm	Mild steel	Plated finish
BPF-BPM-0608	1/2" BSPP Male	3/8" BSPP Female	34mm	27mm	Mild steel	Plated finish
BPF-BPM-0612	3/4" BSPP Male	3/8" BSPP Female	26mm	32mm	Mild steel	Plated finish
BPF-BPM-0616	1" BSPP Male	3/8" BSPP Female	30mm	41mm	Mild steel	Plated finish
BPF-BPM-0806	3/8" BSPP Male	1/2" BSPP Female	39mm	29mm	Mild steel	Plated finish
BPF-BPM-0808	1/2" BSPP Male	1/2" BSPP Female	40mm	27mm	Mild steel	Plated finish
BPF-BPM-0812	3/4" BSPP Male	1/2" BSPP Female	26mm	32mm	Mild steel	Plated finish
BPF-BPM-0816	1" BSPP Male	1/2" BSPP Female	30mm	41mm	Mild steel	Plated finish
BPF-BPM-0820	1.1/4" BSPP Male	1/2" BSPP Female	33mm	50mm	Mild steel	Plated finish
BPF-BPM-1208	1/2" BSPP Male	3/4" BSPP Female	48mm	36mm	Mild steel	Plated finish
BPF-BPM-1212	3/4" BSPP Male	3/4" BSPP Female	48mm	36mm	Mild steel	Plated finish
BPF-BPM-1216	1" BSPP Male	3/4" BSPP Female	30mm	41mm	Mild steel	Plated finish
BPF-BPM-1220	1.1/4 " BSPP Male	3/4" BSPP Female	33mm	50mm	Mild steel	Plated finish
BPF-BPM-1612	3/4" BSPP Male	1" BSPP Female	54mm	41mm	Mild steel	Plated finish
BPF-BPM-1616	1" BSPP Male	1" BSPP Female	56mm	41mm	Mild steel	Plated finish
BPF-BPM-1620	1.1/4" BSPP Male	1" BSPP Female	33mm	50mm	Mild steel	Plated finish
BPF-BPM-1624	1.1/2" BSPP Male	1" BSPP Female	38mm	55mm	Mild steel	Plated finish
BPF-BPM-2016	1" BSPP Male	1.1/4" BSPP Female	57mm	50mm	Mild steel	Plated finish
BPF-BPM-2020	1.1/4" BSPP Male	1.1/4" BSPP Female	33mm	50mm	Mild steel	Plated finish
BPF-BPM-2024	1.1/2" BSPP Male	1.1/4" BSPP Female	38mm	55mm	Mild steel	Plated finish
BPF-BPM-2432	2" BSPP Male	1.1/2" BSPP Female	44mm	70mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
