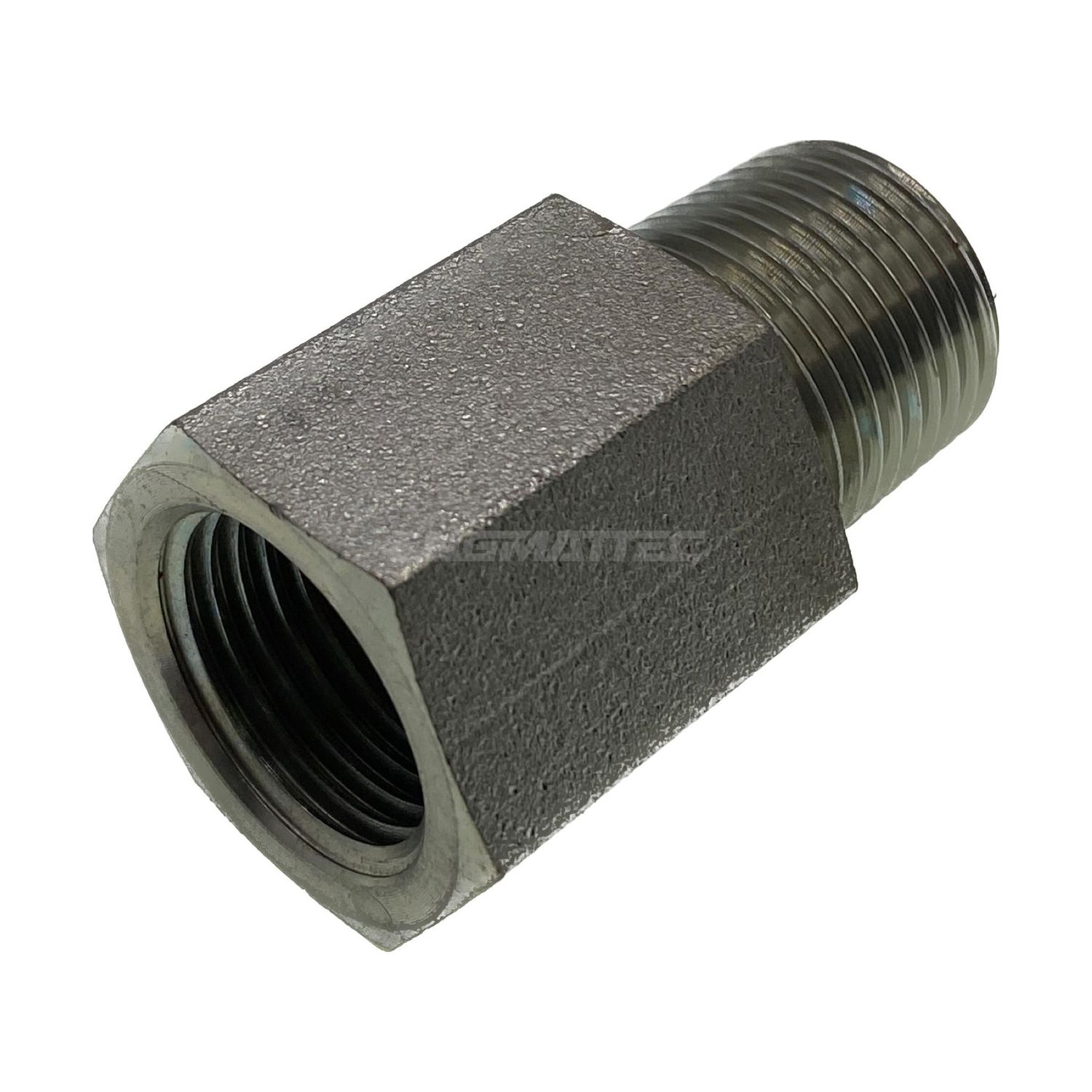

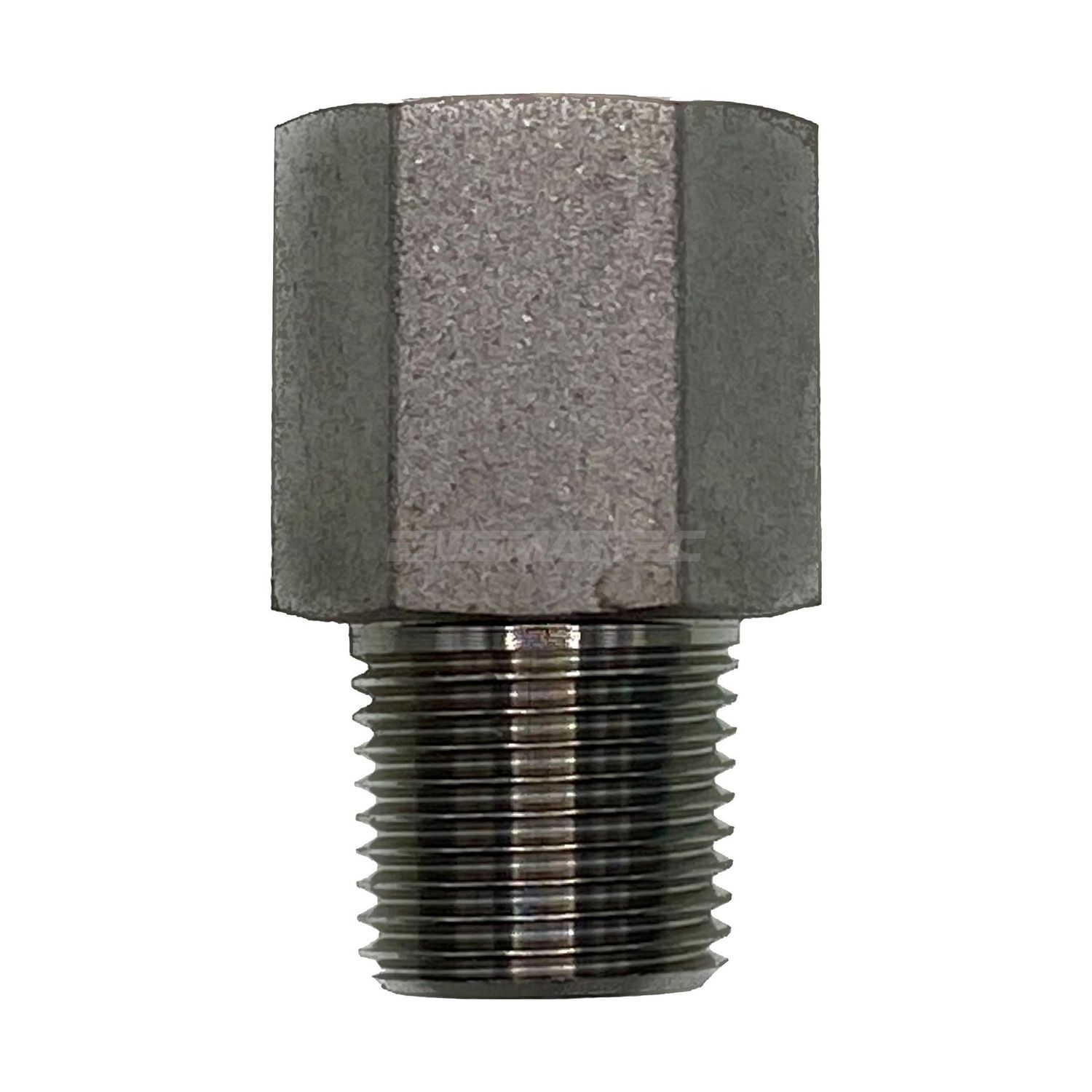

BSP Tapered Reducing Bush Female x Male

Tapered BSP female one end, tapered BSP male the other, in different sizes. The BSPT reducing bush, used to step a tapered port up or down in one part.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Tapered Female – BSPT to ISO 7 / BS 21. It seals on the thread interference and must be taped or sealed.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• Both ends seal on the thread. Sealant on the male end and on whatever male goes into the female.
• Work out which direction you need. The male is what screws into the machine, the female is the new port size you are creating.
• Do not mix BSPT with BSPP here. A parallel male will not seal in the tapered female.

Technicians Advice

A tapered bush is a wedge in a wedge and it does not need much to seat. Hand tight plus two or three turns at each end. Over-tightening a bush into a cast port is one of the easier ways to crack a housing and turn a five minute job into a day.

Where You’ll Find It

• BSP Tapered Female – Female side of local pipework, adaptor blocks and gauge manifolds.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Tapered Female – BSPT to ISO 7 / BS 21, written Rc for female.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BTF-BTM-0202	1/8" BSPT	1/8" BSPT	27mm	14mm	Mild steel	Plated finish
BTF-BTM-0204	1/4" BSPT	1/8" BSPT	21mm	14mm	Mild steel	Plated finish
BTF-BTM-0206	3/8" BSPT	1/8" BSPT	22mm	19mm	Mild steel	Plated finish
BTF-BTM-0208	1/2" BSPT	1/8" BSPT	28mm	22mm	Mild steel	Plated finish
BTF-BTM-0402	1/8" BSPT	1/4" BSPT	33mm	19mm	Mild steel	Plated finish
BTF-BTM-0406	3/8" BSPT	1/4" BSPT	22mm	19mm	Mild steel	Plated finish
BTF-BTM-0408	1/2" BSPT	1/4" BSPT	28mm	22mm	Mild steel	Plated finish
BTF-BTM-0412	3/4" BSPT	1/4" BSPT	29mm	30mm	Mild steel	Plated finish
BTF-BTM-0416	1" BSPT	1/4" BSPT	34mm	36mm	Mild steel	Plated finish
BTF-BTM-0606	3/8" BSPT	3/8" BSPT	39mm	22mm	Mild steel	Plated finish
BTF-BTM-0608	1/2" BSPT	3/8" BSPT	28mm	22mm	Mild steel	Plated finish
BTF-BTM-0612	3/4" BSPT	3/8" BSPT	29mm	30mm	Mild steel	Plated finish
BTF-BTM-0616	1" BSPT	3/8" BSPT	34mm	36mm	Mild steel	Plated finish
BTF-BTM-0804	1/4" BSPT	1/2" BSPT	43mm	27mm	Mild steel	Plated finish
BTF-BTM-0806	3/8" BSPT	1/2" BSPT	44mm	27mm	Mild steel	Plated finish
BTF-BTM-0808	1/2" BSPT	1/2" BSPT	49mm	27mm	Mild steel	Plated finish
BTF-BTM-0812	3/4" BSPT	1/2" BSPT	29mm	30mm	Mild steel	Plated finish
BTF-BTM-0816	1" BSPT	1/2" BSPT	34mm	36mm	Mild steel	Plated finish
BTF-BTM-0820	1.1/4" BSPT	1/2" BSPT	37mm	46mm	Mild steel	Plated finish
BTF-BTM-1208	1/2" BSPT	3/4" BSPT	51mm	36mm	Mild steel	Plated finish
BTF-BTM-1212	3/4" BSPT	3/4" BSPT	51mm	36mm	Mild steel	Plated finish
BTF-BTM-1216	1" BSPT	3/4" BSPT	34mm	36mm	Mild steel	Plated finish
BTF-BTM-1220	1.1/4" BSPT	3/4" BSPT	38mm	46mm	Mild steel	Plated finish
BTF-BTM-1224	1.1/2" BSPT	3/4" BSPT	40mm	50mm	Mild steel	Plated finish
BTF-BTM-1612	3/4" BSPT	1" BSPT	57mm	41mm	Mild steel	Plated finish
BTF-BTM-1616	1" BSPT	1" BSPT	60mm	41mm	Mild steel	Plated finish
BTF-BTM-1620	1.1/4" BSPT	1" BSPT	38mm	46mm	Mild steel	Plated finish
BTF-BTM-1624	1.1/2" BSPT	1" BSPT	40mm	50mm	Mild steel	Plated finish
BTF-BTM-1632	2" BSPT	1" BSPT	45mm	65mm	Mild steel	Plated finish
BTF-BTM-2020	1.1/4" BSPT	1.1/4" BSPT	65mm	50mm	Mild steel	Plated finish
BTF-BTM-2024	1.1/2" BSPT	1.1/4" BSPT	40mm	50mm	Mild steel	Plated finish
BTF-BTM-2032	2" BSPT	1.1/4" BSPT	45mm	65mm	Mild steel	Plated finish
BTF-BTM-2432	2" BSPT	1.1/2" BSPT	45mm	65mm	Mild steel	Plated finish
BTF-BTM-3240	2.1/2" BSPT	2" BSPT	–	–	Mild steel	Plated finish
BTM-BTF-0404	1/4" BSPT	1/4" BSPT	36mm	19mm	Mild steel	Plated finish
BTM-BTF-0406	1/4" BSPT	3/8" BSPT	38mm	22mm	Mild steel	Plated finish
BTM-BTF-1620	1" BSPT	1.1/4" BSPT	64mm	50mm	Mild steel	Plated finish

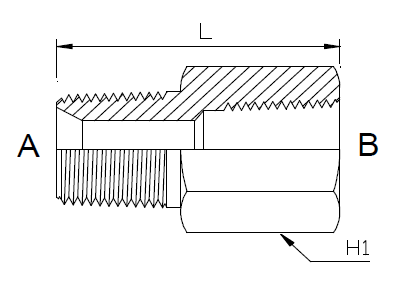

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
