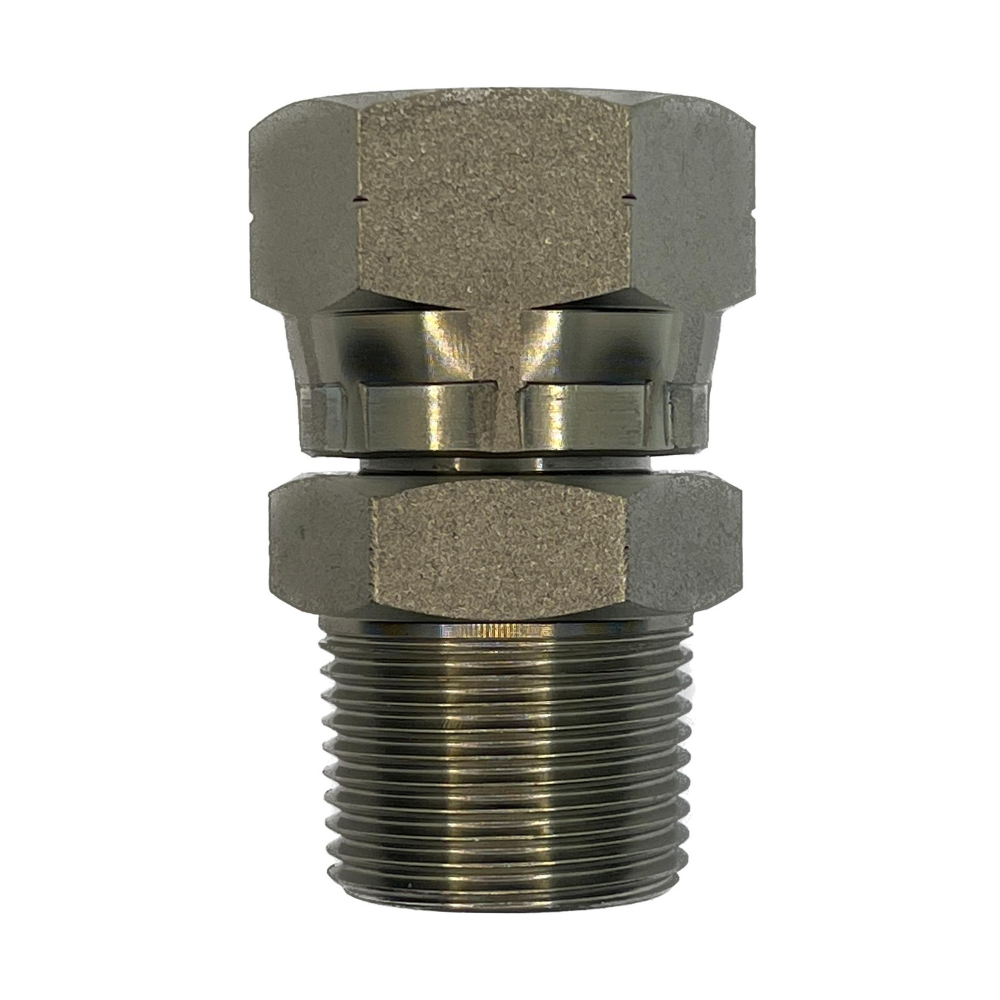

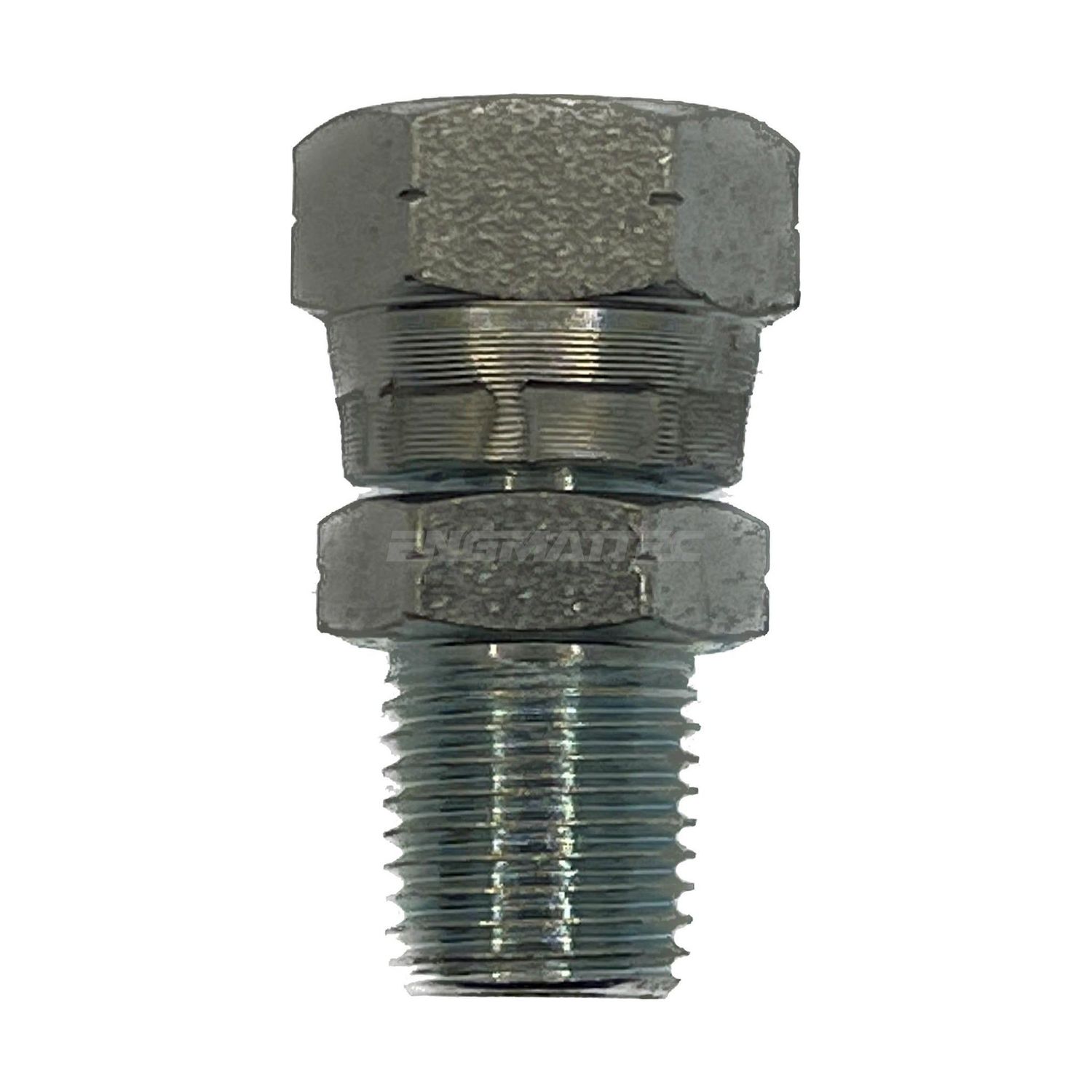

BSP Swivel Female x BSP Tapered Male Straight Adaptor

BSP swivel female one end, BSP tapered male the other. The standard part for bringing a BSP hose out of a tapered port, and one of the most-used adaptors on the shelf.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat. It seals on the cone and swivels, so it needs no tape or sealant.
• BSP Tapered Male – BSPT to ISO 7 / BS 21. It seals on the tapered thread itself, so it needs PTFE tape or a liquid thread sealant.

How to Choose

• The swivel female seals on its 60° cone and turns freely, so the hose is not wound up as you tighten.
• The tapered male seals on the thread and needs sealant. Keep it off the female cone.
• Unequal sizes are stocked, so check the port and the hose end separately.

Technicians Advice

Do the tapered male first, wipe your hands, then handle the swivel cone. Sealant carried across onto a cone face passes a pressure test and then seeps in service, which is the hardest kind of leak to find.

Where You’ll Find It

• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.
• BSP Tapered Male – Older Australian and British pipework, gauge ports, tank and return lines, and cast pump and gearbox housings.

Cross-Reference

• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.
• BSP Tapered Male – BSPT to ISO 7 / BS 21, written R for male. Sometimes labelled PT or BSP taper.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
BSF-BTM-0202	1/8" BSPT	1/8" BSPP	25mm	14mm	12mm	Mild steel	Plated finish
BSF-BTM-0402	1/8" BSPT	1/8" BSPP	25mm	14mm	12mm	Mild steel	Plated finish
BSF-BTM-0404	1/4" BSPT	1/4" BSPP	32mm	19mm	17mm	Mild steel	Plated finish
BSF-BTM-0406	3/8" BSPT	1/4" BSPP	32mm	19mm	19mm	Mild steel	Plated finish
BSF-BTM-0408	1/2" BSPT	1/4" BSPP	39mm	19mm	22mm	Mild steel	Plated finish
BSF-BTM-0604	1/4" BSPT	3/8" BSPP	34mm	22mm	19mm	Mild steel	Plated finish
BSF-BTM-0606	3/8" BSPT	3/8" BSPP	33mm	22mm	19mm	Mild steel	Plated finish
BSF-BTM-0608	1/2" BSPT	3/8" BSPP	40mm	22mm	22mm	Mild steel	Plated finish
BSF-BTM-0804	1/4" BSPT	1/2" BSPP	35mm	27mm	19mm	Mild steel	Plated finish
BSF-BTM-0806	3/8" BSPT	1/2" BSPP	35mm	27mm	19mm	Mild steel	Plated finish
BSF-BTM-0808	1/2" BSPT	1/2" BSPP	44mm	27mm	22mm	Mild steel	Plated finish
BSF-BTM-0812	3/4" BSPT	1/2" BSPP	46mm	27mm	30mm	Mild steel	Plated finish
BSF-BTM-1208	1/2" BSPT	3/4" BSPP	45mm	32mm	27mm	Mild steel	Plated finish
BSF-BTM-1212	3/4" BSPT	3/4" BSPP	45mm	32mm	30mm	Mild steel	Plated finish
BSF-BTM-1216	1" BSPT	3/4" BSPP	49mm	32mm	36mm	Mild steel	Plated finish
BSF-BTM-1612	3/4" BSPT	1" BSPP	50mm	38mm	32mm	Mild steel	Plated finish
BSF-BTM-1616	1" BSPT	1" BSPP	54mm	38mm	36mm	Mild steel	Plated finish
BSF-BTM-1620	1.1/4" BSPT	1.1/4" BSPP	–	38mm	50mm	Mild steel	Plated finish
BSF-BTM-2016	1" BSPT	1.1/4" BSPP	60mm	50mm	46mm	Mild steel	Plated finish
BSF-BTM-2020	1.1/4" BSPT	1.1/4" BSPP	59mm	50mm	46mm	Mild steel	Plated finish
BSF-BTM-2420	1.1/4" BSPT	1.1/2" BSPP	61mm	55mm	50mm	Mild steel	Plated finish
BSF-BTM-2424	1.1/2" BSPT	1.1/2" BSPP	63mm	55mm	50mm	Mild steel	Plated finish
BSF-BTM-3232	2" BSPT	2" BSPP	73mm	70mm	65mm	Mild steel	Plated finish
BTM-BSF-0816	1/2" BSPT	1" BSPP	–	–	–	Mild steel	Plated finish

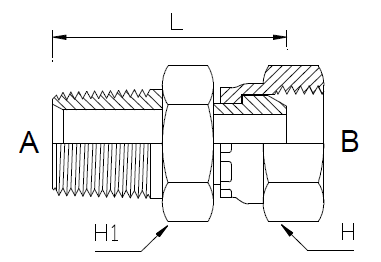

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

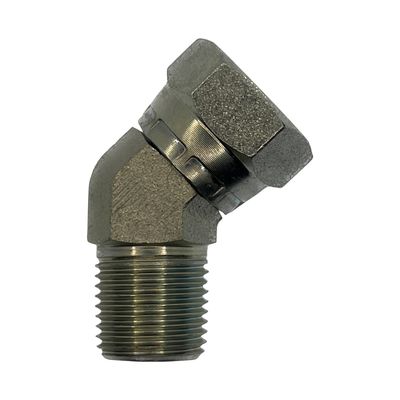

🔗 45° Compact – same threads🔗 90° Compact – same threads
