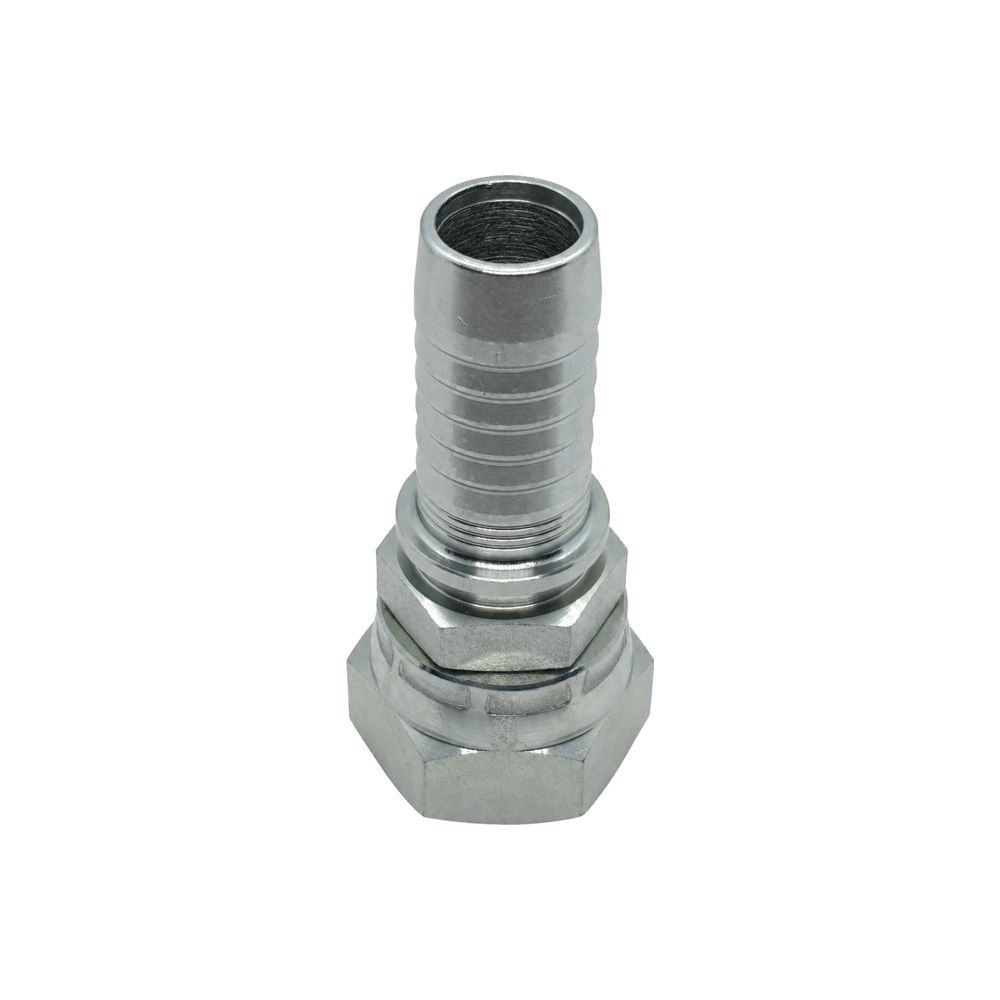

Hose Tail – BSP Swivel Female – Straight – Two-Piece Crimp-On

A BSP swivel female with a 60° cone seat on a straight crimp tail. The standard hose end on Australian and British-built machinery.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Swivel Female – BSPP to ISO 228 with a 60° internal cone seat, seals on the cone and swivels, so it needs no tape or sealant

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• Seals on the 60° internal cone and swivels, so nothing goes on the thread.
• Do not confuse it with BSPT. A tapered male will not seal against a 60° cone seat.

Technicians Advice

The 60° cone does all the work here. Wipe it before assembly and do not use tape – sealant on a cone seat holds on test and seeps once the oil warms up.

Where You’ll Find It

• BSP Swivel Female – Hose ends across Australian-built assemblies, and anywhere a joint has to be broken and remade repeatedly.

Cross-Reference

• BSP Swivel Female – BSPP body to ISO 228 with a 60° cone seat. Commonly called a BSP swivel or BSP female cone seat.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 45° Swept – same threads 🔗 90° Swept – same threads 🔗 90° Compact – same threads
