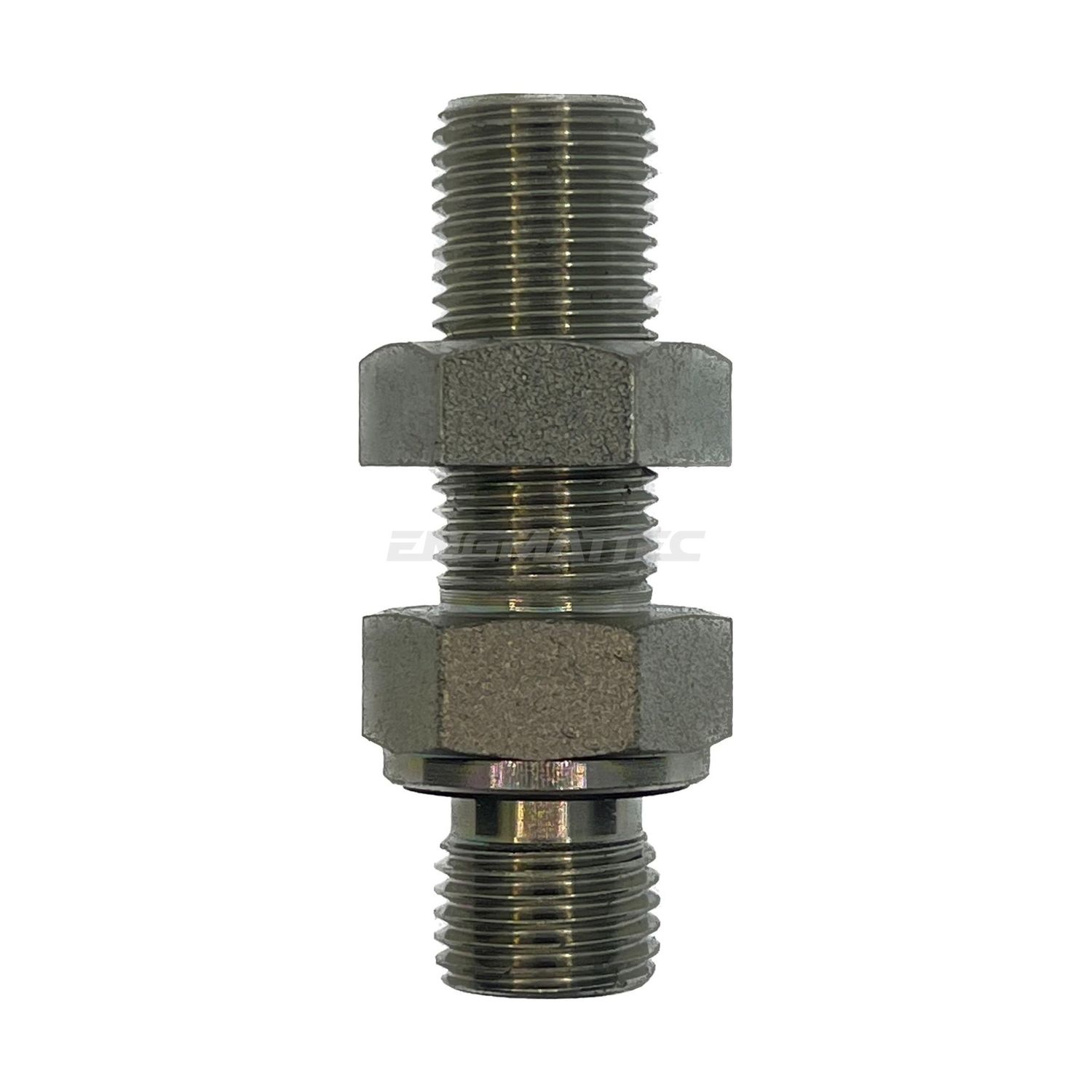

BSP Bulkhead Male x BSP Parallel Male Straight Bulkhead Adaptor

A BSP bulkhead body one end and a BSP parallel male the other. Carries a BSP line through a panel or guard and supports it there.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: The Advantages of Hydraulic Bulkhead Fittings: Essential Components for Fluid Systems

Thread Standards

• BSP Bulkhead Male – BSP parallel thread on a bulkhead body with a locknut. It seals on a bonded washer or a 60° cone in the mating part; the bulkhead thread and locknut only clamp it to the panel.
• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

How to Choose

• The bulkhead thread and locknut clamp the fitting to the panel. They do no sealing, so do not try to cure a leak by tightening the locknut.
• Check your panel hole size and thickness before you order. The body has a set thread length under the shoulder and a thick panel eats it.
• Both sealing ends want a bonded washer or a 60° cone in the mating part. A parallel thread does not seal on itself.

Technicians Advice

Fit the body through the panel and nip the locknut before you connect anything to it. Trying to hold the body still while you wind a hose on is how the panel hole gets chewed out and the fitting ends up sitting crooked.

Where You’ll Find It

• BSP Bulkhead Male – panel and guard pass-throughs on Australian and British-built machinery, tank installations and trailer plumbing where BSP is the house standard.
• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.

Cross-Reference

• BSP Bulkhead Male – BSPP to ISO 228 on a bulkhead body. Sometimes written BSP BH. The long thread under the shoulder is for the panel and locknut, not for sealing.
• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H	H1	Material	Finish
BBM-BPM-0202	43mm	14mm	14mm	Mild steel	Plated finish
BBM-BPM-0404	51mm	19mm	19mm	Mild steel	Plated finish
BBM-BPM-0606	54mm	22mm	22mm	Mild steel	Plated finish
BBM-BPM-0808	67mm	27mm	27mm	Mild steel	Plated finish
BBM-BPM-1212	67mm	32mm	32mm	Mild steel	Plated finish
BBM-BPM-1616	74mm	41mm	41mm	Mild steel	Plated finish
BBM-BPM-2020	81mm	50mm	50mm	Mild steel	Plated finish
BBM-BPM-2424	85mm	55mm	55mm	Mild steel	Plated finish
BBM-BPM-3232	108mm	70mm	70mm	Mild steel	Plated finish

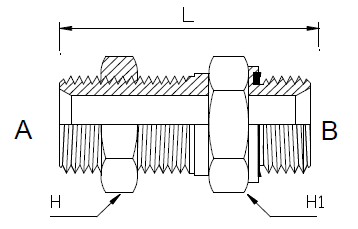

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
