433.92 MHz (U.S.A. Only) 8 Button Radio Remote Control Kit with Transmitter and Receiver
mounted in Waterproof Enclosure, 60-meter (200 ft) transmit range.

EXPRESS SHIPPING TO THE US WITH FED-EX

***Please note this is for use in the USA, New Zealand customers should check local regulations,
for Australian customers click here for the 915 Mhz model***

Optional 5 way, 3-position Pneumatic Air Solenoids, 1/8" BSPP Ports

Designed for Multipurpose or Universal fit. These are quality Australian Designed and Built.

Weather-resistant and suitable for use on trucks, tilt trays, cranes, as well as other mobile machinery such as
Wood Chippers, Stump Grinders, Compactors, and Skip bin trucks.
The remote receiving unit simply needs power, 12v or 24 volts DC.

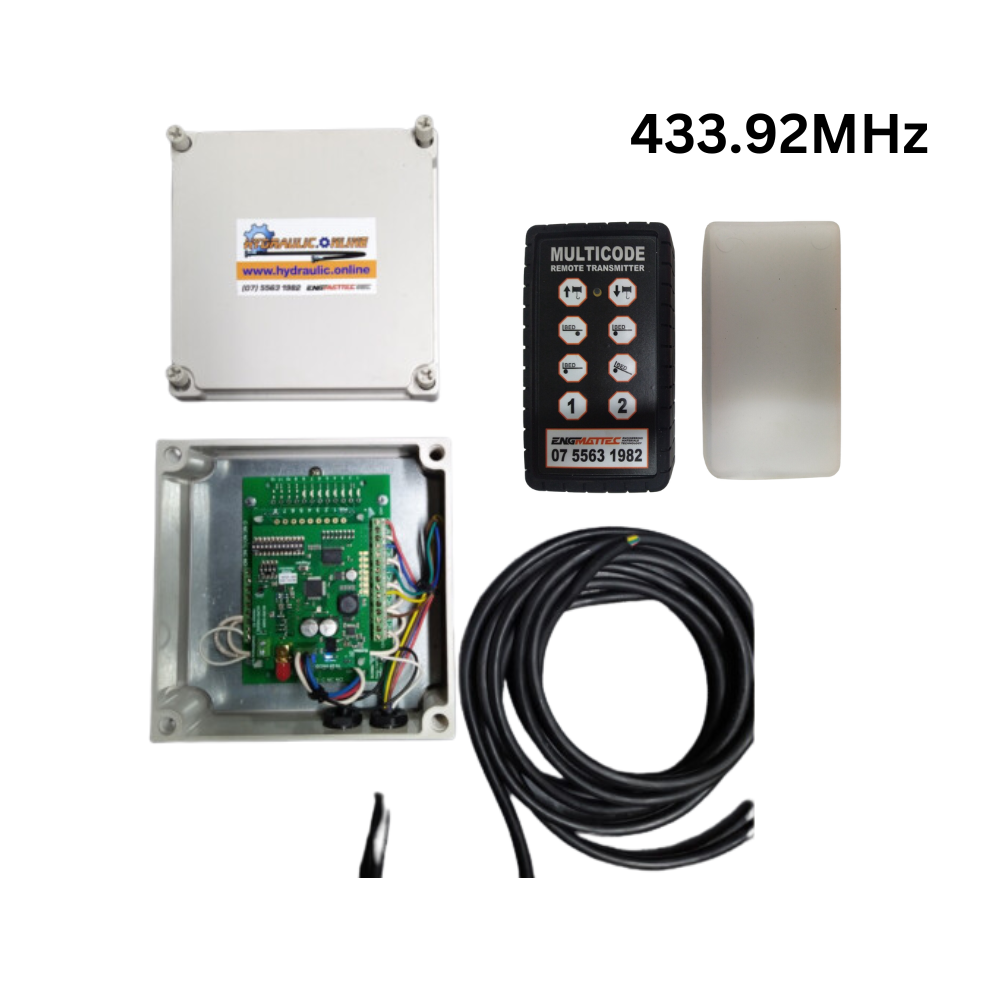

You receive a transmitter and the receiver mounted in an IP67 dust and waterproof case,

A wiring loom plus the 8-button weatherproof remote unit.
Please note, this comes standard with just 6 buttons wired up. Extra $50 (AUD) for all 8 buttons.
It comes with comprehensive instructions for fitting & setting up.
Unlike other remote control units, replacement remotes are available at a reasonable cost
if you ever run one over, forget and leave behind on a job or just lose it.
The remote has a 60-meter (200 ft) transmit range.

The 433.92 MHz signal uses "frequency hopping" that allows multiple transmitters to be used in
close proximity to each other without interference or jamming.
The "frequency hopping" technology is usually only found on expensive equipment and military applications.
This makes it an ideal choice for commercial and or industrial applications.

Please note, that your remote control system will require an electric switch relay or
solenoid coils to actuate the functions or valves you want to remotely control.

These "solenoids or switches or relays" are what your new remote control will hook up to.
Feel free to call us for more info regarding your intended or current application. +61 7 5563 1981
The receiver has the advantage of being easily customizable.
Using 'dip' switches inside, you are able to 'latch' certain buttons to stay on until pressed off again, etc

Supply as standard, with wiring loom to run 6 buttons but we can wire up all 8 buttons
and functions for $50 (AUD) extra, pl3ease contact us. You can also retrofit the extra wires at a later stage "down the track'.
It is recommended a 5 amp fuse be installed on the power lead to the receiver.
Try and mount the receiver in a dry area. The range will still work well if mounted in your operators Cab!
The Handheld 8-button transmitter has a Silicone case for extra water resistance,
however, please be aware that it is not 100 % waterproof.
Replacement Handpieces are 'Off the shelf at $300 AUD

Please send us a message for more information.
