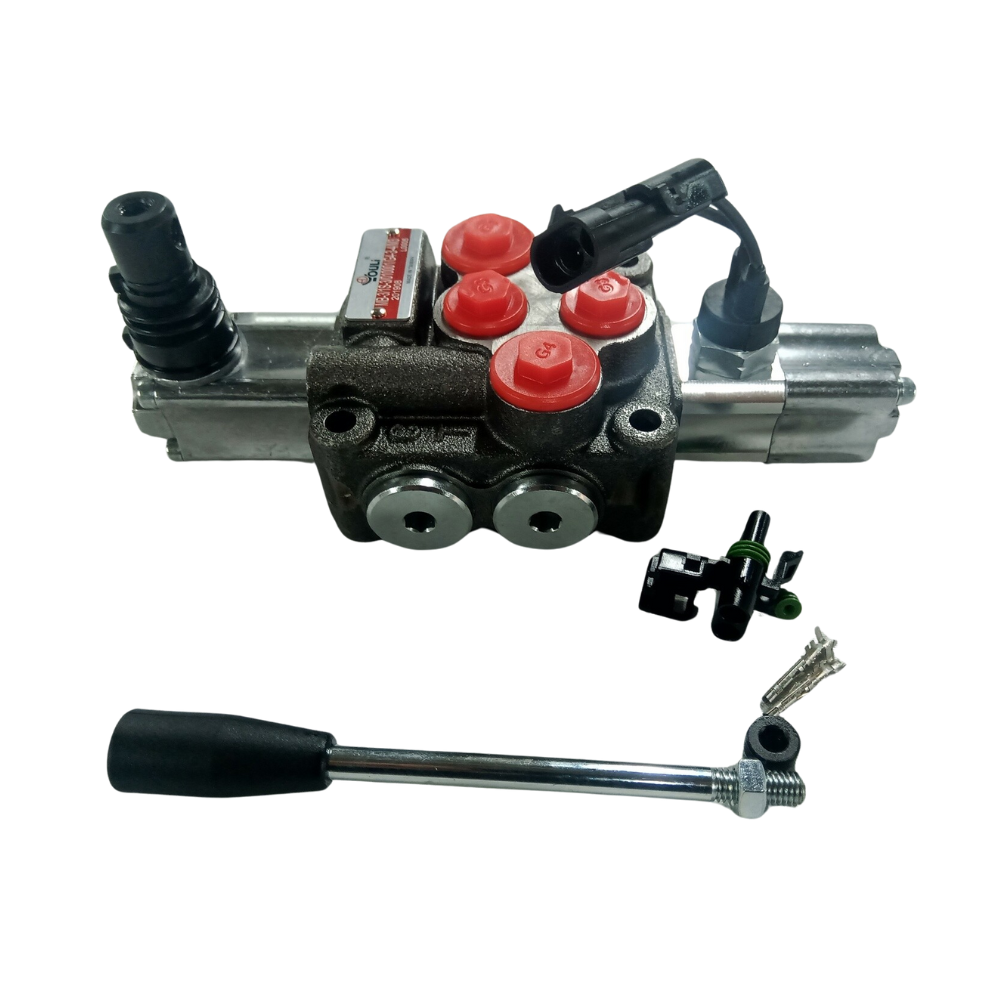

This valve is special in that it also comes with a DC Microswitch, which means you can wire up to a 12 or 24 Volt DC Hydraulic powerpack to make it turn on/off only when you pull the lever.

This is best for DC power packs, as they create a lot of Amp draw, & heat. Ideally, you want them to only run when needed.

This micro switch does that. It is designed to control one individual function or cylinder.

• D/A, double-acting = powerpack turns on & drives oil both up & down.
• S/A, Single-acting, microswitch only turns the powerpack on in the Up direction
• Float, turns the powerpack on both up & down, but push the lever all the way down, it 'Detents' (Stays held on), the powerpack stays off, & oil can 'free flow' to ram, allowing for 'Float' ie cylinder is not locked.
• These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 1
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)Max Flow Rate = 45 liters/min (12 Gallons per Minute)Relief valve = 120 Bar (1800 PSI) - simple to adjust, just a Allan key
• Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
• Ports Sizes
• Pressure and Tank Port 1/2" BSPP
• A & B Ports 3/8" BSPP
• Operating temperature range: -20 °C to + 80°C
• Dimensions = L x W x H = 200 x 120 x 55 mm
• Weight 3 KG

This is a High-Quality Valve and has many outstanding features, including.

• the built-in adjustable relief valve
• high performance,
• high efficiency,
• small volume,
• mass flow,
• leak resistance.

In addition to compact size, these control valves have fixed and large pull rods to control direction,

Various control options, manual, automatic, and or remote control methods are also available.

• Motor Spool
• Detent kit no spring return
• Detent kit with spring return
• Pneumatic spool control,
• Hydraulic Control
• Electric-solenoid control
• Joystick cable control.

Features

• Compact construction.
• Low-pressure drop.
• Long service life.
• High efficiency.
• Choice of various ports and circuit valves.
• Spring return.
• High-accuracy spool is hardened for long-term accuracy.
• Sub-plate mounting.
• Handle shift operation.
