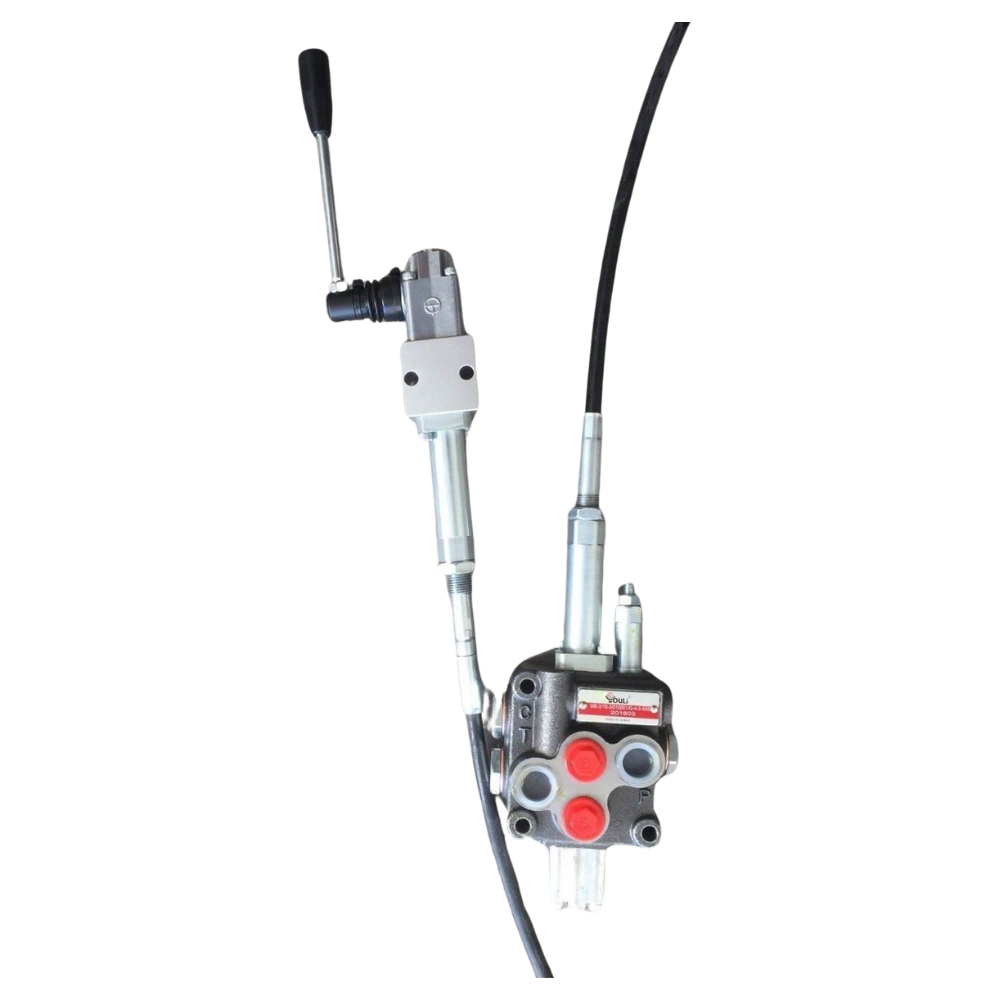

Hydraulic single spool Flow Control Valve with Remote mounted Lever and Cable Control, ideal for Tipper trucks and excavators.

A quality single spool valve that can be remotely hand actuated with a cable-control, ideal for tipper trucks & various machinery.

Available in two sizes: MB3 to flow 40 Lt/min or MB5 to flow 80 Lt/Min

This setup will enable you to operate the up / down function from the side of the truck or from inside the cab of your truck.

The MB3 and MB5 monoblock valves are available with cylinder or motor spool options.

With a cylinder spool this spool has closed centers, which means that when the lever is let go, your load and or position of the cylinder will stay in position.

With a Motor spool this spool has open centers, which means that when the lever is let go, your motor is allowed to freewheel to a stop without causing any pressure spikes and or sheared shafts..

The cable is available in 1,1.5, 2, 2.5, and 3 m lengths and comes with the control lever and cable connectors.

Please keep this in mind for fitting: Use the least amount of bends when installing the actuator cable, this will allow the cable to move freely and actuate the valve smoothly.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

Specifications:

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 1
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = MB3 45 liters/min (12 Gallons per Minute)
• Max Flow Rate = MB5 80 liters/min (20 Gallons per Minute)
• Max Working Pressure = 315 Bar (4600 PSI)
• Spool Type = Cylinder.
• Spool Movement = Lever action via a cable extension, Spring Return to Center.
• Built in Relief Valve = Adjustable (factory set at 3000 PSI)
• Ports Sizes
• for MB3 Pressure Tank and Carry over port Port = 1/2" BSPP, for A & B Ports = 3/8" BSPP
• for MB5 Pressure Tank and Carry over port Port = 1" BSPP, for A & B Ports = 3/4" BSPP
• Operating temperature range: -20 °C to + 80°C
• Dimensions = for MB3 L x W x H = 200 x 120 x 55 mm for MB5 L x W x H = 247 x 150 x 70 mm
• Weight MB3 = 3 Kg for MB5 = 5 Kg

We also have Many types of adaptor threads, hydraulic hose, and field fit hose fittings

All are available please see our other listings.

This Quality Valve has many outstanding features, including.

• the built-in adjustable relief valve
• high performance,
• high efficiency,
• small volume,
• mass flow,
• leak resistance.
• In addition to compact size, these control valves have fixed and large pull rods to control direction,
• Various control options, manual, automatic, and or remote control methods are also available.
• Motor Spool
• Pneumatic spool control,
• Hydraulic Control

Features:

• Compact construction.
• Low-pressure drop.
• Long service life.
• High efficiency.
• Choice of various ports and circuit valves.
• Spring return.
• High accuracy spool is hardened for long-term accuracy.
