Our tried and tested system: uses an Australian Designed Radio Remote control with a range of up to 150m. It has been tested and found to comply with the limits for a Class [B] digital device, pursuant to the Australian/New Zealand standard AS/NZS 4268.

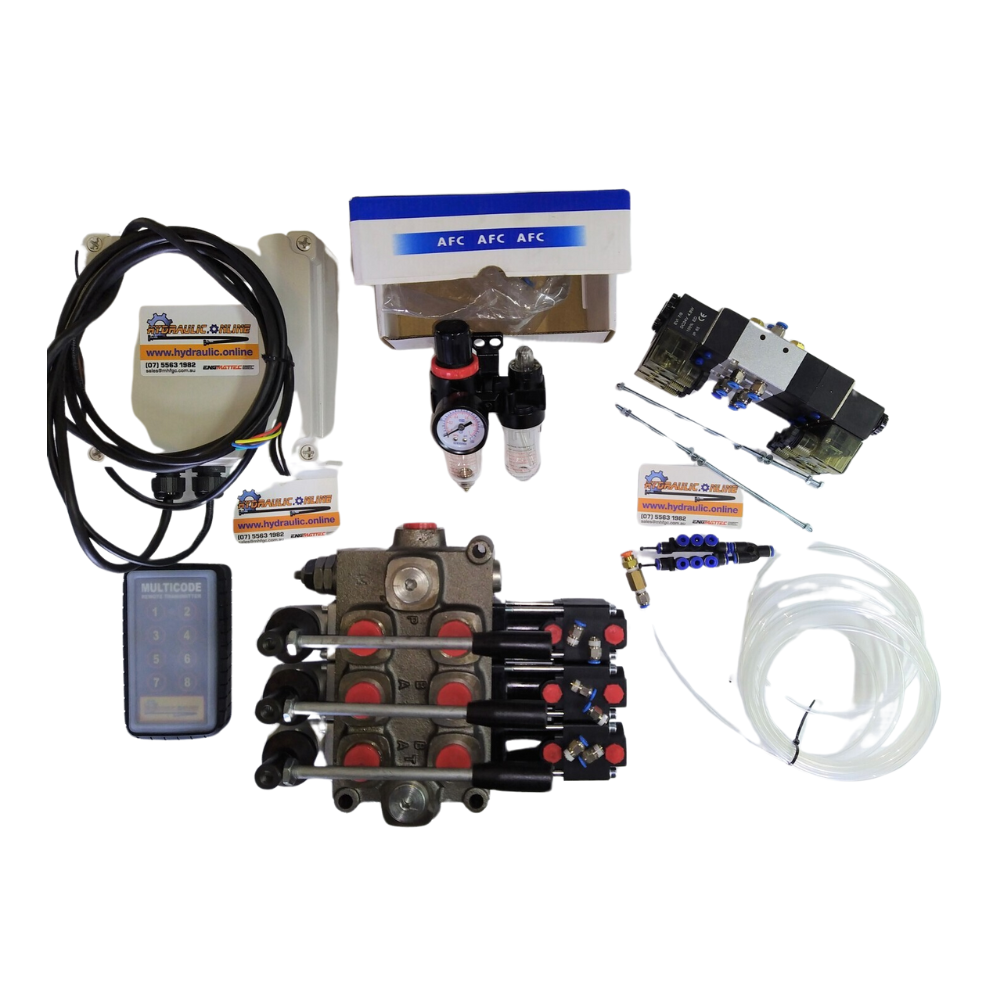

It is made up of with a brand new Italian Made Galtech Q75-3 or 5 Monoblock Hydraulic Flow Control Valve rated for oil flows up to 80 liters per minute at 3900 psi

Complete with a 8 button hand help radio remote transmitter: and a truck-mounted receiver unit.

The Hydraulic Valve has 3 levers (6 Functions) with Radio Remote Control of 6 functions,

Designed specifically for Tilt Tray recovery vehicles but can be modified to work on Crane trucks, Skip Bin Trucks, as well as Front End Loaders, Drilling rigs, farming and excavation equipment. Backhoes or any application where you need to control 3 individual cylinders or hydraulic motors (ie winches).

This unit can replace most medium to large tilt tray truck's existing spool valves. Simply bolt on, & either re attach your existing hoses, or if different thread, buy adaptors (we can supply cheaply) to make your existing hose threads compatible.

The remote unit simply needs power, 12 or 24 Volt DC, & basic wiring to the valve solenoids (wiring diagram provided).

The hydraulic valve actuators will require clean dry compressed air from your truck's air supply: the pneumatic solenoids and spool actuators. Solenoids come complete with push fit air fittings and silencers.

The 8 button remote transmitter come with an 8 channel receiver mounted in a dust and water proof enclosure.

Levers are still attached for convenient use. This valve comes standard with 3 cylinder spools, which means when the lever/or button are released, the tray, winch etc will lock in place.

Specifications

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 3
• No of air/ solenoid actuated spools = 3
• Air push fits = 4mm
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 80 liters/min (20 Gallons per Minute)
• Max Working Pressure = 270 Bar (3900 PSI)
• Spool Type = Cylinder
• Spool Movement = Lever action, Spring Return to Center.
• Built in Relief Valve = Adjustable (factory set at 175 bar 2500 PSI)
•


• Pressure Port 1/2" BSPP
• Cylinder Ports 1/2" BSPP
• Tank Port 3/4" BSPP
• Power beyond port 3/4" BSPP
• Operating temperature range: -20 °C to + 80°C
• Dimensions = L x W x H = 320x 290 x 90 mm (300mm with levers installed)
• Weight 15 KG
• Detent Kits also available at $60 each
• Power beyond plug $23

Need More Information?

Please call Australia +61 07 5563 1982 or send us a an email at sales@mhfgc.com.au

ay for different spool configurations, spool numbers and costings.
