Elsema Multicode 8-Button Transmitter (MCT91508) | 915 MHz High-Security

Technical Overview
The ENGMATTEC / Elsema MCT91508 is a high-performance, industrial-grade 8-button transmitter designed for the demanding requirements of mobile machinery and high-pressure hydraulic control systems.

Operating within the 915 MHz frequency band, this unit utilises Frequency Hopping (FFH) technology. This ensures the signal remains stable and prevents interference from other wireless devices, even in busy industrial environments.

This transmitter is an excellent choice for managing complex ENGMATTEC hydraulic manifolds or multi-station winches where precision and operator safety are the top priorities.

Technical Specifications

• Operating Frequency: 915 MHz to 928 MHz (Frequency Hopping).
• Transmission Range: 400 metres (up to 500 metres with a centre-loaded external antenna).
• Coding: 12-way DIP switch (4,096 codes) or Encrypted (16 million combinations).
• Current Consumption: 40mA (active) / 5uA (standby).
• Power Supply: 9V Alkaline battery.
• Construction: High-impact, UV-stabilised ABS plastic housing.
  Click the link below to View Handpiece Coding Instructions

Multicode Handpiece Coding

Key Industrial Benefits

• Simultaneous Operation: Unlike standard remotes, the MCT91508 can transmit multiple button signals at once, allowing for complex hydraulic movements (e.g., Slide and Tilt simultaneously).
• Advanced Security: The dual-coding system provides an encrypted "rolling code" layer to prevent unauthorised signal cloning.
• Rugged Reliability: Rated for operation in temperatures ranging from -5°C to +50°C.

Technician’s Advice When installing this transmitter to control high-pressure hydraulic circuits, always ensure your receiver is housed in Water and dust proof Enclosure and mounted in clean, dry, vibration free location.

For maximum signal reliability in heavy steel structures, we recommend using an external SMA antenna to move the reception point outside of any Faraday cages created by the machine chassis.

Always inspect your Spiral Protective Wrap on the hydraulic Hoses near the solenoid valves to ensure no abrasion interferes with the electric actuators.

Summary
8 Button Handheld Remote Control Transmitter (Replacement Transmitter) "Multi Code" Lost, Misplaced Dropped Or Driven Over Your Remote Control Handpiece?

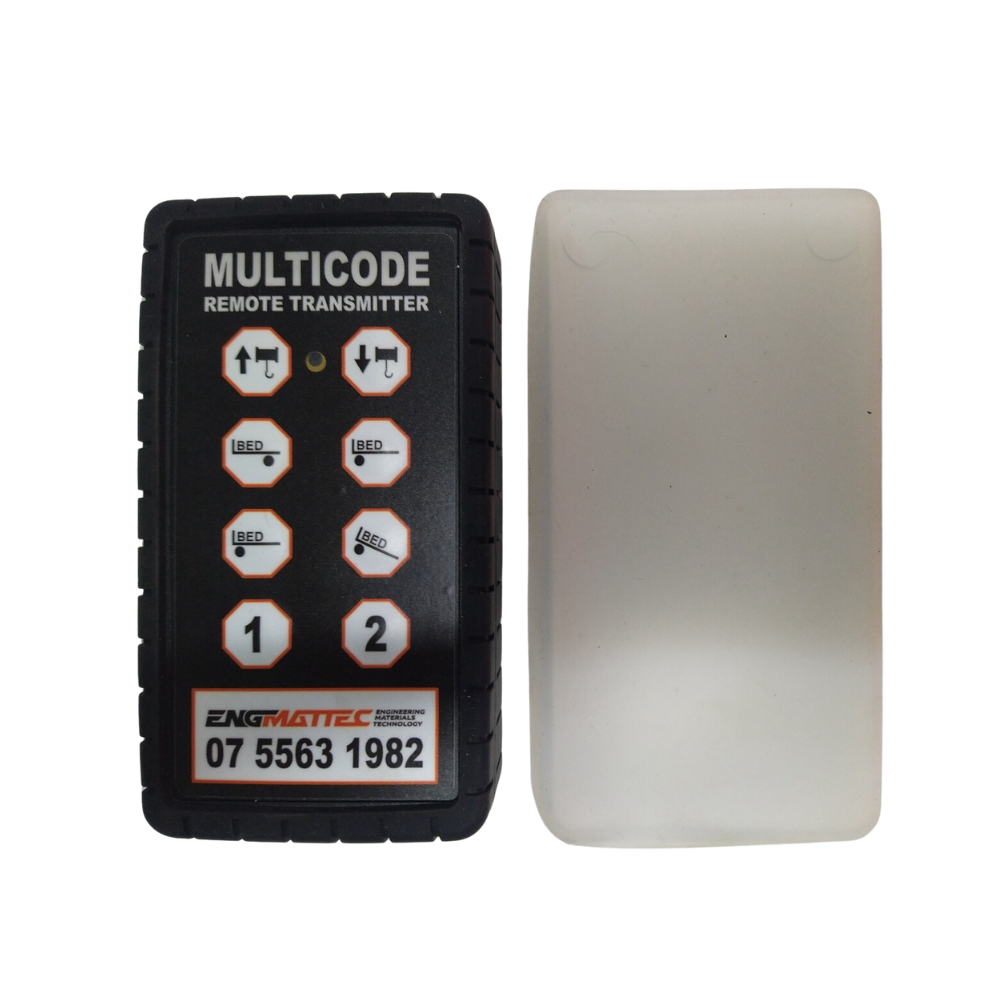

This is a replacement handheld remote control transmitter with 8 push buttons.
Also available are 4, 6, 8, and 12-button transmitter Options. Call (07) 5563 1982

These will 'self' pair with our Multicode system as well as with most "ELSIMA" systems.
Supplied with a Rubber case, plus a weather 'resistant' silicone case.

Compatible with most ELSIMA "Multi-Code" Remote Control Transmitters

Please send us a message for more information.
