Full electric 3 Spool Hydraulic Valve 90 LPM with Remote Control No Air required

+11

+10

Full electric 3 Spool Hydraulic Valve 90 LPM with Remote Control No Air required

Name: GALTECH Q75 Hydraulic Oil Flow Control Valve with 3 electrically actuated Spool flows 80 Lt/min
Brand: GALTECH
SKU: GALT 3 ELEC + Remote
Price: 4200.0 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/Remote Control Ready Valves

SKU GALT 3 ELEC + Remote

AU$4 200.00

🔥 EOFY SALE!

Power Beyond

No Plug

Power Beyond Plug (7/8" UNO Female) (+AU$32.00)

VOLTAGE

12 V

24 V

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Full electric 3 Spool Hydraulic Valve 90 LPM with Remote Control No Air required

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/Remote Control Ready Valves

Product Details

Brand: GALTECH

Weight: 18.00 kg

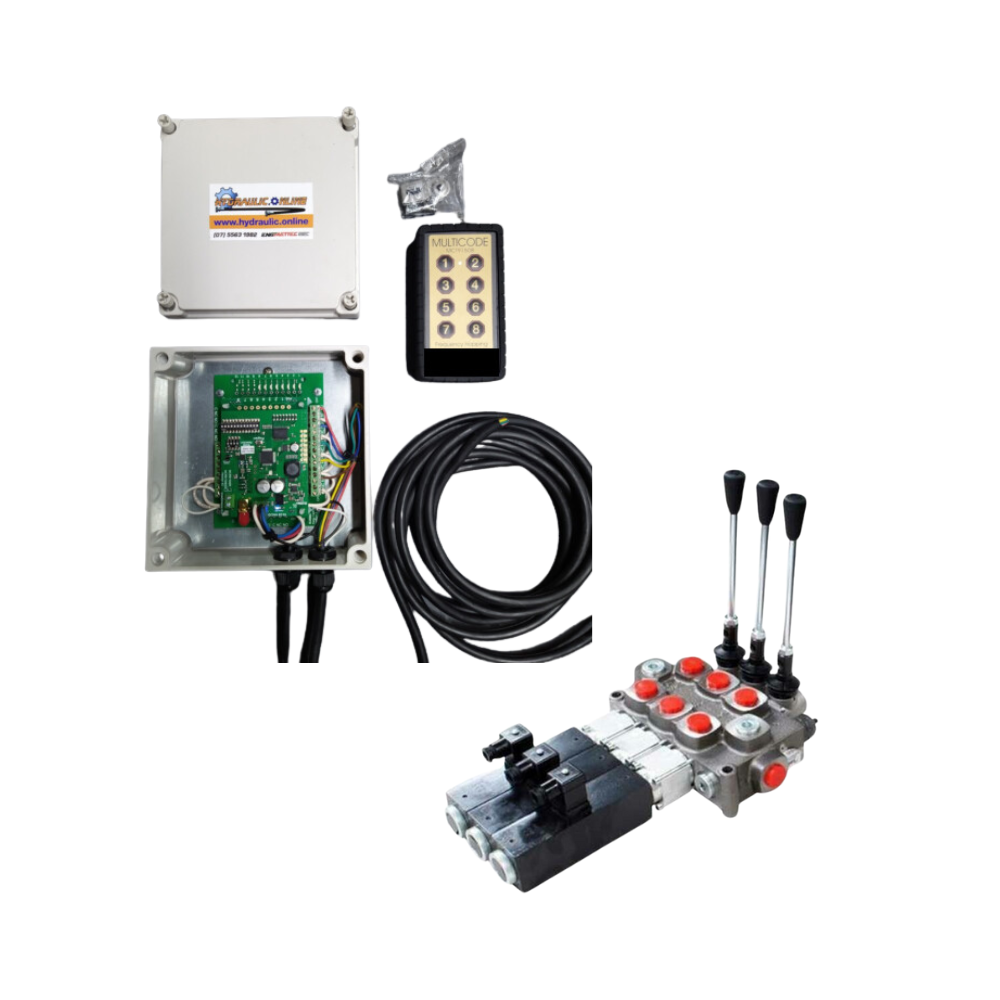

This is a brand new high quality Italian made Galtech Q 75 3 spool ,
90Lpm valve full electrically operated valve complete with an remote control. No Air supply is required.
It is designed for Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders,
Backhoes or any application where you need to control 3 individual function via remote / electrics.

These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil
and are typically used to control the speed and movement of hydraulic cylinders or motors.

Standard configuration is a double acting cylinder spool with 3 position,
spring return to centre lever. Also available with Motor spools. This valve has common UNO ports. To change to BSP ports adds $250 to the price.

Series Q75.

All sections on these Q-75 monoblock valves are double acting cylinder spools with a three position spring return kit c/w levers and adjustable main relief set at 150 Bar / 2100Psi standard.

Options also include full 12v/24v electrically operated. This valve with electric actuators, will be ready to hook up to a remote control unit.

Powerbeyond sleeve is optional, it gives the option to run a secondary (smaller flow) valve downstream,
by turning the 'T' port into a pressure port for additional valve to feed off.

With the power beyond sleeve, they are assembled onto the “tank” port of the valve
– this allows it to carry through the high pressure.
When you assemble this sleeve, you would also have to remove the plug
on top of the valve block for use as a tank return line.

Technical Data

- 7/8" UNO service ports

- 7/8" UNO P Ports

- 1.1/16" UNO T Port

- Max Flow:90l/min

- Max Pressure:300 Bar

- Max Tank Pressure: 25 Bar

- Operating Temperature: -10°C + 80°C

Specifications

Construction = Monoblock
Material of Construction = Steel
No of Spools = 3
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 90 liters/min (20 Gallons per Minute)
Max Working Pressure = 300 Bar (4500 PSI)
Spool Type = Cylinder. Motor Spools also available, extra cost
Spool Movement = Lever action, Spring Return to Center
Built in Relief Valve = Adjustable (factory set at 2200 PSI)
Dimensions. Please refer to photos,
Ports Sizes

- 7/8" UNO service ports

- 7/8" UNO P Ports

- 1.1/16" UNO T Port

Operating temperature range: -20 °C to + 80°C
Dimensions =
Weight 13 KG

Please send us a message for different spool configurations, spool numbers and costings.

This a High Quality Valve and has many outstanding features, including.

built in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.

In additional to compact size, these control valves have fixed and large pull rods to control direction,

Installation ; As per photos, there are a choice of two pressure ports "P" (only use one), two "T"

Incorrectly attaching Pressure line to T port will crack the valve!
