Tilt Tray Remote Control Hydraulic Valve 3 or 5 Spool 80LPM GALTECH

Name: Tilt Tray Remote Control Hydraulic Valve | 5 Lever | 80 LPM
Brand: hydraulic.online
SKU: Q75-5 PACKAGE
Price: 2999.95 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

SKU Q75-5 PACKAGE

AU$2 999.95

🔥 EOFY SALE!

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Tilt Tray Remote Control Hydraulic Valve 3 or 5 Spool 80LPM GALTECH

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Brand: hydraulic.online

Weight: 20.00 kg

Tilt Tray of Tow Truck Ready 80 Lt/min 3 or 5 Lever Hydraulic Flow Control Valve with 3 Radio Remote Control Functions for

Winch in/out
Tray in/out
Tray up/down

This is a great Radio Remote Control System complete with an Italian 3 or 5 Spool (3 or 5 levers with 3 functions remotely controlled) The Galtech Hydraulic Flow Control Valve rated to 270 bar (3,900 psi) and 80 Lt/Min oil flow.

Our brand new system uses an Australian Designed Radio Remote control with a range of up to 150m. It has been tested and found to comply with the limits for a Class [B] digital device, pursuant to the Australian/New Zealand standard AS/NZS 4268.
Transmit Frequency is 915MHz and is Standard for Industrial remotes:

The remote Control Kit Not only has the Brand New Italian Made Galtech Q75-5 Monoblock Hydraulic Flow Control Valve But it also comes complete with a 8 button hand help radio remote transmitter and a truck-mounted receiver unit.

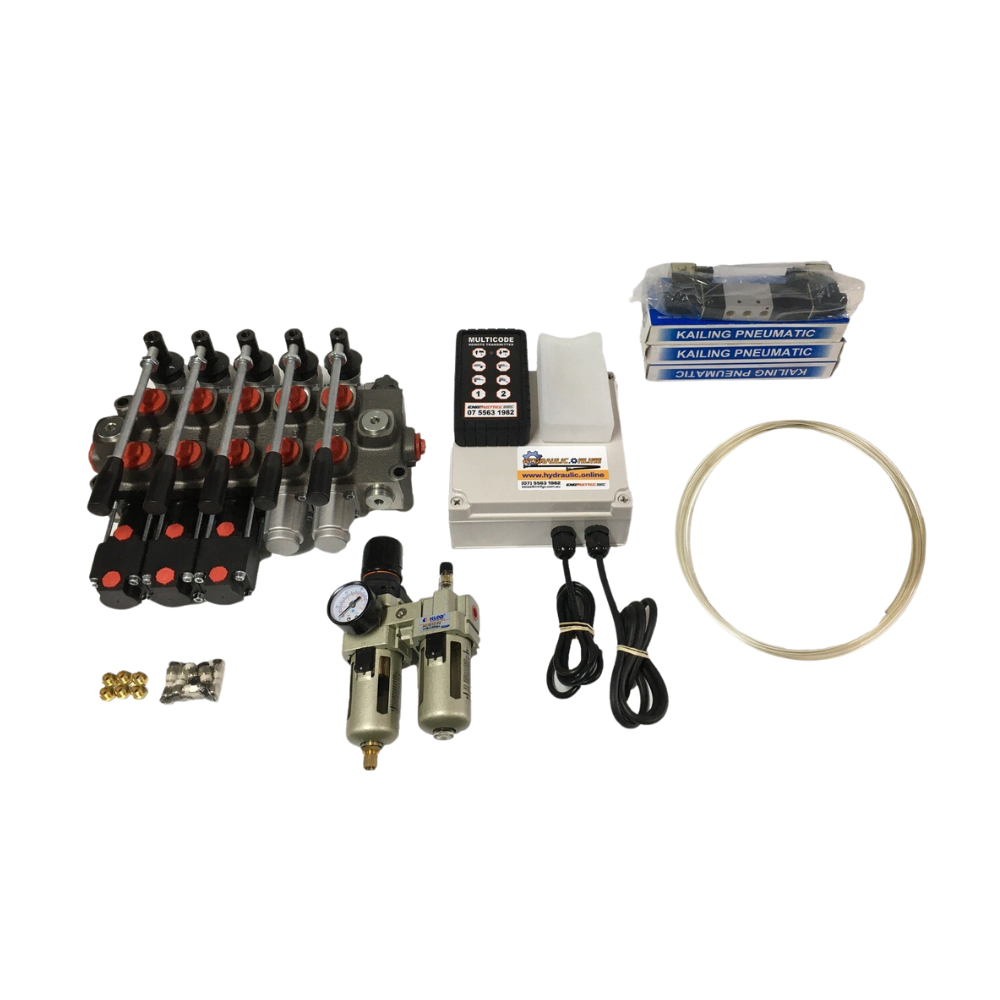

The kit will come as per photos with a Compressed Air Filter regulator water separator and Lubricator, air push fittings, airline 12v or 24-volt pneumatic solenoids plus remote & receiver. We provide a fitting diagram so only basic tool & electrical knowledge required for DIY.

For extra ease of wiring, we can supply an wiring harness kit. The 6 plug one required for this pack.
Please click link. Wiring Harness

This remote control kit will improve the efficiency and speed as well as the safety of your Vehicle Recovery Operations.

The Hydraulic Valve comes with 3 or optional 5 levers (6 to 10 Functions) with Radio Remote Control for 6 functions:

1 & 2 Winch In & Out,
3 & 4 Tray Tilt Up & Down and
5 & 6 Tray Slide In & Out
All 6 functions have manual override levers.
4th and 5 th Levers are for Vehicles fitted with Tee Bar Lift & Lower and Slide in & Out but are manual lever control only.

The hand held 8 Button Radio Remote Transmitter has a range of up to 150 meters. Both the truck mounted Receiver and transmitter are Au / NZ Certified.

Please watch this 2 minute video of us taking a standard 3 spool Hydraulic valve and fitting it with Pneumatic Actuators that will receive the remote signal from the remote control units.

Wired up and connected to 100 PSI of compressed the end result

Designed specifically for Tilt Tray Trucks for Transport and recovery or vehicles but can be modified to work on Crane trucks, Skip Bin Trucks, as well as Front End Loaders, Drilling rigs, farming and excavation equipment.

Backhoes or any application where you need to control 5 individual cylinders or hydraulic motors (ie winches).

This unit can replace most medium to large tilt tray truck's existing spool valves:. Simply bolt on, & either re attach your existing hoses, or if different thread, buy adaptors (we can supply cheaply) to make your existing hose threads compatible.

The remote unit simply needs power, 12 or 24 volt DC , & basic wiring to the valve solenoids (wiring diagram provided).

The hydraulic valve will require clean dry compressed air from your truck's air supply for the pneumatic solenoids and spool actuators. Solenoids come complete with push fit air fittings and silencers.

The 8 button remote comes with a transmitter and a receiver.

Levers are still attached for convenient use. This valve comes standard with "cylinder spools", which means that when the lever/or remote buttons are released, the tray, winch etc will lock in place.

These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

Specifications

Construction = Monoblock
Material of Construction = Steel
No of Spools = 5
No of air/ solenoid actuated spools = 3
Air push fits = 4mm
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 80 liters/min (20 Gallons per Minute)
Max Working Pressure = 270 Bar (3900 PSI)
Spool Type = Cylinder
Spool Movement = Lever action, Spring Return to Center.
Built in Relief Valve = Adjustable (factory set at 175 bar 2500 PSI)

Ports Sizes

Pressure Port 1/2" BSPP
Cylinder Ports 1/2" BSPP
Tank Port 3/4" BSPP
Power beyond port 3/4" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 320x 290 x 90 mm (300mm with levers installed)
Weight 15 KG
Detent Kits also available at $60 each
Power beyond plug $23

Need More Information?

Please call Australia +61 07 5563 1982 or send us a an email at sales@mhfgc.com.au

For any different spool configurations, spool numbers and costings.

Many types of adapters threads, hydraulic hose and field fit hose fittings are available for the complete DIY Package
please see our other listings

The Italian Galtech Hydraulic Flow Control Valve is of High Quality and has many outstanding features, including.

built in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.

Features

Compact construction.
Low pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.
Handle shift operation.

Please note*

These 80 LPM valves require a separate "Power Beyond" sleeve to operate a valve downstream.

Detent is when a you push/pull a lever, it stays forward/back at that position until you move it back to the centre.

Installation ; As per the listed photos, there are a choice of two pressure ports "P" (only use one),
two "T" Tank return ports
and also there is a "C" port. This "C" port is for the: Power Beyond function.
This allows another valve to run pressure from this C port downstream if necessary. (must be a lower volume though). A & B ports run to your cylinder or other functions.
