Tilt Tray Truck Remote Control Hydraulic Kit for Galtech Q75 Valves PART KIT ONLY

+10

Tilt Tray Truck Remote Control Hydraulic Kit / PART KIT ONLY

Name: Galtech Tilt Tray Truck Remote Control Hydraulic Kit 6 button
Brand: hydraulic.online
SKU: GAL
Price: 1999.95 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

SKU GAL

AU$1 999.95

Black Friday Sale! 💥

PLUS VALVE (if required)

3 LEVER BANK Q75 VALVE (+AU$800.00)

5 LEVER BANK Q75 VALVE (+AU$1 200.00)

PART KIT ONLY. NO VALVE!

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Tilt Tray Truck Remote Control Hydraulic Kit / PART KIT ONLY

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Brand: hydraulic.online

Weight: 20.00 kg

If your Tilt Tray is ALREADY Fitted with a Manually Lever Actuated Hydraulic Valve made by David Brown (model Q75) or

a Galtech (model Q75), this PART kit will convert your controls to remote function.

Then This Do It Yourself (DIY) full Remote Control Kit is just what you are looking for. Increase your speed & efficiency, improve your safety.

Radio Remote Control System complete with

3 x Double acting pneumatic actuators that replace your valve's spring boxes.
3 x 24 Volt DC (5 port 3 position) electric air solenoid valves (6 functions)
An eight (8) button Remote Control Transmitter and
An eight (8) Channel Remote Receiver.
1 x Compressed air filter regulator lubricator.
Compressed air supply kit with 4 mm PVC tube with quick fit push on fittings and silencers

Please watch this 10-minute video of us discussing explaining and demonstrating the installation.

This second video below shows the process you are required to perform to install the pneumatic air cans

Our brand new system uses an Australian Designed 915 Mhz Radio Remote control with a range of up to 150m. It has been tested and found to comply with the limits for a Class [B] digital device,
pursuant to the Australian/New Zealand standard AS/NZS 4268.

The kit is made up of with 3 brand new double-acting Pneumatic Actuators designed to fit a David Brown Q75, as well as a Galtech Q75-5 Monoblock Hydraulic Flow Control Valve, both rated for oil flows up to 80 litres per minute at 3900 psi.

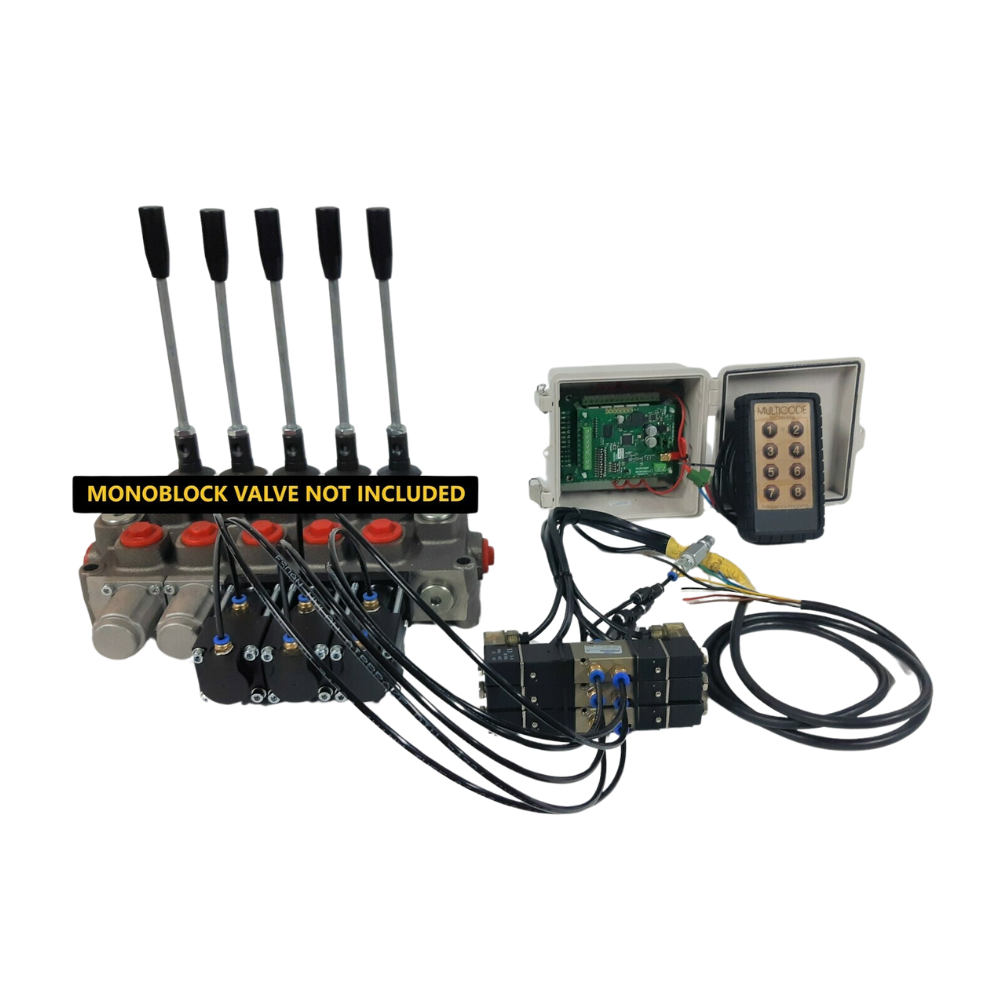

Contents of the Kit Include

VALVE BANK NOT INCLUDED! SEE OPTIONS

1 x 8 button hand help radio remote transmitter and

1 x 8 channel truck-mounted receiver unit with a waterproof case.

3 x Double acting pneumatic actuators that replace your valve's spring boxes.

3 x 24 Volt DC Double-acting (5 port 3 position) Pneumatic Valves

1 x Air Pressure Filter Regulator Lubricator complete with

1 x Air supply kit 4 mm air nylon air hose and push on air fittings.

If your tilt tray / truck does not create air pressure, there are 2 options.

1. The best and most cost-effective method is you can purchase and install a small 12 or 24-volt DC air compressor (with a 100 or 125 PSI pressure switch) complete with a small air receiver tank. A lot of the 4x4 guys do this for their airbag suspension, locker diffs, winches and big tyres.

2. We can help source electric solenoid actuators for the hydraulic valve but these are usually more expensive and not so readily available.

This remote control kit will improve the efficiency and speed as well as the safety of your Vehicle Recovery and Transport Operations.

Good for the following functions

Buttons 1 & 2 Winch In & Winch Out,

Buttons 3 & 4 Tray Slide Out Tray Slide-In

Buttons 5 & 6 Tray Tilt Up and Tray Tilt Down

All 6 valve functions will still retain the manual override levers for actuation directly from the valve.

Tee Bar Lift & Lower and Slide in & Out are manual lever control only or can also be modified for additional cost.

The Video below is taking a standard 3 spool Hydraulic valve and fitting it with Pneumatic Actuators that will receive the remote signal from the remote control units.

(please note that this Not a Galtech Valve it is a Youli from Taiwan)

Wired up and connected to 100 PSI of compressed the end result

Designed specifically for Tilt Tray recovery vehicles but can be modified to work on Crane trucks, Skip Bin Trucks, as well as Front End Loaders, Drilling rigs, farming and excavation equipment. Backhoes or any application where you need to control 5 individual cylinders or hydraulic motors (ie winches).

This unit can replace most medium to large tilt tray truck's existing spool valves. Simply bolt-on, & either reattach your existing hoses, or if a different thread, buy adaptors (we can supply cheaply) to make your existing hose threads compatible.

The remote unit simply needs compressed air from trucks compressor, 24 volt DC power , and basic wiring for the valve's solenoids (wiring diagram provided).

The hydraulic valve will require clean dry compressed air from your truck's air supply for the pneumatic solenoids and spool actuators. Solenoids come complete with push-fit air fittings and silencers.

The 8 button remote control system comes with a transmitter and a prewired receiver.

Valve Levers will remain attached for convenient manual over ride use.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
