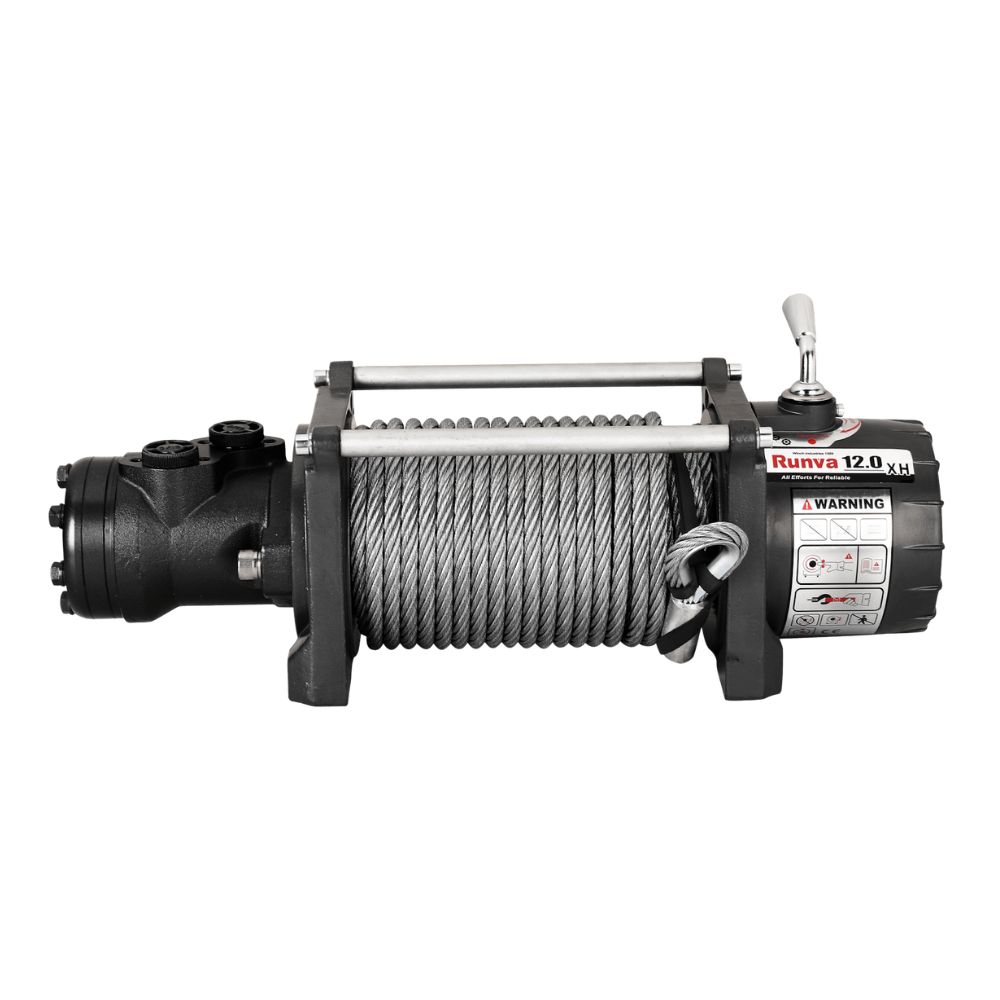

Runva HWX12000 – 12,000lb Compact Commercial Hydraulic Winch - Manual

The Runva HWX12000 is the smallest and most compact hydraulic winch in the Runva lineup, delivering an impressive 12,000lb (5,897kg) of pulling power in a lightweight and space-efficient design. This model is engineered for versatility, operating effectively on low hydraulic oil flow systems between 15–45L/min at 11MPa of pressure, making it suitable for a wide range of vehicle and equipment setups. The HWX12000 features Runva’s patented two-stage planetary gearbox with a 28:1 gear ratio, providing smooth, efficient torque transfer and strong pulling performance. When paired with the optional directional control valve (12V included, 24V sold separately), winching becomes easy and convenient via a handheld remote. This model is ideal for light-duty tow trucks, tippers, log splitters, recreational 4X4 vehicles and a variety of commercial applications. It is also compact enough to fit most 4X4 winch bars and bullbars. For 4X4s without existing hydraulic systems, we recommend consulting a hydraulic specialist to ensure correct setup, as power steering pumps typically do not provide adequate flow. As a hydraulic winch, the HWX12000 offers a very high duty cycle, meaning it can operate continuously for much longer than electric winches when installed correctly. This makes it a reliable and long-lasting choice for demanding operators and environments.

Key Features

• 12,000lb (5,897kg) Hydraulic Pulling Capacity
• Compact and Lightweight Design for Versatile Installations
• Patented Two-Stage Planetary Gearbox with 28:1 Ratio
• Operates on Low Oil Flow Systems (15–45 L/min)
• Automatic Load-Holding Screw Cone Brake
• Steel Cable, Strong Drum and Robust Build Quality
• Fits Most 4X4 Winch Bars and Bullbars
• Optional Directional Control Valve for Remote Operation
• High Duty Cycle for Long, Continuous Operation

Technical Specifications

Rated Line Pull: 12,000lb (5,897kg)
Hydraulic Motor Displacement: 65ml/r
Oil Flow: 15–45L/min
Pressure: 11MPa
Gear Train: Full steel, two-stage planetary
Gear Ratio: 28:1
Clutch: Sliding ring gear
Clutch Handle Position: Gearbox can be rotated
Brake: Automatic load-holding screw cone
Cable: 10.2mm × 25.5m steel cable
Drum Size: 63mm × 223mm
Mounting Bolt Pattern: 254mm × 114.3mm
Overall Dimensions: 550mm × 174mm × 217mm
Finish: Grey powder coat
Warranty: 5-year motor and lifetime mechanical warranty
SKU: HWX1200012VS

Performance

0kg – 2.0MPa, 5 L/min, 0.5 m/min
1,361kg – 3.3MPa, 10 L/min, 1.1 m/min
2,722kg – 7.2MPa, 20 L/min, 2.3 m/min
4,082kg – 9.2MPa, 35 L/min, 4.0 m/min
5,443kg – 11.0MPa, 45 L/min, 5.3 m/min
Rated Line Pull by Layer: 1st – 12,000lb, 2nd – 9,563lb, 3rd – 7,949lb, 4th – 6,801lb. Total rope on drum: 25.5m.

Optional Accessories

Handheld remote, wireless remote, 12V or 24V directional control valve, valve block.

Ideal Applications

Light-duty tow trucks, tippers, log splitters, recreational 4X4 vehicles, agricultural equipment, portable hydraulic machinery and commercial applications requiring continuous-duty operation.

Why Choose Runva

Runva winches are known globally for strength, reliability and long-term performance. The HWX12000 delivers compact size, powerful pulling capability and exceptional durability, making it an excellent choice for operators needing a hydraulic winch that performs consistently under demanding conditions.
