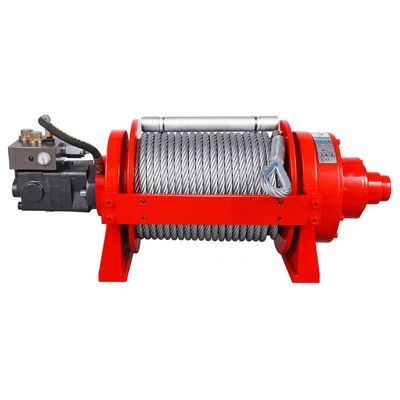

Runva HWN15000I – 15,000lb Commercial Hydraulic Winch

Experience serious pulling power with the Runva HWN15000I, a heavy-duty hydraulic winch engineered for commercial, industrial, and extreme off-road applications. Designed to outperform in the harshest environments, this compact powerhouse delivers a massive 15,000lb (6,804kg) line pull, making it ideal for recovery trucks, expedition vehicles, marine equipment, log splitters, and hydraulic machinery. Unlike electric winches, the HWN15000I is powered by your vehicle’s hydraulic system—providing consistent, reliable performance without overheating. With an overall length of just 586mm and a weight of 71kg, it offers exceptional capability where space and weight are critical.

Key Features

• Massive 15,000lb Hydraulic Pulling Power – Built for commercial recovery, industrial lifting, and heavy equipment applications.
• Compact & Powerful Design – Only 586mm long, allowing installation in tight spaces.
• Wet-Type Hydraulic Disc Brake – Automatic load holding for maximum safety and control.
• Two-Stage Steel Planetary Gearbox – Strong, efficient, and engineered for long-term reliability.
• IP67 Rated Weather Protection – Fully sealed for mud, water, sand, and extreme conditions.
• Manual Stainless Steel Rotary Clutch – Easy to operate
• Optional Remote Control Kit – Add handheld or wireless remote + 12V/24V directional control valve.
• Commercial Grade Build – Ideal for tow trucks, Iveco Daily, Unimog, off-road builds, marine, forestry, and custom hydraulic systems.

Technical Specifications

Rated Line Pull: 15,000lb (6,804kg)
Motor Displacement: 80ml/r
Oil Flow Requirement: 25–60 L/min
Pressure Requirement: 13MPa
Gear Train: Full steel, 2-stage planetary
Gear Ratio: 33.4:1
Brake: Automatic hydraulic disc
Clutch: Stainless steel rotary clutch
Cable: 12mm x 26.5m steel cable
Drum Size: 89mm × 217mm
Overall Dimensions: 586mm × 255mm × 262mm
Mounting Bolt Pattern: 254mm × 114.3mm (4 × M12)
Ingress Protection: IP67
Finish: Red powder coat
Warranty: Limited 18-month commercial warranty
SKU: HWN15000IS

Hydraulic Performance Chart

Line Pull 0kg – 3.0MPa, 5 L/min, 0.5 m/min
Line Pull 2,268kg – 4.3MPa, 10 L/min, 1.0 m/min
Line Pull 4,536kg – 8.7MPa, 20 L/min, 2.0 m/min
Line Pull 5,443kg – 10.0MPa, 40 L/min, 4.0 m/min
Line Pull 6,804kg – 13.0MPa, 60 L/min, 6.4 m/min

Optional Accessories

Handheld or wireless remote, 12V/24V directional control valve, valve block.

Ideal Applications

Tow trucks and recovery vehicles, Unimog and Iveco expedition trucks, marine winching systems, forestry equipment, log splitters, industrial and agricultural machinery, portable hydraulic machines.

Why Choose Runva

Runva is trusted worldwide for producing reliable, commercial-grade hydraulic winches built for demanding environments. The HWN15000I delivers exceptional performance, durability, and safety with every pull.
