The listing contains all the hydraulic parts that you will require to assemble your very own 15,000lb tilt tray. The PTO & pump are priced to suit a HINO FD 1994. We can supply PTO & pump to suit your model truck, (price will differ slightly up or down) All parts can be customized to suit your needs/build. Please call to discuss, or email us to have a custom quote to suit your needs. Freight will need to be added to cost. Freight is not included in this price.

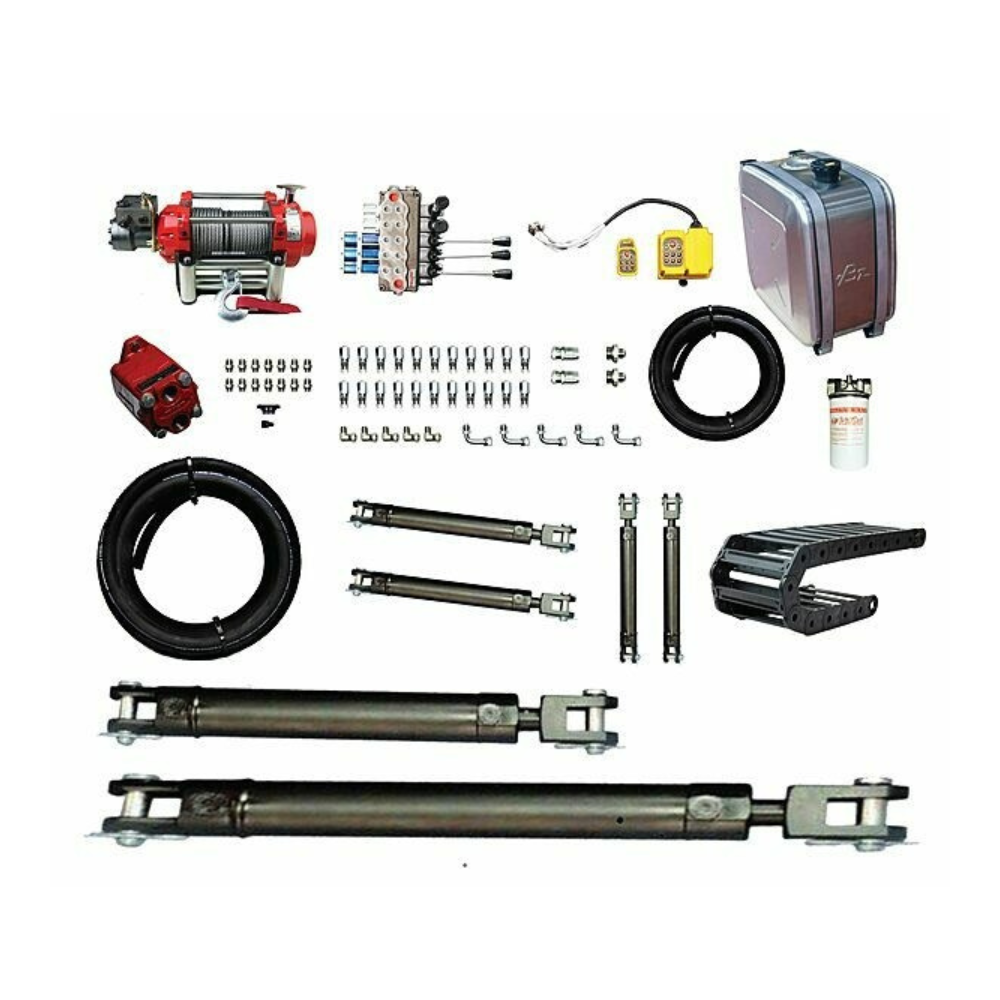

These are all the items in the price. For further details call us on (07) 5563 1982
Air solenoid operated PTO with in-cab controls pic no. 4.
High Flow PTO Pump for fast operation pic no. 4.
Chassis mounted oil tank with return line filter pic no. 5.
High flow 5 lever flow control valve with self-centering controls & air/electric solenoids (3 remote controlled, 2 manual for car cradle) pic no. 11. (Optional ultra-reliable and compact Electro-Hydraulic Valves are also available, these valves do not require compressed air also ideal for smaller trucks that do not have compressed air)
15,000lb Hydraulic planetary drive winch with the manual free spool, front roller, and 20mtrs high tensile wire rope with swivel hook pic no. 3.3.5m stroke heavy-duty slide cylinder (Custom built to suit your requirements), 3.5” bore, 1-3/4” rod pic no. 1.
24” stoke Tray tilt cylinders, 2.5” bore, 1.5” rod pic no. 8.
Two Rear Lift Cradle Cylinders 2.5” bore, 1.5” rod, 14” stoke pic no. 9
One Rear Cradle slide Cylinder 2.5” bore, 1.5” rod, 48” stoke pic no. 2
4 x Safety Over centre/counterbalance valves (fitted with hard pipes is an extra cost)
Remote control for tray including winch, tilt, and slide. pic no. 10 (Optional Australian made Radio Remote controls also available )
5,000 psi working pressure hydraulic hose 20 meters pic no.13
Field fit reusable hose tails, and adaptors for valve cylinders, pic no. 12
Cable/Hose carrier 3 meters of, 35mm High x 73mm Wide Cable Chain pi
