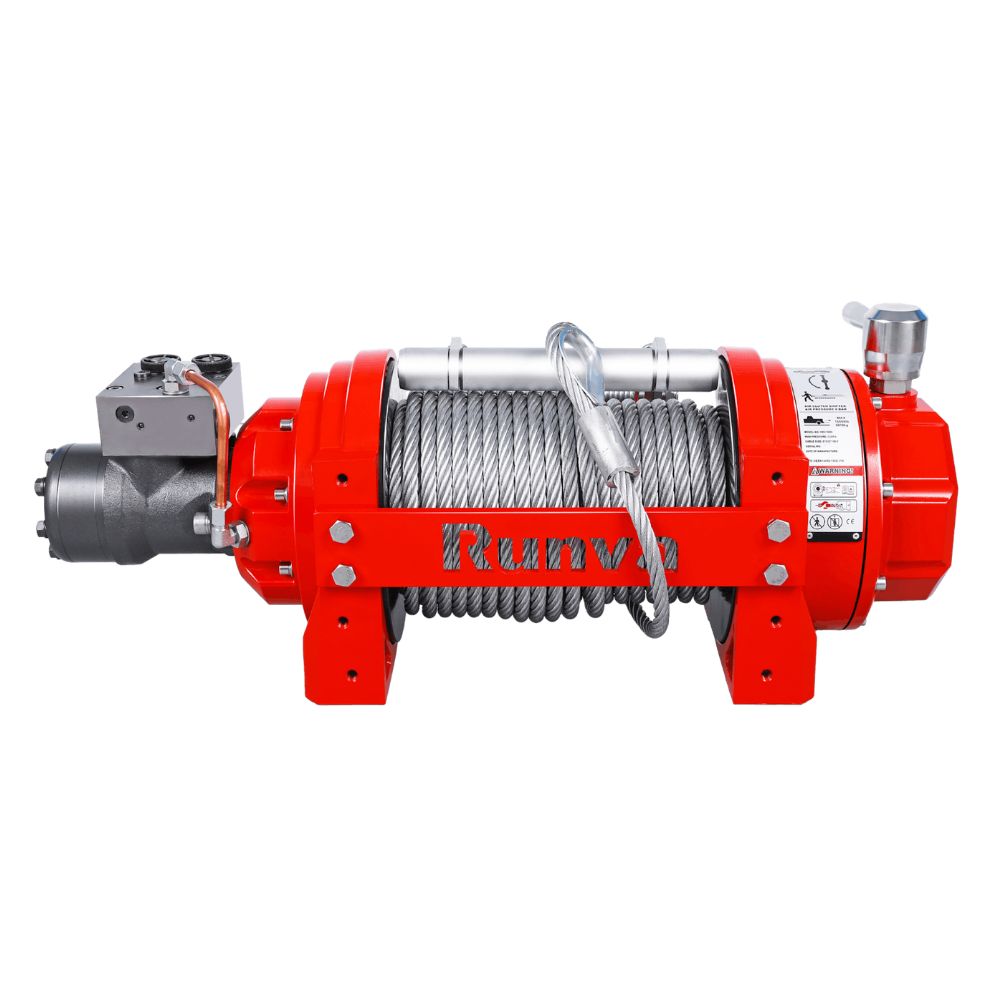

Runva HWV15000 – 15,000lb Commercial Hydraulic Winch

The Runva HWV15000 is a high-performance commercial-grade hydraulic winch engineered for demanding industrial, off-road and recovery applications. Delivering a huge 15,000lb (6,804kg) of line pull, this model stands out due to its wide drum and reduced number of cable layers, allowing it to maintain a higher minimum pulling force compared to the HWN15000I. Built to meet strict European EN standards, this is one of Runva’s hardest-working 15,000lb hydraulic winches, trusted for professional and continuous-duty use. A cable tensioner is fitted as standard, ensuring the rope lays evenly and remains tight during operation, improving safety and reliability. The wet-type hydraulic disc brake provides automatic load holding, while the full steel two-stage planetary gearbox delivers efficient, consistent torque under load. The manual clutch features a smooth 180° internal rotation and can be upgraded to the optional Runva Air Clutch system for even easier remote engagement—ideal when the clutch lever is hard to reach. Thanks to its full IP67 waterproofing, the HWV15000 is built to operate in mud, water, salt, snow and harsh weather environments without compromise. It is the perfect choice for tow trucks, recovery vehicles, expedition trucks like Unimog and Iveco Daily, log splitters, marine applications, industrial machinery and portable hydraulic systems. If remote operation is required, a full optional accessory kit is available, including a handheld remote (wireless optional), directional control valve in 12V or 24V, and a valve block.

Key Features

• High 15,000lb Hydraulic Pulling Capacity
• Wide Drum Design with Fewer Layers for Higher Minimum Pull Force
• Factory-Fitted Cable Tensioner for Clean and Controlled Spooling
• Wet-Type Hydraulic Disc Brake for Automatic Load Holding
• Full Steel Two-Stage Planetary Gearbox for Strength and Durability
• IP67 Waterproofing for Extreme Conditions
• Optional Air Clutch Upgrade for Convenient Remote Control
• Ideal for Tow Trucks, Unimog/Iveco Expedition Rigs, Marine and Industrial Applications

Technical Specifications

Rated Line Pull: 15,000lb (6,804kg)
Motor Displacement: 160ml/r
Oil Flow Requirement: 25–60 L/min
Pressure Requirement: 16MPa
Gear Train: Full steel, 2-stage planetary
Gear Ratio: 17.3:1
Brake: Automatic hydraulic disc
Clutch: Stainless steel rotary clutch (Air Clutch optional)
Cable: 12mm × 26.5m steel cable
Drum Size: 127mm × 266mm
Mounting Bolt Patterns: 303.5mm × 114.3mm and 368.5mm × 171.2mm (8 × M12)
Overall Dimensions: 735mm × 300mm × 277mm
Ingress Protection: IP67
Finish: Red powder coat
Warranty: Limited 18-month commercial warranty
SKU: HWV15000S

Performance

0kg – 2.0MPa, 10 L/min, 1.3 m/min
3,629kg – 9.2MPa, 20 L/min, 2.6 m/min
4,536kg – 11.5MPa, 40 L/min, 3.8 m/min
5,448kg – 14.0MPa, 40 L/min, 5.1 m/min
6,810kg – 17.5MPa, 50 L/min, 6.4 m/min
Rated Line Pull by Layer: 1st – 15,000lb, 2nd – 12,791lb, 3rd – 11,150lb. Total Rope on Drum: 26.5m.

Optional Accessories

Wired remote, wireless remote, 12V/24V directional control valve, valve block.

Ideal Applications

Tow trucks, recovery vehicles, Unimog and Iveco expedition trucks, forestry equipment, industrial machinery, portable hydraulic machines, marine vessels and heavy-duty agricultural equipment.
