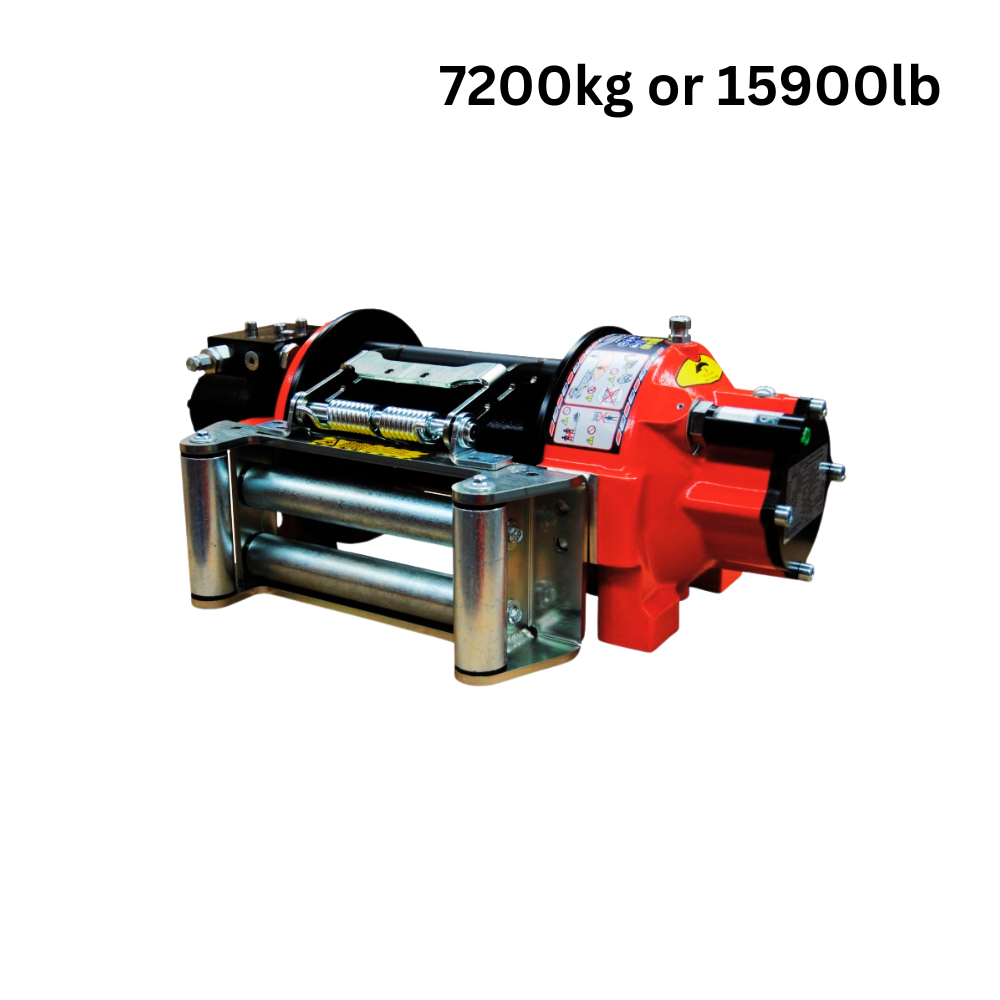

Hydraulic Winch with 15,900 lbs (7,200 Kg) Line pull, 35 metres of 13 mm High Tensile Steel Cable Air Clutch and Heavy Duty Planetary Gear.

The EPH 7200FN is a tough Italian made hydraulic planetary drive winch designed for industrial applications requiring power, efficiency, and durability. it combines advanced technology with a high pulling capacity, making it ideal for demanding Australian conditions.

Certified to SAE J706 Meaning

• Designed for Intermittent Use: Primarily intended for occasional pulls and lifts.

• Personnel Safety: Not intended for the movement of personnel.

• Automatic Safety Brake: Equipped with a brake to control loads during lowering and hold them when hydraulic power is off or fails.

• Free-Spooling Clutch : May have a clutch for free-spooling, but it should not disengage under load.

• Drag Brake (Optional): May have a drag brake to control free-spooling, but it's not a primary load-holding mechanism.

• Hydraulic Flow Control (Optional): May use a hydraulic flow control valve to regulate lowering speed.

• Versatile Power Source: Can be powered by various sources, including hydraulic, electric, or pneumatic.

• Power Source Exclusion: Power sources (e.g., hydraulic motors) are not part of the winch standard, except for their role in sending a hydraulic pressure signal to the brake system.

Accessories (included):

• Heavy-Duty Roller Fairlead: Zinc-plated for long-lasting durability
• Cable Tensioner: Zinc-plated for consistent performance
• Over-centre valve

Accessories (optional):

• Wire Rope 13 mm x 35 m long, perfect for industrial demands .

Key Features:

• Compact and Durable: Built with a Case Hardened Alloy Steel Single-stage planetary gear train for enhanced durability and compactness.
• High-Speed Winching: Achieves fast payout and rewind for maximum efficiency.
• Versatile Installation: Suitable for both foot and side mounting to fit various vehicle and mobile setups.
• Lightweight Strength: Made from a special hardened Aluminum Alloy casting and finished with a protective powder-coated finish for reduced weight and increased weather and UV resistance.
• Reliable Brake System: Multi-disc pressure-released brake delivers effective full brake capacity for enhanced safety.
• Oil-Cooled Performance: Gears and brakes are fully lubricated in an oil bath for quiet operation and long life.

Key Specifications:

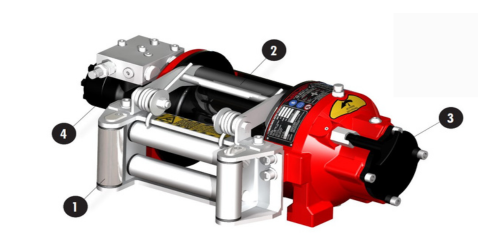

1. Heavy-duty Roller Fairlead (Option): Reduces Cable wear, tear and rubbing by guiding the cable into and out of the winch.
Made with a Heavy duty mounting frame with zinc plated finish.
It features close tolerance machining, for perfect mounting onto winch body.
The large diameter rollers are manufactured from hardened thick walled steel tube and are fitted with heavy-duty composite bushes, for reduced maintenance and Long Cable Life.

2. Cable tensioner (Option): Prevents wire rope from tangling when not under tension and bunching up when free spooling.
Tensioner has a strong frame with heavy duty springs, it has a Zinc plated finish, the top roller is made from a composite Synthetic material to resist rust.

3. Manual clutch (option) : Manual clutch for drum free spooling.

4. Hydraulic motor: High Torque Orbital hydraulic motor, with splined output shaft and durable painted finish.

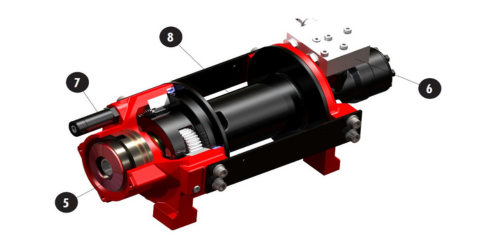

5. Heavy-duty automatic brake: Automatic internal brake, designed using special heavy duty seals and cone spring components to assure excellent brake performance and reliability. (see image below)

6. Over-centre valve (Option): Special noiseless over-centre valve Protects the winch and Hydraulic Motor against over loading and over pressurisation. Based on Vime’s own design for low profile hose connection.

(Please see image below)

8. Drum: It has a single or double system for wire rope mounting. The dual rope anchor point based on Vime’s own design in according with CE Machinery Directive to prevent rope release, depending on wire rope diameter according to the different winch models.

Ideal for all purpose industrial tasks, this hydraulic winch ensures high efficiency, reliable braking, and is Ideally suited for multi purpose Australian Industrial and automotive applications.

Hydraulic.Online delivers nationwide and worldwide.

Purchase this "Winch" now by clicking the "Add to Bag" button! Or give us a call on 1300 1 HOSES for more information. You can send us a message after hours on sales@mhfgc.com.au.

Messages will be answered in business hours (Mon-Thurs 8:00am-5:00pm & Fri 8:00-3:00pm AEST)
