Ready to fit Remote Control compatible Monoblock Hydraulic Oil Flow Control Valve

3 lever / 3 spool all remote control , or 5 lever with 3 spools remote control

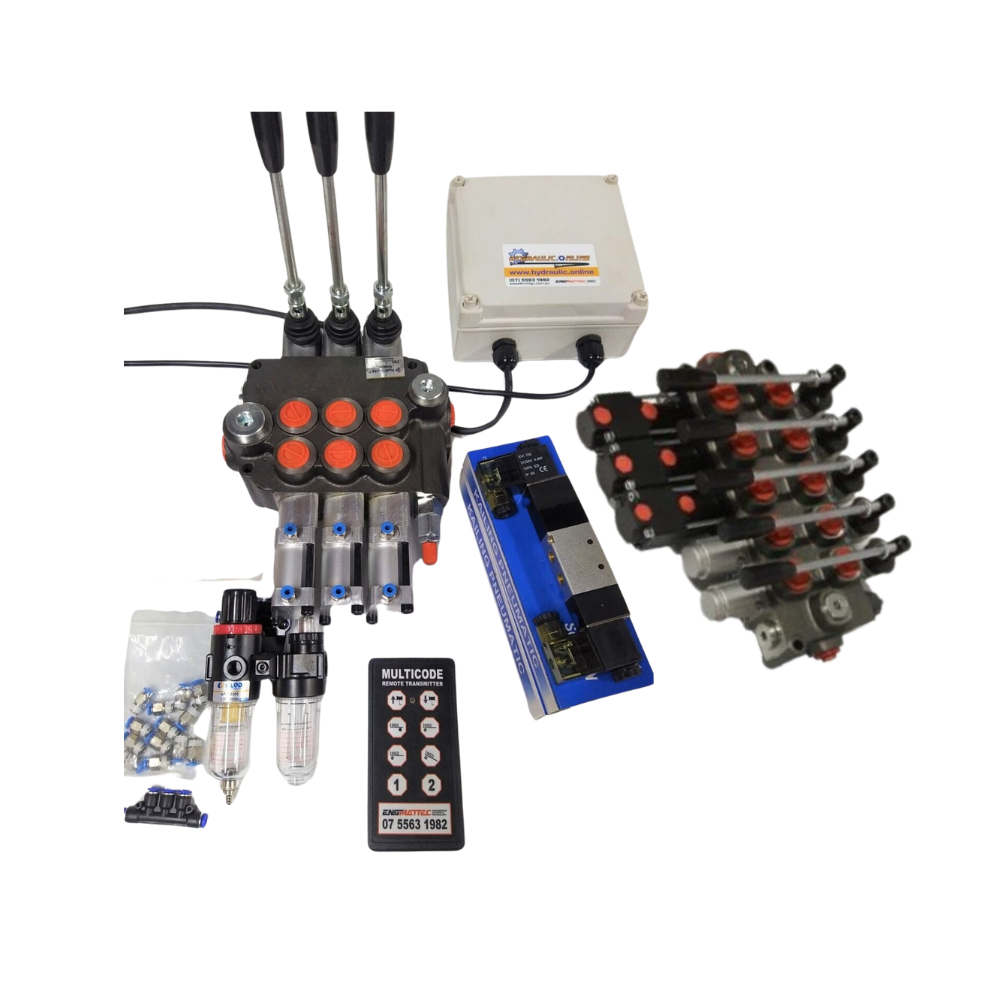

This is our best value tilt tray valve with remote control package. It is a brand new high quality made in European made valve, 80 liter per minute complete with 8 button remote control unit, plus air hose & fittings. It is ideal for for Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes, or any application where you need to control 3, or 5 individual cylinders or hydraulic motors (ie winches).
This unit can replace most medium to large tilt truck existing spool valves. Simply bolt on, either re-attach your existing hoses, or worst case buy adaptors (we can supply ) to make your hose threads compatible. (BSP ports)
The remote control function on this valve requires air supply to the air valve pneumatic solenoids. It requires power, either 12 or 24 volts(please specify), & basic wiring to the valve solenoids. This package comes with an Air water Separator / Oiler, to ensure long-term trouble-free working.
Our valve solenoids come complete with push-fit air fittings. We supply a few meters of air hose plus push fits to hook up. You will need to join to air on your truck. (most air tanks have spare blanking plugs to run from, do NOT tee into air brakes!).
The 8-button remote Transmitter is supplied programmed and linked to a Receiver unit that will send signals directly to the control valve. The Monoblock Hydraulic flow control valve is also supplied with Levers for convenient manual use. These can be spun 180* if required for fitting. You can request us to turn the lever boxes as per photo. Otherwise you are able to easily remove allen key bolts & turn yourself.
This valve comes standard with 3 or 5 cylinder spools, which means when the lever or button has released the tray, winch, etc will lock the cylinder or winch in place.
Also available is a 5-lever valve with 3 remote control functions.
Use remote functions for Winch, Tray Tilt & and Tray Slide, and use two manual levers for Car Cradle or Tee Bar.
Remote control handpieces (transmitters) are available off the shelf if lost.
These valves are regularly used in hydraulic circuits to divert the flow of high-pressure Hydraulic oil and are typically used to control the speed and movement of hydraulic cylinders or motors
The remote is a semi-water-resistant unit, however, care needs to be taken mounting it. We recommend mounting it in your cab, then running some 7-core trailer wire back to the valve. It comes with an installation guide.
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 3, or 5 option
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 80 liters/min (20 Gallons per Minute)
Max Working Pressure = 315 Bar (4725 PSI)
Spool Type = Cylinder
Spool Movement = Lever action, Spring Return to Center.
Built-in Relief Valve = Adjustable (factory set at 175 bar 2500 PSI)
Ports Sizes
Pressure Port 1/2" BSPP 'P'
Cylinder Ports 1/2" BSPP
'T' port. Tank Port 3/4" BSPP # DO NOT ACCIDENTIALLY HOOK PRESSURE INTO THIS PORT! Valve will crack. Ports are marked.
Power beyond port 3/4" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 250 x 200 x 60 mm
Weight 18KG
Many types of adapters threads, hydraulic hose, and field-fit hose fittings are available please see our other listings
This is a High-Quality Valve and has many outstanding features, including.
built-in adjustable relief valve high performance,
high efficiency,
small volume,
mass flow,
leak resistance.
Features
Compact construction.
Low-pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
High accuracy spool is hardened for long-term accuracy.
Sub-plate mounting.
Handle shift operation.
Please note
Installation; As per the listing photos, there is a choice of two pressure ports "P" (only use one), two "T" Tank return ports and also there is a "C" port. This "C" port is for the: Power Beyond function. This allows another valve to run pressure from this C port downstream if necessary. (must be a lower volume though, & MUST have return hoses from BOTH valves. Power beyond plug extra cost). A & B ports run to your cylinder or other functions.
