ON BACK ORDER ETA MID TO MID TO LATE NOVEMBER 2024

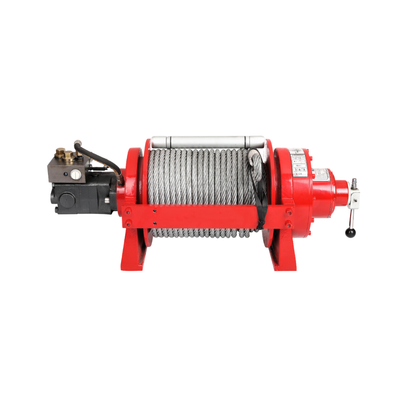

Specifications of the Runva HWV 15,000

This Is A Brand New High Quality Hydraulically Operated commercial grade Winch.
15,000 Lb Winch, Ideal For Tow Trucks & Tilt Trays.
It Weighs over 80kg. We also have a more compact 15,000lb model, please see the HWN listing.
This Has A Manual release Clutch For Line Free Wheel Out.
there is an Optional pneumatic air freewheel clutch, please see the options on the right

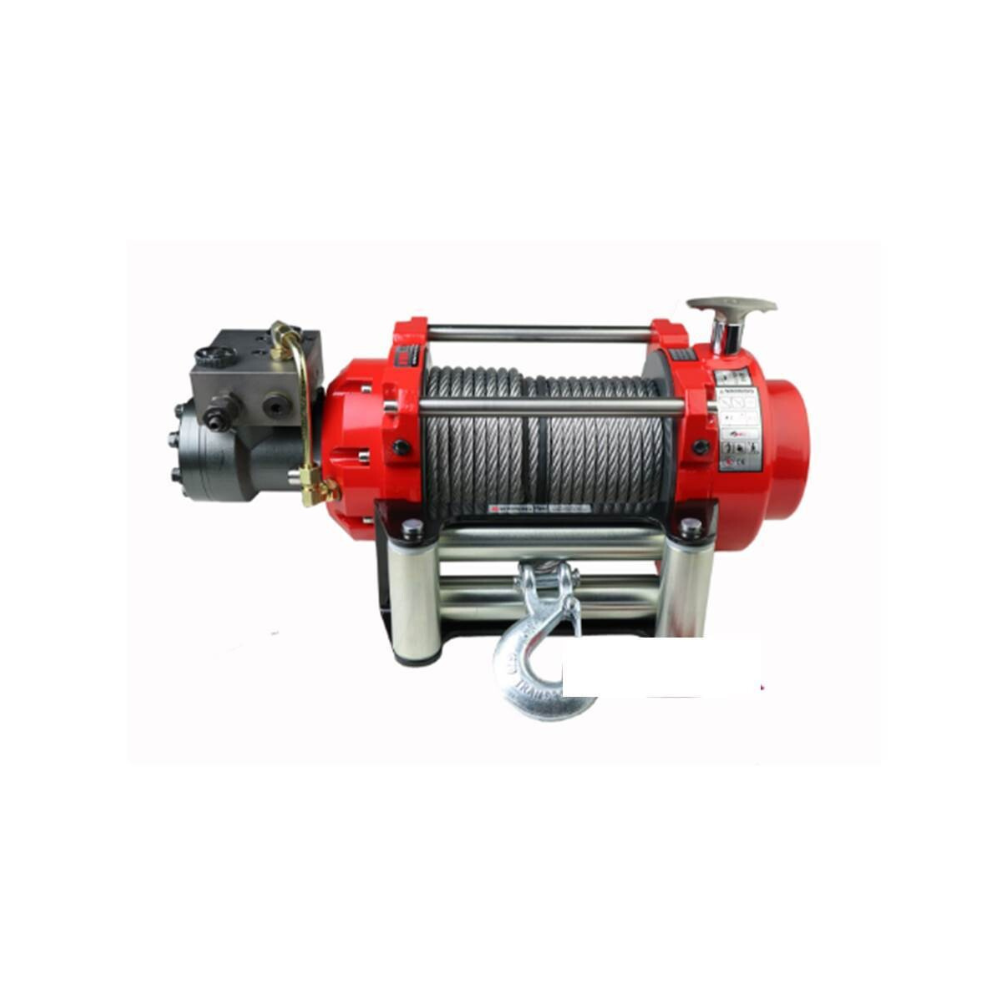

Please Note: The Fairlead Roller Assembly used for guiding the cable onto the drum Is An Optional Extra Part.

Specifications
Rated Line Pull 15,000lb (6,804 kg)
Motor Displacement 160cc/ rev
Oil Flow 25-60 Lt/Min
Pressure 160 bar ( 2,400 psi)

GEAR TRAIN. FULL STEEL 2 STAGE PLANETARY GEAR RATIO 17.3:1

AIR FREESPOOL CLUTCH AVAILABLE

P67 INGRESS PROTECTED
Cable material, size and length: Hight tensile Steel Cable 12mm diameter x 26.5m long
Drum Size 127mm x 266mm
Mounting Bolt Pattern :303.5mm x 114.3mm; 368.5mm x 171.2mm (8x M12 Bolts)
Overall Dimensions 735 mm X 300 mm X 277 mm
Weight 84kgs
