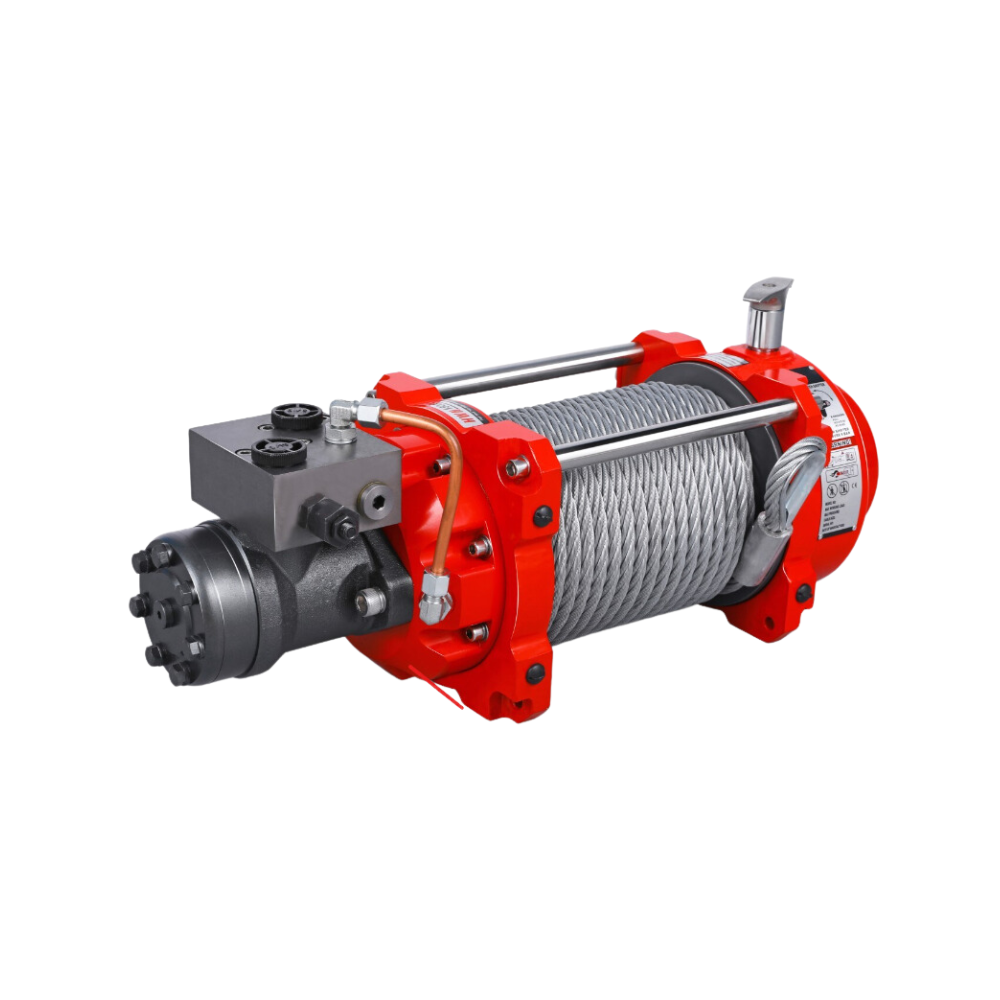

New quality Commercial Grade Compact and Narrow Hydraulic Operated Winch.

It is ideal for tow trucks & smaller tilt trays with space limitations, but can also be used for many applications.

This unit has a rated line pull of 15,000 pounds or 6,000 kilograms

Price includes the Fairlead cable guide roller and spring loaded tensioner .

Also available as an option, is an Pneumatic air clutch.
This is a user friendly addition that gives the operator the convenience of simply activating the winch wind out button from the ground rather than having to manually pull up & turn the T handle lock on top of the unit.

You would need a compressed air / electric solenoid to use this function with a remote control.
Please see dimension drawing in photos. We also have a larger 15,000 in other listing. HWV

Specifications:

• Rated Line Pull 15,000lb (6,800 kg)
• Hydraulic Motor Displacement 80 cc/rev
• Oil Flow Requirements 25 – 60 Lt/Min
• Oil Pressure Requirements 13 MPa, 130bar , 1950psi Max Pressure
• Gear Train Full Steel 2 Stage Planetary
• Gear Ratio 33.4:1
• Clutch Type Stainless Steel Rotary Clutch
• Manual Clutch Release Handle Position: Top Of Winch (For Fast Roll Out)
• Brake Automatic Load Holding Hydraulic Disc
• Cable Type Steel Cable size 12mm diameter x 26.5 Mts long with Forged Steel Hook
• Drum Size 89mm X 217mm
• Mounting Bolt Pattern 254mm x 114.3mm (4 x M12 Bolts)
• Overall Dimensions 586mm x 255mm x 262mm (See Drawing In Photos)
• Warranty 18 Month Commercial Warranty
• Sku HWN 15000
• Shipping Weight 71.00kg
