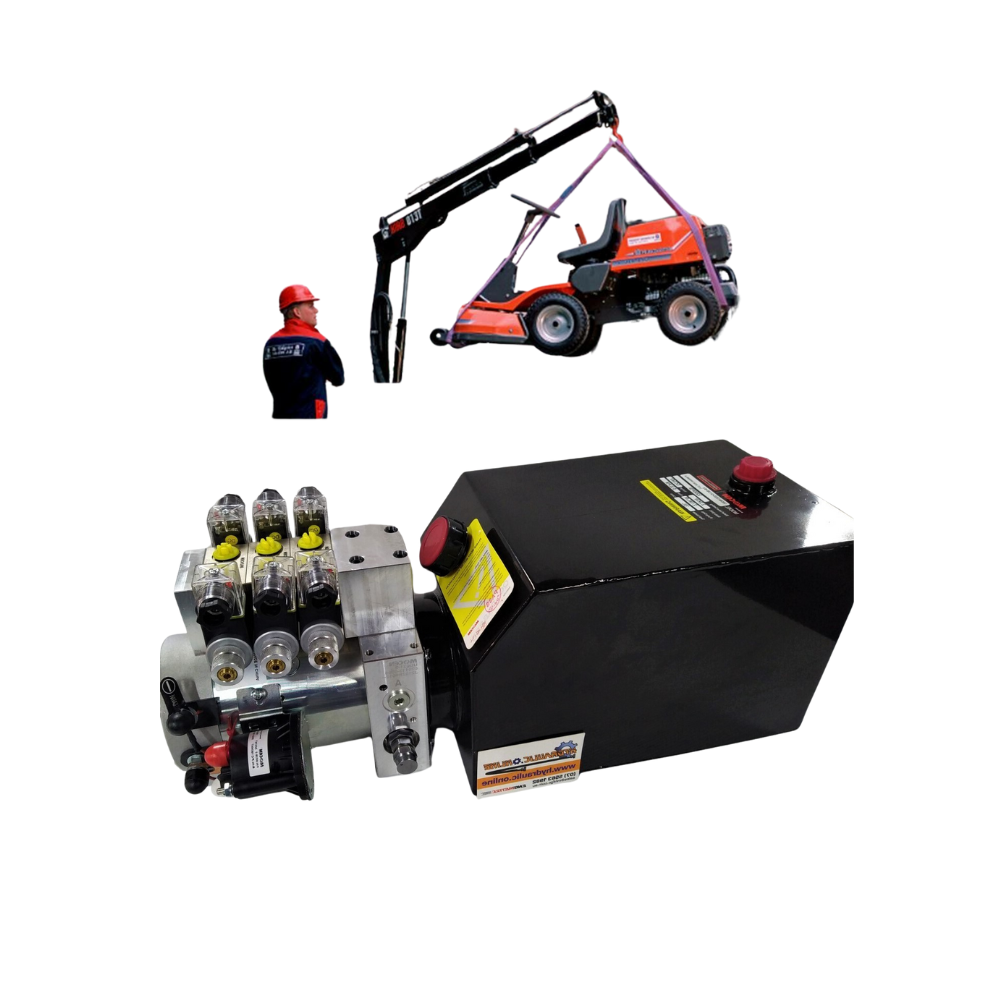

Hydraulic Power Unit for Crane Truck 12 - 24V DC 3 x Dbl Acting solennoid valves flows up to 9.0 Lt/Min and pressures up to 3,000 PSI, HIAB, UNICH, etc

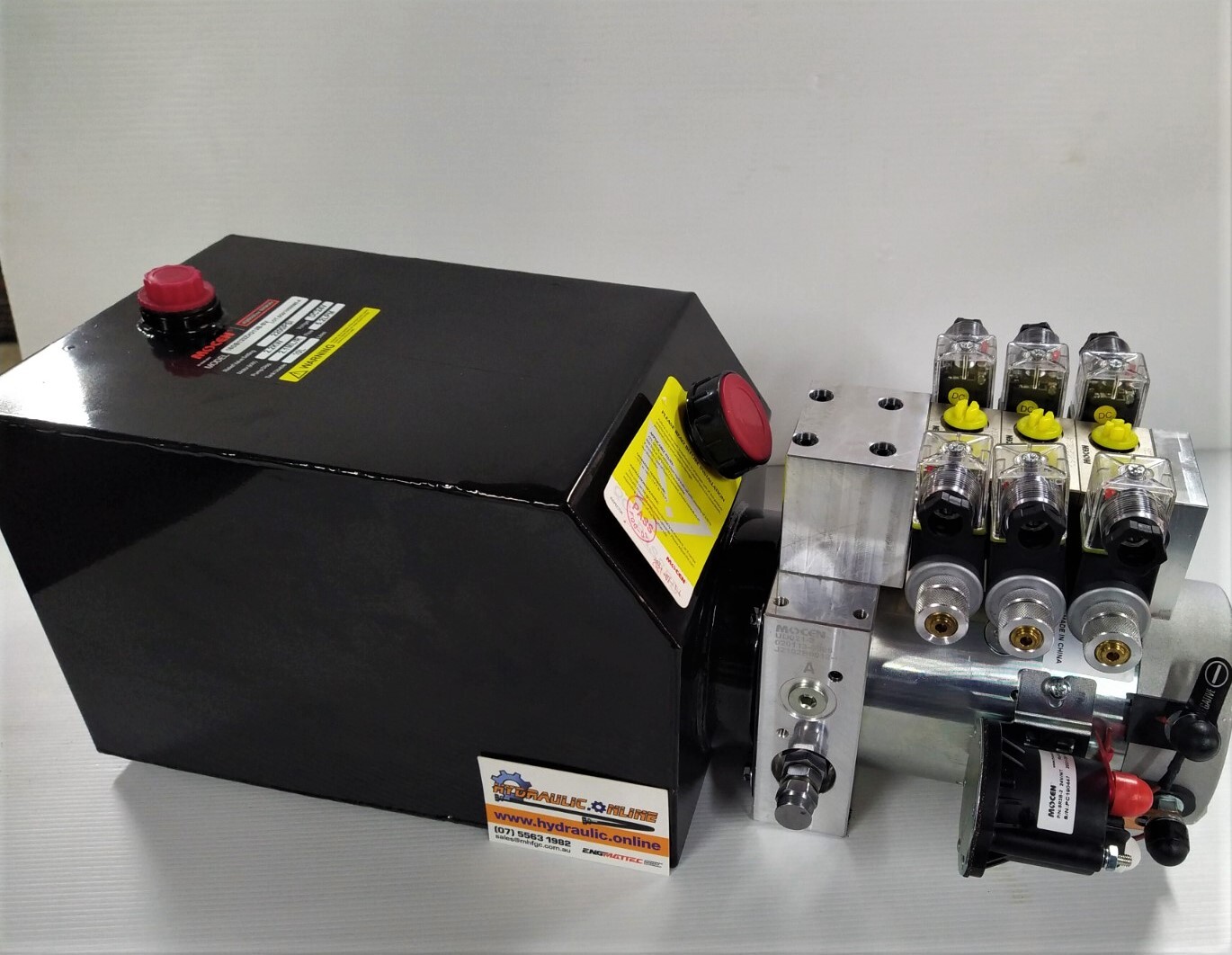

Powered by 12 or 24 Volt DC this compact Hydraulic Power Pack or HPU comprises a Motor, Pump, Tank & three Double Acting Solenoid valves.

It is designed to supply an oil flow of up to 9 Lt/Min (at a reduced pressure) or up to a Pressure of 3,000 PSI (at reduced flow) to three separate double acting Hydraulic functions.

This is an ideal pump replacement to operate small to medium small truck or ute mounted Hiab-type cranes.

This will lift full tonnage, & 9 Lpm is an ideal speed for small sized cranes.

We also have a more powerful 3 and 4 kW units, which will lift the same tonnage but will move your crane faster.

These larger powered units will be a better choice for small to medium cranes

Available in up to Six sandwich valves (12 solenoids) Please contact us for pricing.

This unit is ready to be hooked up to your power cables, & can then be operated from the existing electric or remote control, or we can supply a 6-button pendant control or even a remote control unit. (See remote control listings in our store) , LINK AT BOTTOM)

Will suit any other 2 circuits double acting hydraulic circuit requiring intermittent use, low flow, and a high-pressure hydraulic oil.

This Unit is capable of generating up to 200 Bar (3000 PSI) Pressure at a reduced flow rate.

This is a quality motor and pump Manufactured to very high standards.

• Power Rating 12 (2.5 KW) or 24 DC, (2.8 KW)
• Flow 9.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3,000 PSI)
• Pressure relief valve Factory set at 140 BAR (2000 PSI)
• Ports 9/16 UNO
• Steel 10 Liter capacity Oil tank with combination breather/level plug and separate fill plug.
• Three Solenoids are mounted to a Steel Valve Block that has a spring to the center position with all Ports Closed in center position.
• Six Heavy-Duty Solenoid Coils
• Manual Actuation or Override on Solenoid Spindles.
• LED Indicator Lights on Hirschmann Type cable connectors to coils
• Flexible Mounting Positions can be mounted Horizontally or Vertically (Motor Up)
• Safety thermistors are installed in motor windings to prevent overheating.
• Dimensions Length = 49 cm Width = 20 cm Height = 22 cm
• Weight 22KG

Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
Allowable run time 12.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 400 seconds OFF.

Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
Allowable run time of 7.5 minutes and then allowed to totally cool down.
or 150 seconds ON - 640 seconds OFF.

Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
Allowable run time 1.7 Minutes and then allowed to totally cool down
or 150 seconds ON and 2000 seconds OFF.
For any questions, you may have or for more information regarding this listing please call us at (07) 5563 1982 or email us at sales@hydraulic.online
