PLEASE CALL FOR STOCK AVAILABILITY

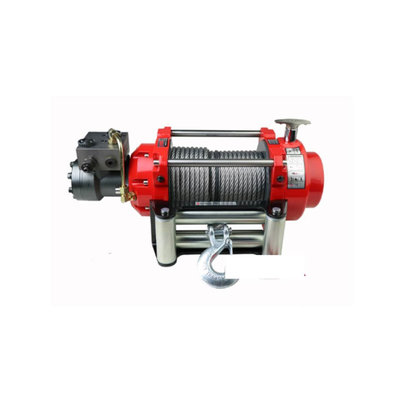

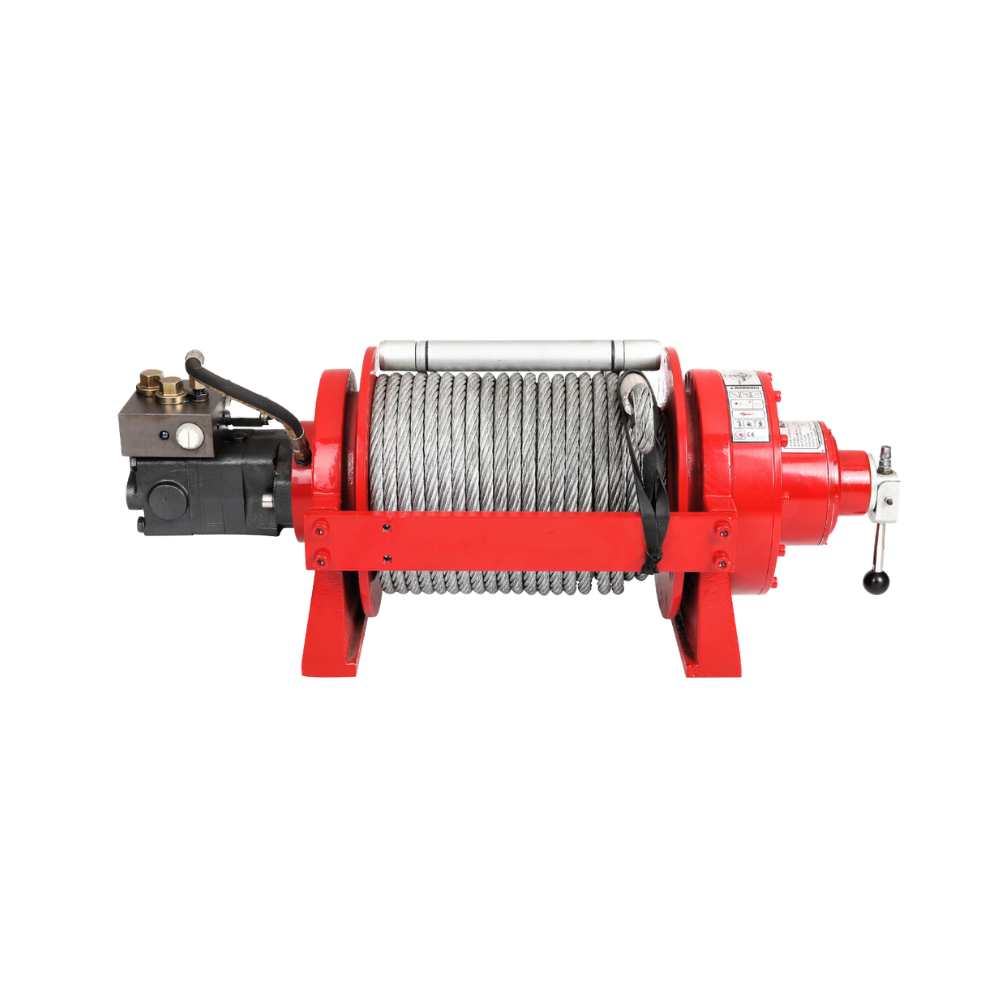

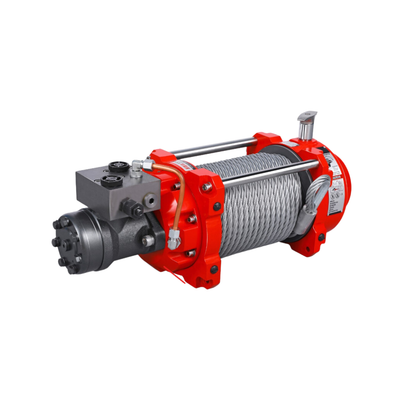

This is a brand new hydraulic cable winch with a rated line pull of 20,000 pounds or 9,000 kg.
It is a commercial grade hydraulicly operated winch with an 18-month warranty.
It comes complete with 48 meters of 14 mm diameter high tensile steel cable plus a forged steel hook.

Also available is an optional Fairlead roller to guide the cable back onto the drum when pulling equipment at an angle.
It does come standard with line tensioner.
The freewheel line out clutch is a dual Manual lever as well as air operated type.

It is ideal for tow trucks & tilt trays, but can be used for many applications. Please see dimension drawing in photos. Please see dimensions, this is a large unit.

We also have two 15,000lb winches in other listing. Please click the link below

Click here to see our 15,000 pound capacity winch

Specifications:

Rated Line Pull 20,000lb (9,072kg)
Motor Displacement 100cc
Oil Flow Requirements 25 – 75 Lpm
Oil Pressure Requirements 175 bar / 2,600 psi
Gear Train; Full Steel 2 Stage Planetary Gear Ratio 39:1
Clutch Type; Manual lever plus Air Clutch, Handle Position Side Of Winch
Brake; Automatic Load-Holding Hydraulic Disc
Cable Type; Steel Cable Size 14mm X 48 M Long
Drum Size; 138mm X 316mm
Mounting Bolt Pattern; 431mm X 64mm ; 431mm X 192mm (8 X M14 Bolts)
Overall Dimensions; 835mm X 390mm X 320mm
Warrantylimited; 18 Month Commercial Warranty
Shipping Weight 163.00kg
Optional Fairlead roller (at additional cost)

Freight is ex Brisbane
