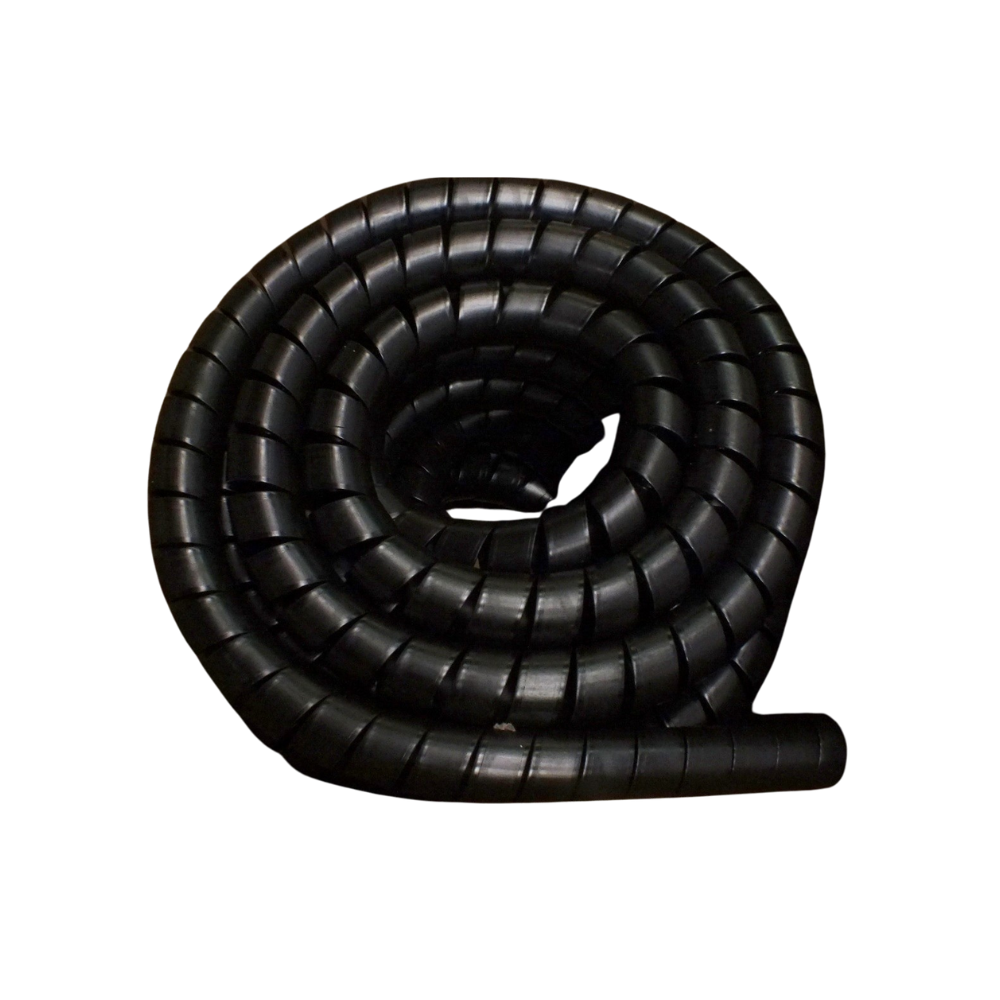

Spiral Wrap Hose Protection Large Sizes

Name: Spiral Wrap Hose Protection | Large Sizes Available
SKU: R ...
Price: 216.99 AUD
Availability: InStock

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Hose Burst Protection Sleeve & Spiral Wrap

SKU R ...

AU$216.99

🔥 EOFY SALE!

Size

HYD 50

HYD 63 (+AU$49.00)

HYD 75 (+AU$99.00)

HYD 90 (+AU$214.00)

HYD 110 (12mts) (+AU$103.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Spiral Wrap Hose Protection Large Sizes

Store/High Pressure Hose for Hydraulics 1, 2, 4 or 6 wire/Hose Burst Protection Sleeve & Spiral Wrap

Product Details

Weight: 17.00 kg

As a general rule if sized correctly you need to allow 20% more wrap length than the length of the product you are wrapping.
This is a top-quality product we have installed on thousands of hoses in our daily work.
We choose to use this brand as it is simply the best.
Size stated is Outside diameter. ID is stated in graph below. Check the outside diameter of your hose to choose the correct fit. This hose protection will suit most types of hydraulic hoses correctly. (Also available in 50 mt boxes in some sizes) Generally you want spiral wrap size a touch smaller than OD of your hose so it doesn't slide around. 16mm suits 1/4" two wire, 20mm suits 3/8" two wire, 25mm suits 1/2" two wire, 32mm suits 3/4" two wire, etc

OD mm	ID mm	Length (meters)	Size/Box (CM)	Weight/Box (Kg)
HYD-9 7		25	.38 x .38 x .13	3.98
HYD-12 10		50	.38 x .38 x .13	2.56
HYD-16 13		20	.38 x .38 x .13	2
HYD-20 17		20	.38 x .38 x .13	2.3
HYD-25 21		20	.38 x .38 x .13	3
HYD-32 27		20	.38 x .38 x .20	4.1
HYD-40 35		20	.38 x .38 x .34	5.85
HYD-40 35		50	.58 x .58 x .34	14.65
HYD-50 45		20	.58 x .58 x .20	8.84
HYD-63 58		20	.58 x .58 x .34	13.5
HYD-75 69		20	.75 x .78 x .36	17
HYD-90 82		20	.75 x .78 x .36	20.45
HYD-110 100		12	.75 x .78 x .36	17.8

As with our smaller sizes, this product is temperature resistant from -40°C to 138°C and is Certified FRAS (Fire Resistant Anti Static) as well as MSHA (Mine Safety Health Administration).

These are our larger sizes of spiral wrap and because of this, they start to get both heavy & bulky, hence price stated is for...
'Pick up only' from Gold Coast.
We will need you to call or email us for a shipping quote as Freight is not free
This is necessary to give you the best deal freight-wise, our website cannot work out freight automatically for large items. (07) 5563 1982 email sales@mhfgc.com.au
Below are the weight, dimensions & meters per box. Meters vary in size. We also have a listing for sizes HYD 9 up to HYD 40
