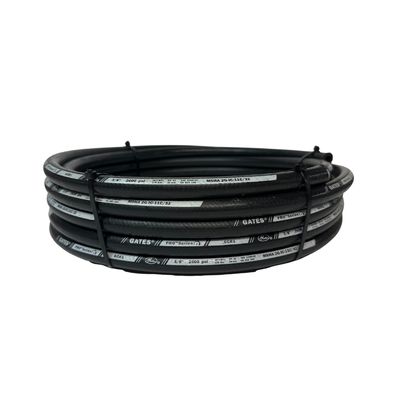

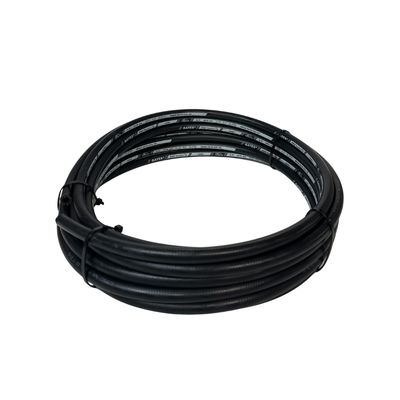

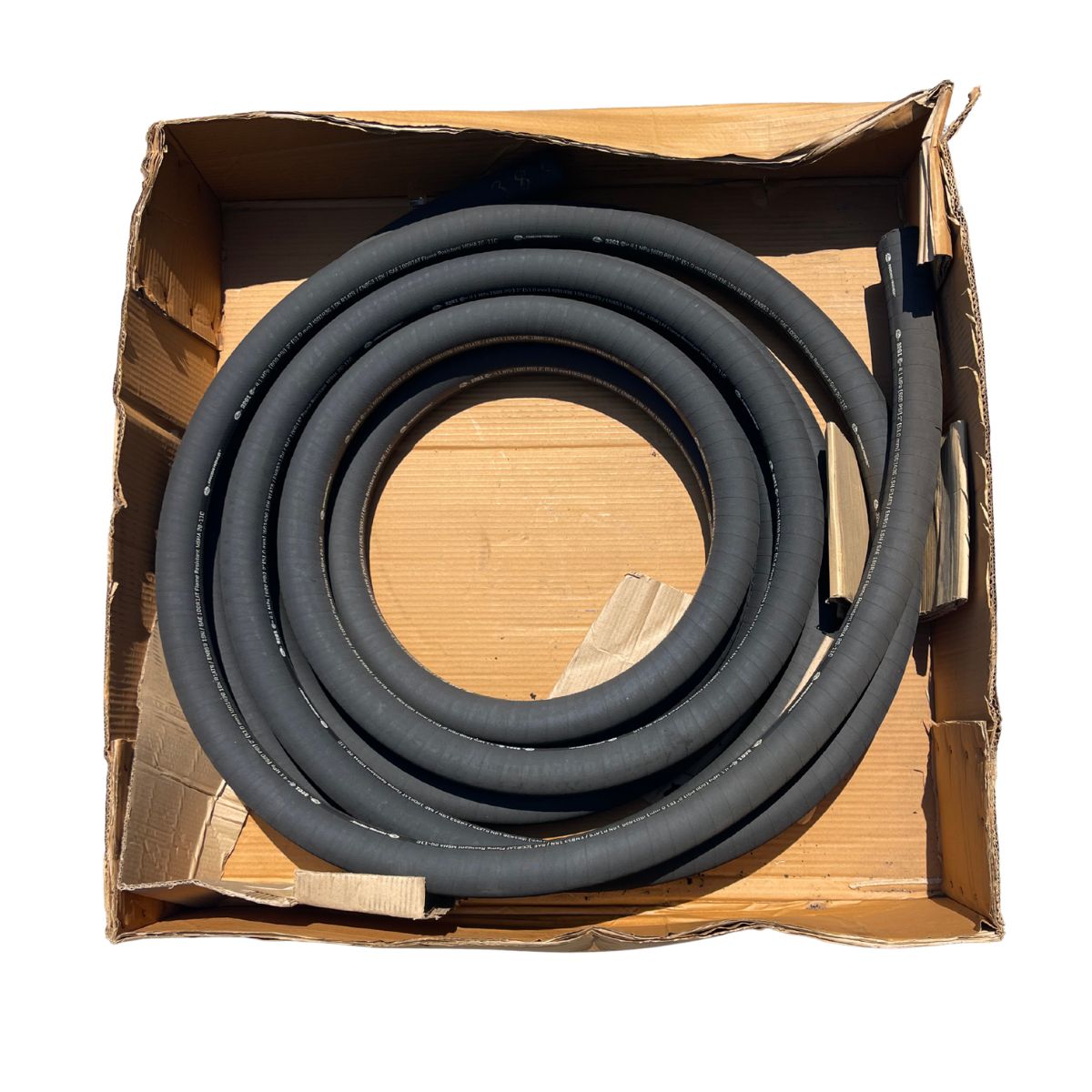

GATES® G1 HYDRAULIC HOSE

PRODUCT SPECIFICATIONS:

• TUBE: Black, oil resistant, synthetic rubber tube
• REINFORCEMENT: One layer of braided high-tensile steel
• COVER: Black, abrasion resistant, synthetic rubber
• CERTIFIED: MSHA Flame Resistant
• TEMPERATURE RANGE: -40ºC to +100ºC (-40ºF to +212ºF)

ID (inch): 1.1/4"

WP (psi): 925

Burst (psi): 3,700

Min. Bend Radius (inch): 16.00"

Standard Reel Length: 36.57 Metres

The GATES® G1 Hydraulic Hose – 1.1/4" is designed to deliver reliable performance in medium-pressure hydraulic applications. With a working pressure of 925 psi and a burst pressure of 3,700 psi, this hose provides dependable strength and safety across a wide range of systems.

Built with a black, oil-resistant synthetic rubber tube and reinforced by a single braided layer of high-tensile steel, the G1 hose combines flexibility with durability. Its abrasion-resistant synthetic rubber cover extends service life, even in harsh operating environments.

Certified as MSHA flame resistant, this hydraulic hose ensures compliance with strict safety standards and performs consistently in extreme temperatures from -40ºC to +100ºC. Trusted across construction, agriculture, mining, and industrial applications, the GATES G1 hose is engineered for operators who demand both reliability and value.
