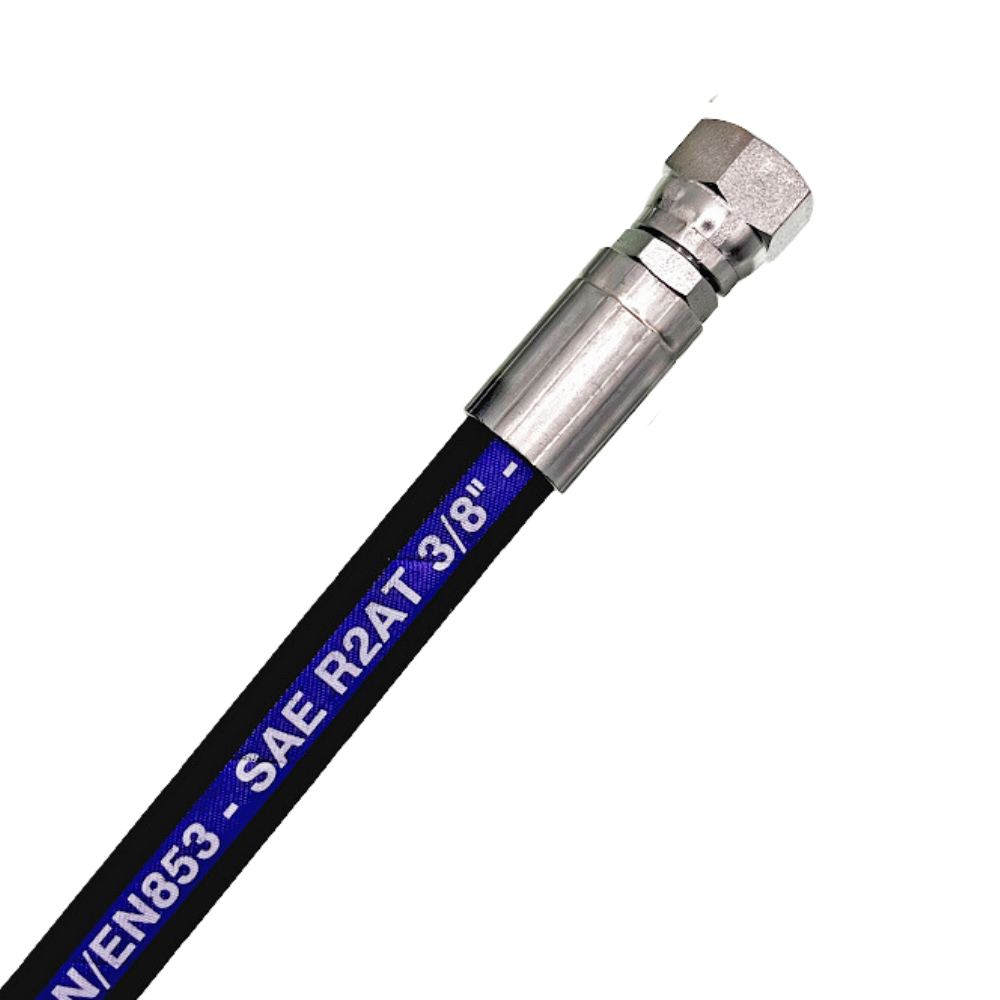

3/8" inch ID Hydraulic hose Assembly with crimped ends Custom made with your choice of BSP, JIC, or ORFS fittings and the length of your choice.

Using 3/8 inch ENGMATTEC brand two wire hydraulic hose rated to a pressure of 4,800 psi (330 bar) with crimped on one or two piece hose ends in the thread of your choice.

Threads available are BSP, JIC and ORFS in straight Female or Male and 90 degree swept bend elbow made to the length of your choice.

Size & end options are in price box. If you would like a specific length made & crimped, please buy the closest size
(must be longer than you need) & message us with the overall length required.

* Always measure from the very end of the fittings on both ends ( OA ) as per photos.

Please note we cannot crimp 90° fittings to both ends as we don't know which way to face them (also known as "Orientation") as we will not know the orientation. If you must use 90 elbows at both ends we will supply a straight female with a Male / Female compact 90° adaptor of the same thread type. Prices in the Drop down Menus of hose fittings.

Please Note all female hose fittings have swivel nuts,
BSP male ends are available in Taper or Parallel threads
Taper thread will be provided unless Parallel thread is requested when ordering.

A Tapered male thread will be automatically supplied
unless you specify parallel male thread when ordering,

If you require more 45 or 90 degree adaptors please see the other listing in the links below.

BSP 90 degree Male/Female Compact Forged Steel Elbow

JIC 90 Male/Female Compact Forged Steel Elbow

ORFS Male/Female 90 degree Forged Steel Elbow

Simply choose one 90 crimped onto one end, plus a straight & use an adapter on one end.

Please see thread charts if unsure of the thread you equire.
Best way to identify a thread is to measure the matching Male thread OD.

Application

Construction Synthetic rubber tube: two braids of special high tensile steel wire reinforcement separated by synthetic rubber layer; oil, weather and abrasion resistant synthetic rubber outer cover. Application Medium to High-Pressure hydraulic lines. Suitable for petroleum based hydraulic fluids, synthetic esters, biodegradable hydraulic fluids, water glycol-based fluids, and air. For air applications above 100psi the cover should be pin pricked. Range of Temperature -40˚C to +100˚C Couplings

Need another hose size, field fit reusable fittings couplers and or adaptors for your application?

Just call us on 07 5563 1982 or 1300 1 HOSES

or email us at Click here to email us,
