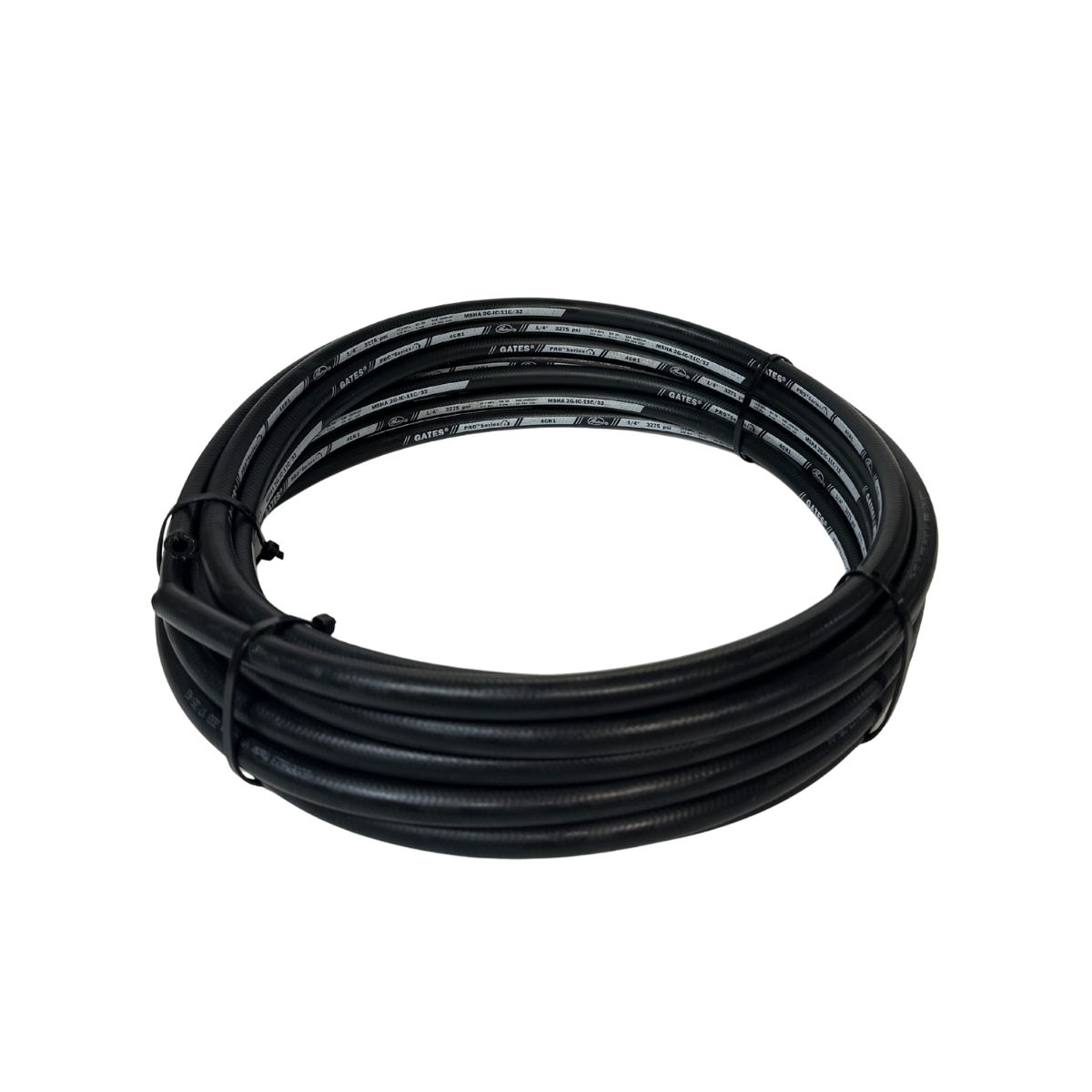

GATES® PRO™ SERIES CR1 HYDRAULIC HOSE

PRODUCT SPECIFICATIONS:

• TUBE: Black, oil resistant, synthetic rubber tube
• REINFORCEMENT: One layer of braided high-tensile steel
• COVER: Black, abrasion resistant, synthetic rubber
• CERTIFIED: MSHA Flame Resistant
• TEMPERATURE RANGE: -40ºC to +100ºC (-40ºF to +212ºF)

Description: 4CR1

ID (inch): 1/4"

WP (psi): 3,275

Burst (psi): 13,100

Min. Bend Radius (inch): 4.00"

Standard Reel Length: 134.1 Metres

Flame Resistant and reinforced with one layer of Braided High tensile steel wire.
This is a great light and flexible hydraulic hose, that is also very flexible.
It suits either crimped on one and 2 piece hydraulic Hose fittings
or our field fit reusables (pick one wire ferrules)

SAE 100R1 – 04 GATES 4CR1 Non Skive One Wire Hydraulic Hose.

This is a good quality hose made to SAE (Society of Automotive Engineers)

100R1-04 Specifications.

Construction

Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an extruded oil, Ozone, weather and abrasion-resistant synthetic rubber outer cover.

Application

High pressure service with petroleum base hydraulic fluids, water ,
Air, water-glycol, hot oil, grease, lubricants, crude and fuel oils.
For air applications above 100psi the cover should be pin pricked

Hose Specifications

Pressure Range

Working Pressure: 220 Bar (3270 PSI)

Burst Pressure: 13000 PSI (Minimum)

Range of Temperature

-40⁰C to + 100⁰C

Minimum Bend Radius

100 mm

Weight

0.22 KG / Mtr
