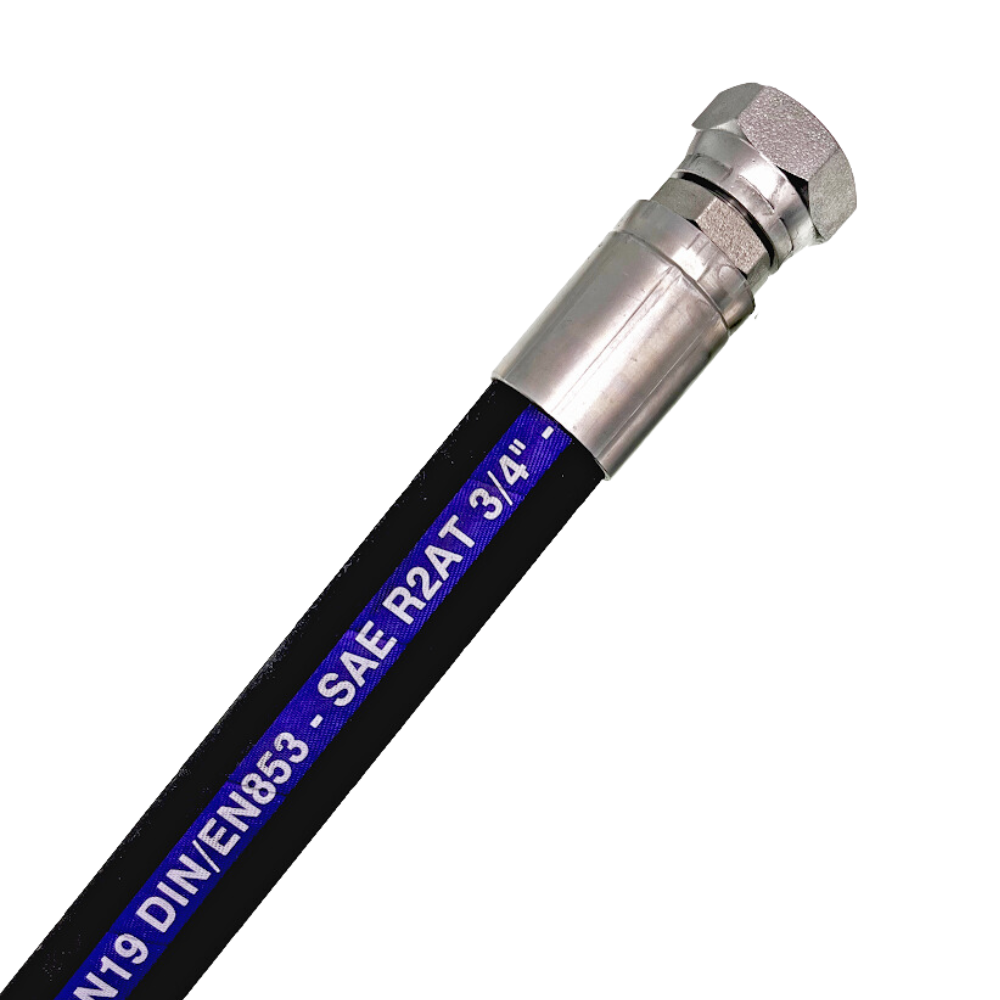

The MHSA approved hose 3/4 two wire Hydraulic Hose pressure rated to 215 Bar / 3150 psi complete with crimped on ends.

These custom hose assemblies are available with either 3/4" BSP or 1-1/16" #17) JIC Female or Male ends crimped on to your Specific requirements of hose.

BSP , 3/4" . Size & end options are in price box.

If you would like a specific length made & crimped, please buy the closest size(must be longer than you need) & message us with the overall length required.

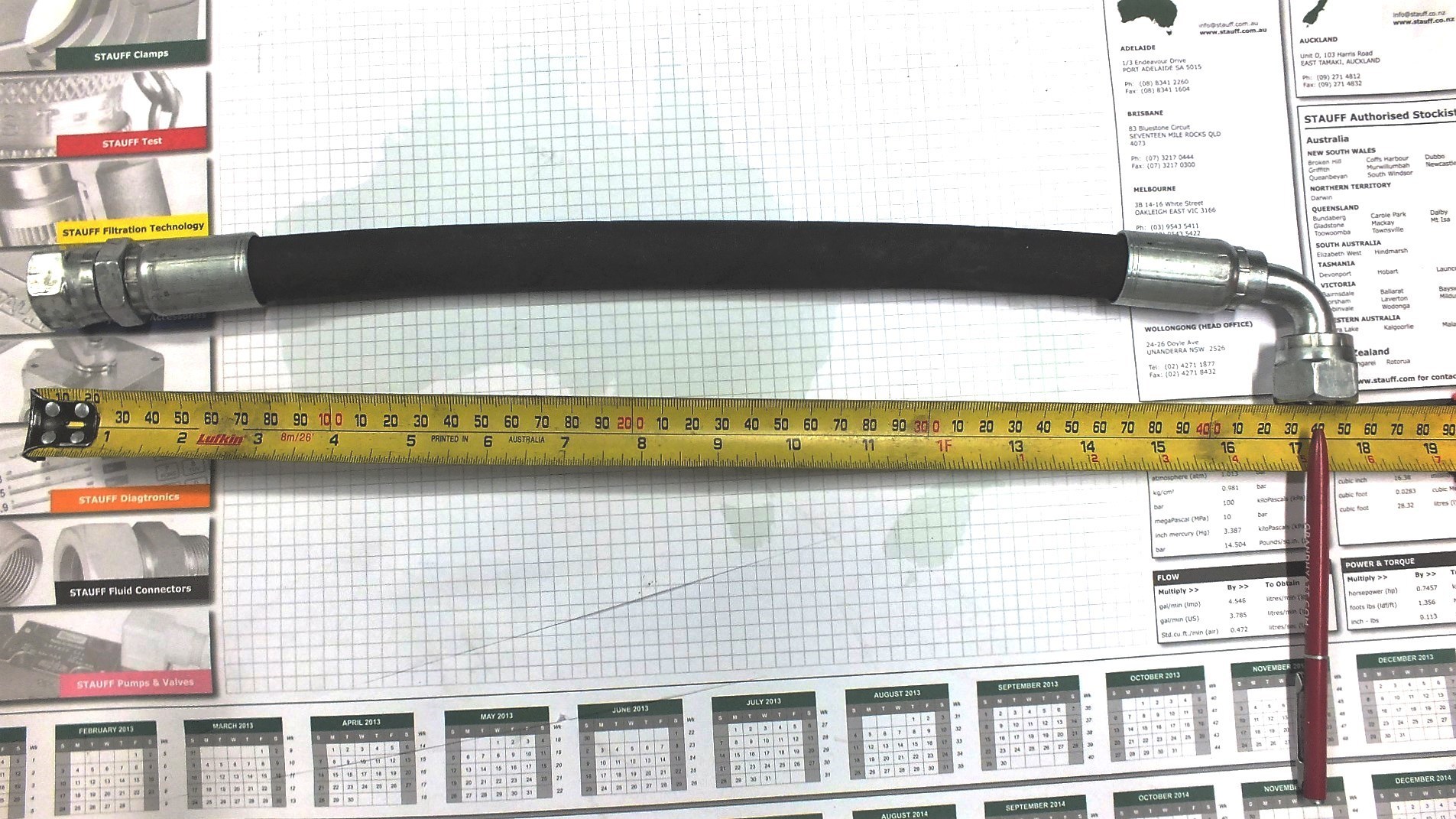

* Always measure from the very end of the fittings on both ends ( OA ) as per photos. We sell 45° & 90° adaptors in another listing. Please see thread charts if unsure of thread (in photos). Best to measure the Male thread OD

** Other threads available eg. ORFS , please message us for prices

Application

Construction Synthetic rubber tube: two braids of special high tensile steel wire reinforcement separated by synthetic rubber
layer; oil, weather and abrasion resistant synthetic rubber outer cover.
Application Medium to High Pressure hydraulic lines. Suitable for petroleum based hydraulic fluids, synthetic esters,
biodegradable hydraulic fluids, water glycol based fluids and air. For air applications above 100psi the cover should be pin
pricked.
Range of Temperature -40˚C to +100˚C
Couplings

Need another hose size, field fit reusable fittings couplers and or adaptors for your application?

Just call us on 0755 631 982, or 0431 022 452. sales@hydraulic.online
