This is a high quality Smooth Cover general purpose 2 wire Hydraulic hose is made to to meet or exceed SAE (Society Automotive Engineers) Specifications SAE 100R2-10. 5/8" inside diameter as well as European DIN EN 853 2SN Specification .

Used in both industrial or agricultural hydraulics.
Made by GATES USA with over 50 years manufacturing hydraulic products.

SAE 100R2 – 10 NON SKIVE HOSE (Two Wire)

This hose is Certified to work without failure: a minimum of 200,000 Impulse Cycles
(equivalent to almost 1000 excavator earth moving hours)
at 133% of maximum pressure (4820 psi) and at 100% of maximum temperature 100 °.

Buy it now online All GATES CR1 and CR2 hydraulic Hoses in One Place

Construction
Made with a Synthetic rubber inner tube with Two layers of braided high tensile steel wire reinforcement
and a Covered with a smooth Oil, Ozone, Weather and Abrasion Resistant synthetic rubber outer cover.

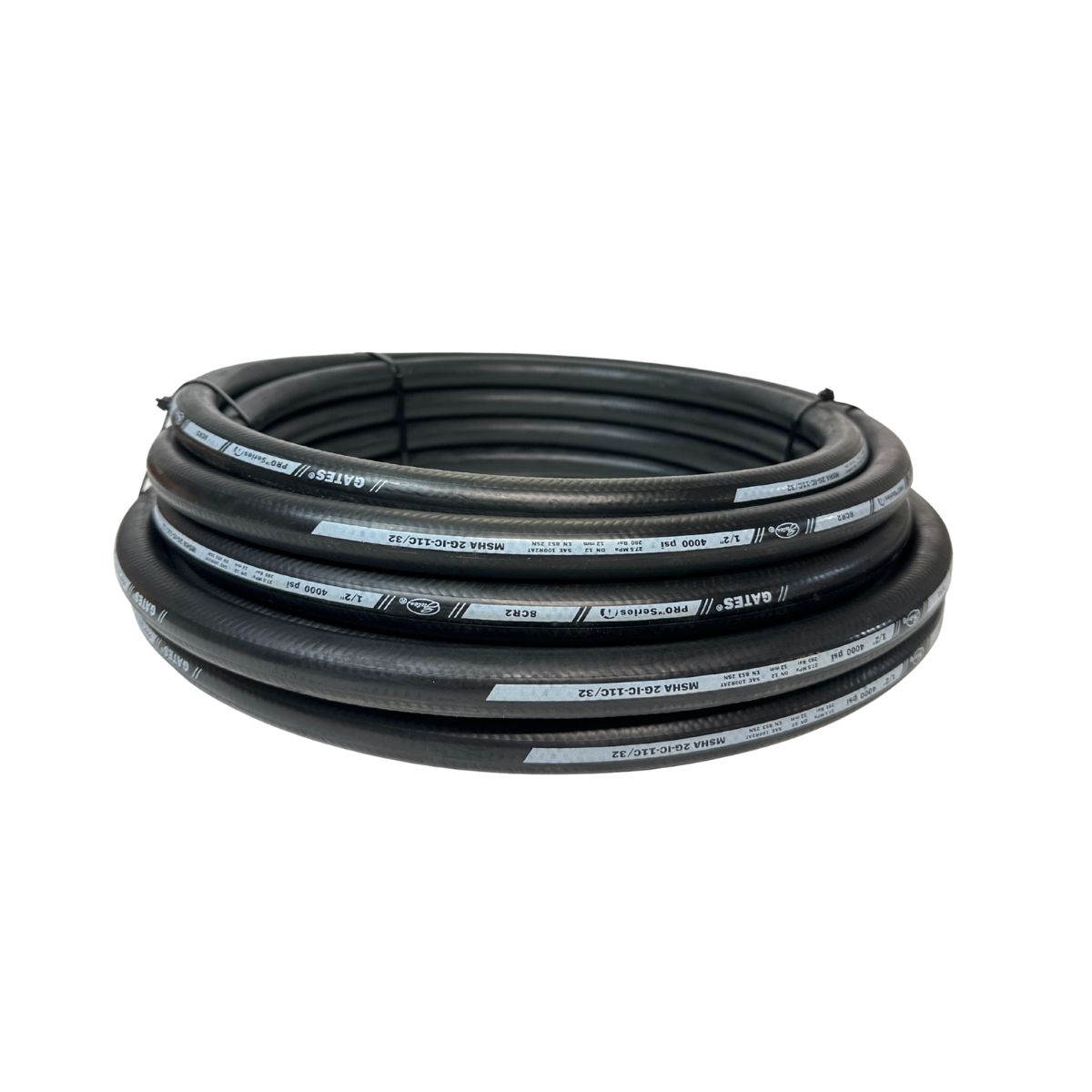

• GATES® PRO™ SERIES CR2 HYDRAULIC HOSE
• TUBE: Black, oil resistant, synthetic rubber tube
• REINFORCEMENT: Two layers of braided high-tensile steel
• COVER: Black, abrasion resistant, synthetic rubber
• CERTIFIED: MSHA and Flame Resistant
• TEMPERATURE RANGE: -40ºC to +100ºC (-40ºF to +212ºF)
• Description: 10 CR2
• ID (inch): 5/8" (15.8 mm) OD (24.9 mm)
• WP (psi): 3,625 (250 bar)
• Burst (psi): 14,500 (985 bar)
• Min. Bend Radius (200 mm)

Applications and Media

• Agriculture and Farm equipment
• Construction and Demolition
• Mining and Quarries
• Manufacturing Light Medium and Heavy
• Return Lines
• Low Flex Accessory and Auxiliary Lines
• Auxiliary Lines
• Drain Lines

For Field Fit Reusable Hydraulic Hose fittings

For Quick Release High Pressure Couplers Click here

or email us at sales@mhfgc.com.au
