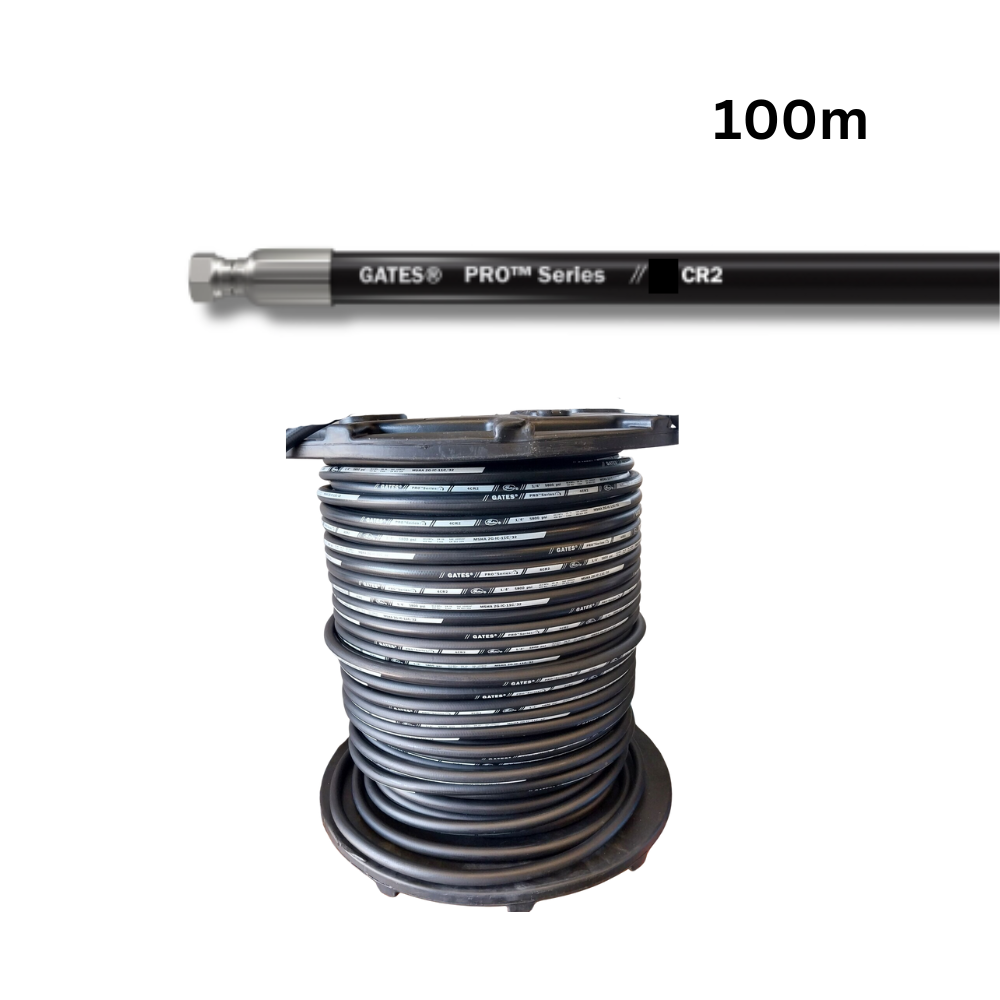

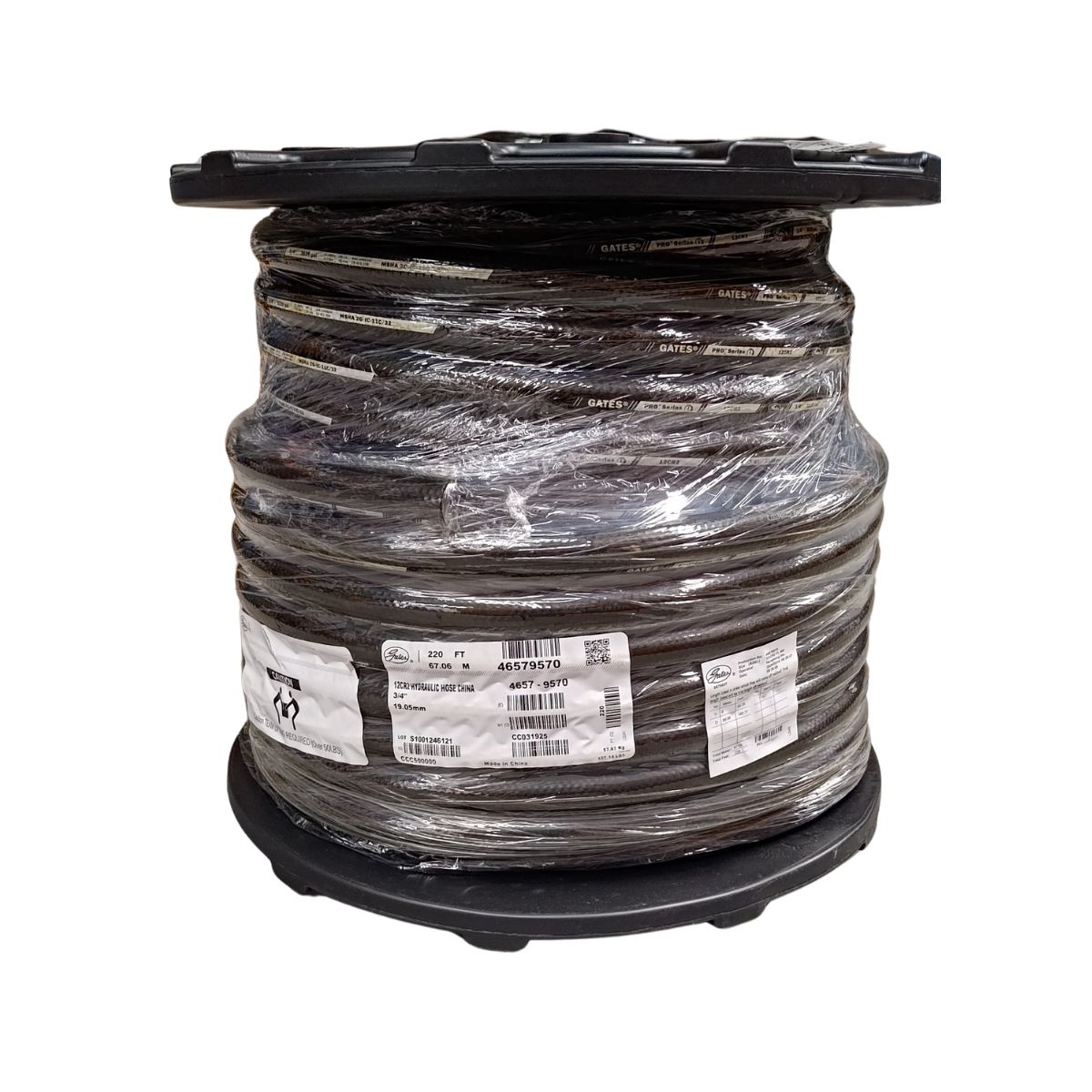

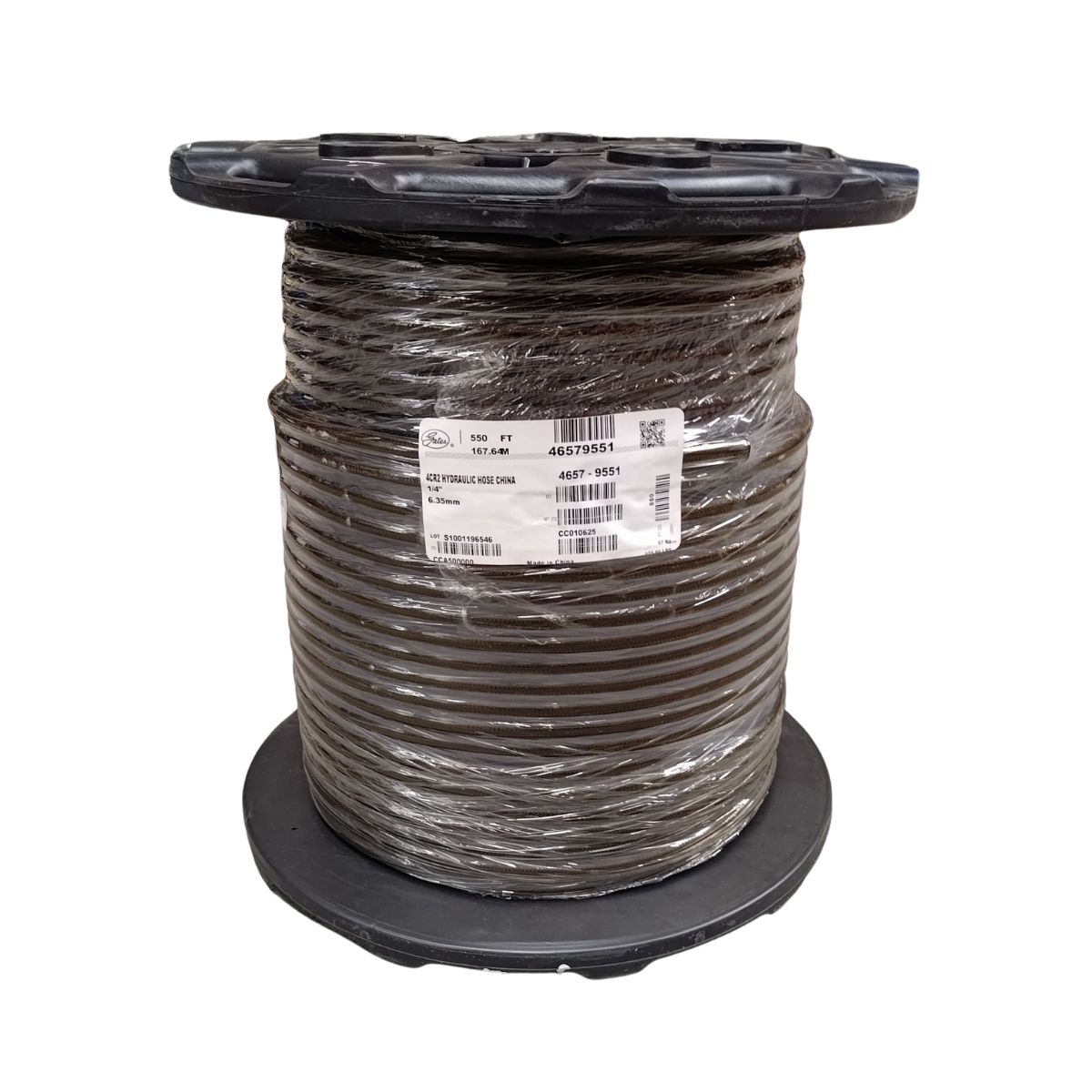

Full Reels of Gates Premium CR2 Pro Series Flexible Smooth Cover Two Wire Hydraulic Hose sizes from 1/4" to 1" inside Diameter.

GATES
Gates is CR2 Hydraulic hose is a non-skive Smooth Cover Hydraulic Hose and is compatible to German EN 853 2SN specifications
as well as American SAE 100 R2 AT Specs it is Flame Resistant and Certified and registered MSHA (Mine Safety Health Administration)

The Most Commonly used 2 wire Hydraulic Hoses Bore Sizes are as follows:

• 100R2AT 1/4" DN6,
• 100R2AT 3/8" DN10,
• 100R2AT 1/2" DN12,
• 100R2AT 5/8" DN15,
• 100R2AT 3/4" DN19
• 100R2AT 1" DN25,

Gates CR2 Pro Series Two-Wire Hydraulic Hose is compatible with all standard crimp-on and field fit fittings as well as a direct replacement for the following hose manufacturers .

EATON: GH195 AQP HI-IMPULSE hoses

MANULI FLUICONNECTO: 2SN FL2T04, FL2T06, FL2T08, FL2T10, FL2T12, FL2T16.

PIRTEK: SAE 100R2AT, SIZES R2AT-04, R2AT-06, R2AT-08, R2AT-10, R2AT-12, R2AT-16.

TIAPAN: 100R2-04, 100R2-06, 100R2-08, 100R2-10, 100R2-12, and 100R2-16

SUNFLEX MAGNUM: SAE 100 R2AT EN 853 2SN,
SIZES HYD-R2S-04, HYD-R2S-06, HYD-R2S-08, HYD-R2S-10, HYD-R2S-12, HYD-R2S-16.

RYCO: AVENGER SIZES, T24A, T26A, T28A, T210A T212A and T216A
RYCO: DIEHARD SIZES, T24D T26D T28D T210D T212D T216D Non-Skive Hoses.

ALL THE Hoses listed above can also be used with the following branded hose fittings with the following part numbers.
Our own ENGMATTEC 2 PIECE HOSE TAILS AND FERRULES ARE
AVAILABLE FOR BOTH One (1) AND Two (2) WIRE BRAIDED HOSE IN
04 - ¼”, 06 - ⅜”, 08 - ½”,10 - 5/8", 12 - ¾” and 16 - 1” .

For Example, for a 3/8" Two Wire Hose

The Following Thread sizes Types are Available in one and two Piece Options .

• JIC Male, and Female in Straights, 45 and 90 elbows.
• BSP Male, and Female in Straights, 45 and 90 elbows.
• ORFS Male, and Female in Straights, 45 and 90 elbows
• Metric Light and Heavy, in Male, and Female in Straights, 45 and 90 elbows

ALL AVAILABLE WITH OUR OWN ENGMATTEC Crimp on NO SKIVE Ferrules

Click Here to View our Range Economical Two Piece Fittings

Click Here to View our One Piece Hydraulic Hose Fittings Range.

Contact us for stock and or Crimp Dimensions.

Please note for lengths greater than 20m one or more cuts may be used to make up the full length,
please let us know if you require a continuous length and we will do our best to accommodate

Gates CR2 Hose is also compatible with the following hydraulic hose fittings.

Ryco bitelok one-piece crimp non-skive t200 and t700 hose tails.

Ryco field attachable l00 series loo-12 ferrules and 600 series inserts.

Eaton TTC / z series braided hose one-piece "bite the wire" style hose fittings.

Southcott super crimp s series stems with FNP-04, FNP-06, FNP-08, FNP-12 ferrules

As well as ezi-crimp non-skive one piece series e fittings.

Child field fit couplings series RMB, RFB, TMJ, FFJ, with BN2-06 non-skive bodies.

Taipan K series one piece non-skive hose tails
K12JF, K12JM and K12BF, K12BM or
field attachable D series eg D12 tails and D2 series bodies eg D2-12 body.

Construction
Synthetic rubber inner tube with two layers of braided high tensile steel wire reinforcement
and a wrapped, oil, ozone, weather, and abrasion-resistant synthetic rubber outer cover.

Typical Compatible Applications
High-pressure service with petroleum base hydraulic fluids, Hot and Cold water, water-glycol, water-oil,
Compressed Air, Fire-resistant hydraulic fluids, hot oil grease, lubricants,
Crude and fuel oils. For air applications above 100 psi, the cover should be pin pricked.

Need another hose size, field fit reusable fittings couplers, and or adaptors for your application?
Just contact us on (07) 5571 6155, (07) 5563 1982
