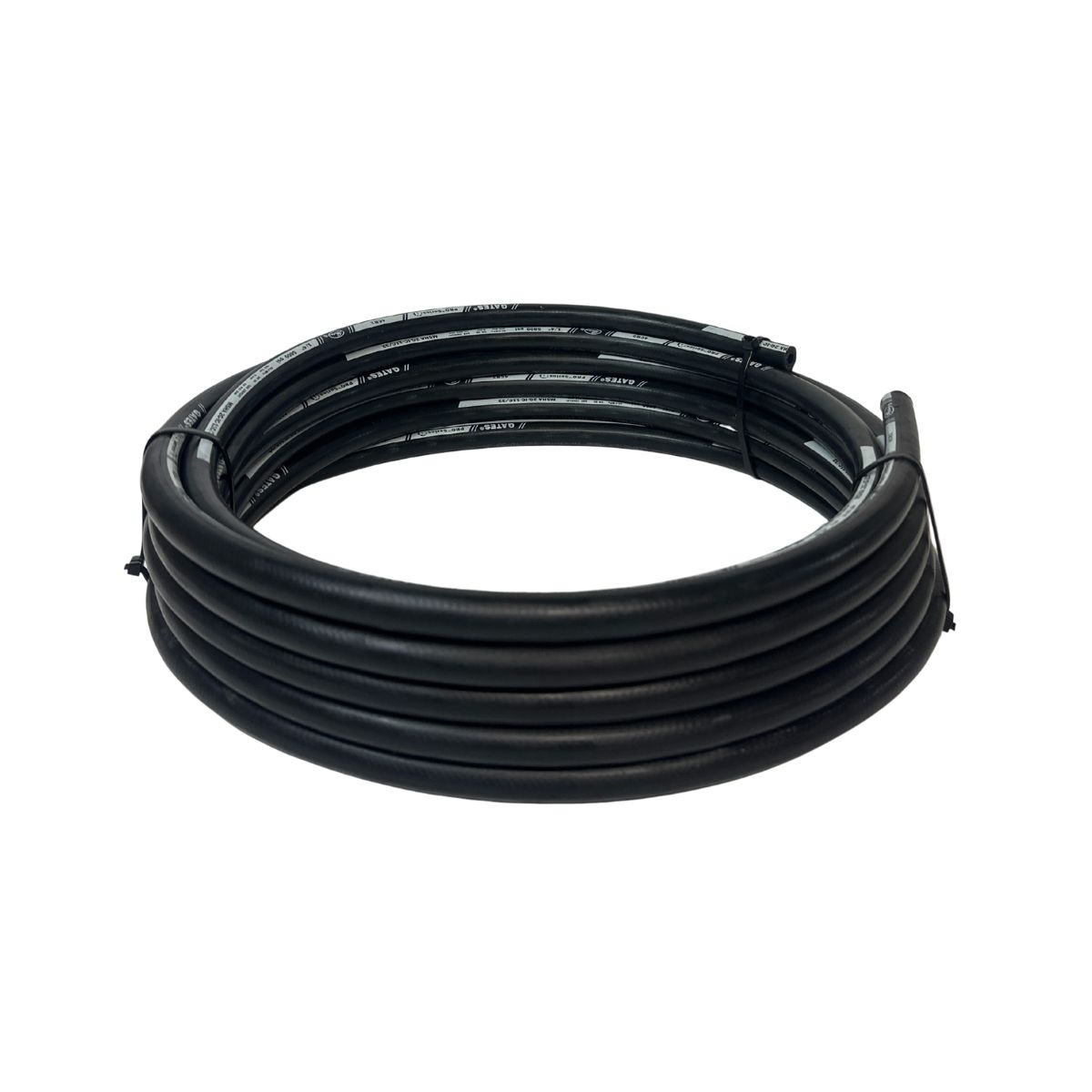

Various Lengths of premium quality GATES ® Pro Series 4CR2, 1/4"inch Inside Diameter two wire Hydraulic Hose pressure rated to 400 Bar (5,800 PSI) working pressure, Flame Resistant and MHSA Certified (Mine Safety Health Administration)

Available in 10, 20, 50m coils and 167m Reel.

Click to view GATES® CR2 Pro Series Hydraulic Hose Official Spec Sheet

Gates two-wire hydraulic hoses are fully compatible, interchangeable, with most other hydraulic hose brands and types.
Compatible with our swage / crimp on one and two piece hydraulic Hose fittings or re usable hose tails.

.Looking for a Cost Effective Portable Hose Crimper with Big Capabilities Click Here

Clink the link below to see all the details and available sizes of GATES CR1 and CR2 Hydraulic Hoses.

Buy it now online All GATES CR1 and CR2 hydraulic Hoses in One Place

Gates 4CR2 is a Non-Skive Hose which means the outer cover does not need to be removed before pressing or screwing on the appropriate Hydraulic Hose Fittings.

Most People Purchase and then Re-order the following four Most Common Gates

sizes of Two (2) Wire braided hydraulic hoses and these 9 sizes are as follows.

• 100R2AT 1/4" DN6,
• 100R2AT 3/8" DN10,
• 100R2AT 1/2" DN12,
• 100R2AT 5/8" DN16
• 100R2AT 3/4" DN19
• 100R2AT 1" DN25
• 100R2AT 1-1/4" DN32
• 100R2AT 1-1/2" DN38.
• 100R2AT 2" DN50

Please contact us for detailed and accurate crimp dimensions.

Gates CR2 SAE100R2AT two wire hydraulic hose is compatible with

• EATON GH195 AQP HI-IMPULSE hoses
• MANULI FLUICONNECTO 2SN FL2T04 FL2T06 FL2T08 FL2T12
• MANULI FLUICONNECTO ROCKMASTER 2SC H01030006 H01030010, H01030012,
• H01030019 (DOUBLE THIS HOSE’S BEND RADIUS, SLIGHTLY LESS WEAR RESISTANCE)
• PARKER 301SN - 4, -6, -8, -12 NON SKIVE HOSE.
• PIRTEK SAE 100R2AT,
• SIZES R2AT-04, R2AT-06, R2AT-08, R2AT-12.
• TOTAL RUBBER SUNFLEX SAE 100 R2AT EN 853 2SN,
• SIZES HYD-R2T-04-SF-S, HYD-R2T-06-SF-S, HYD-R2T-08-SF-S, HYD-R2T-12-SF-S.
• RYCO AVENGER SIZES, T24A, T26A, T28A, T212A and
• RYCO DIEHARD SIZES, T24D T26D T28D AND T212D Non-Skive Hoses. (with slightly less wear resistance)

ALL THE Hoses listed above can also be used with the following POPULAR Brands of Hose Fittings with the following part numbers.

Our own EngMatTec EMT 2 Piece Hose Tails and Ferrules are Available for Both One (1) and Two (2) Wire Braided Hose in the following sizes,

04 - ¼”,

06 - ⅜”,

08 - ½”,

10-5/8",

12 - ¾”,

1” - 16,.

Contact us for stock and or Crimp Dimensions.

https://www.hydraulic.online/store/

Specifications

Construction
Synthetic rubber inner tube with one layer of braided high tensile steel wire reinforcement and an oil, Ozone, weather and abrasion-resistant synthetic rubber outer cover.
Application
High-pressure service with petroleum base hydraulic fluids, water, Air, water-glycol, hot oil, grease, lubricants, crude, and fuel oils. For air applications above 100psi, the cover should be pin pricked

Hose Specifications
Pressure Range
Working Pressure: 400 Bar (5800 PSI)
Burst Pressure: 23200 PSI (Minimum)
Range of Temperature -40⁰C to + 120⁰C
Minimum Bend Radius 100 mm
Weight 0.35KG/Mtr
