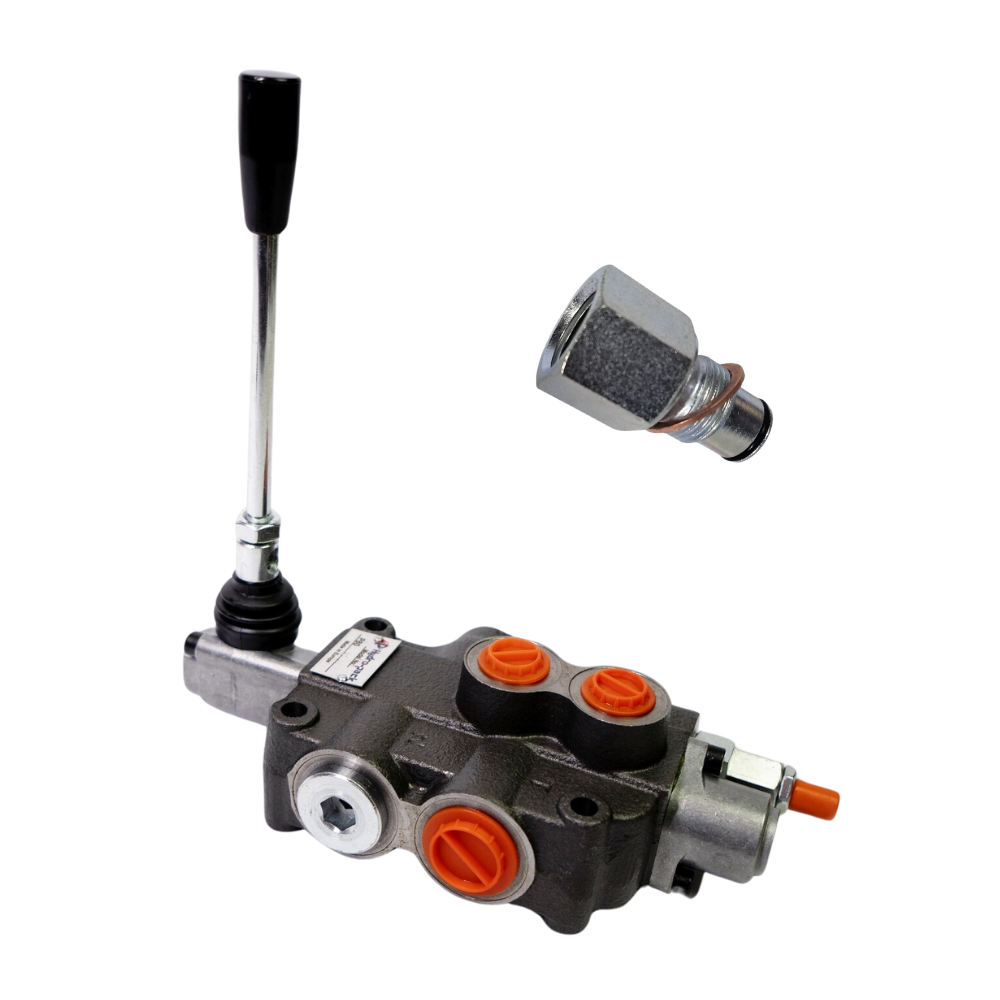

Float spool Directional Flow Control Valve BSP Ports 1 Spool 80 Lpm Monoblock EUROPEAN MADE
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves
Product Details
Weight: 5.00 kg
Hydraulic 1 Spool 80Lpm Directional Flow Control Valve Monoblock EUROPEAN MADE
This is a brand new high quality, made in Europe directional control valve, it is designed for any application where you need to control 1 individual function or cylinder with an Float position spool.
It is designed for Front end Loaders, tractors, or any application where you need to control one function or cylinder. It has a 'float' function on one spool with detent, which means your Blade will 'skim' the ground. It is a 'four' position lever, up, down, center plus all the way down is detent 'float'. The oil is open to the tank in this position allowing your blade to rise & fall freely with the contours of the ground.
Specifications
The ports are 1/2" Bspp A & B, P & 3/4" Bspp T thread. There is a 'power beyond' port ('N'), which can be used as a pressure line if you ever wish to mount another valve downstream. There is an option for a power beyond sleeve(3/4" BSPP out) . This needs to be inserted into the power beyond port to make this port open. If using this function, a tank return line MUST still be fitted!
Detent (lever stays up or down on its own) can be fitted, see options
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1 x Double acting with Float position detented
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 80liters/min
Max Working Pressure = 300 Bar (4750 PSI)
Spool Movement = Lever action, Spring Return to Center.
Detent Kits also available
Built in Relief Valve = Adjustable (factory set at 180 Bar)
Ports Sizes
Tank return Port 3/4" BSPP
Pressure A & B , P Ports 1/2 " BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions =
Weight 4.5kg
Specifications
Many types of adaptors threads, hydraulic hose and field fit hose fittings are available please see our other listings.
This a High Quality Valve and has many outstanding features, including.
- built in adjustable relief valve
- high performance,
- high efficiency,
- small volume,
- mass flow,
- leak resistance.
In additional to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic and or remote control methods are also available including.
- Motor Spool
- Detent kit no spring return
- Detent kit with spring return
- Pneumatic spool control,
- Hydraulic ControlFeatures
- Compact construction.
- Low pressure drop.
- Long service life.
- High efficiency.
- Choice of various ports and circuit valves.
- Spring return.
- High accuracy spool is hardened for long term accuracy.
- Sub-plate mounting.
- Handle shift operation.
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.- RL 11.4.24
